2.8 Connection to the line
• Connect microscope socket (2-21/1) to the line
socket via a line cable. The microscope can be
connected to line voltage between 90 and 264
VAC, 50 - 60 Hz.
The microscope is equipped with a wide-area
power unit which automatically adapts to the
available line voltage. Voltage change is not
required.
The N HBO 103 illuminator (for epi-fluorescence) is
supplied via a separate power supply.
• The power supply ebq 100 dc must be
connected to the line via the line socket
(2-22/1) (also see section 2.13.3, "Attachment
of illuminator N HBO 103").
The ebq 100 dc is equipped with a wide-area
power unit which automatically adapts to the
available line voltage. Voltage change is not
required.

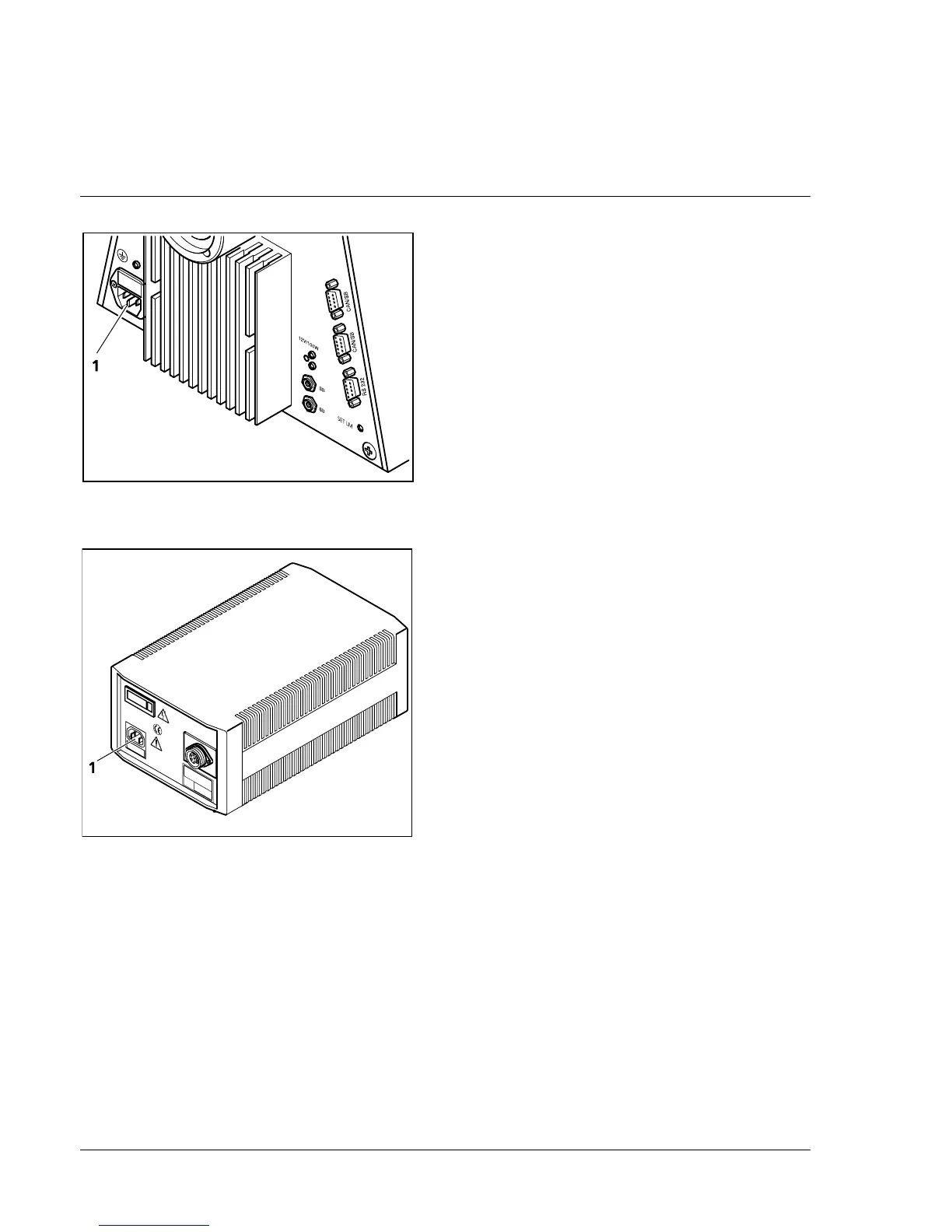

Fig. 2-21 Axiovert 200 M (rear)
Fig. 2-22 Power supply ebq 100 dc
(rear)
