Zeiss i.Profiler plus - Calibration Touch Screen; Connection of an External Monitor

Installation
000000-1520-928_GA_EN_021013
23

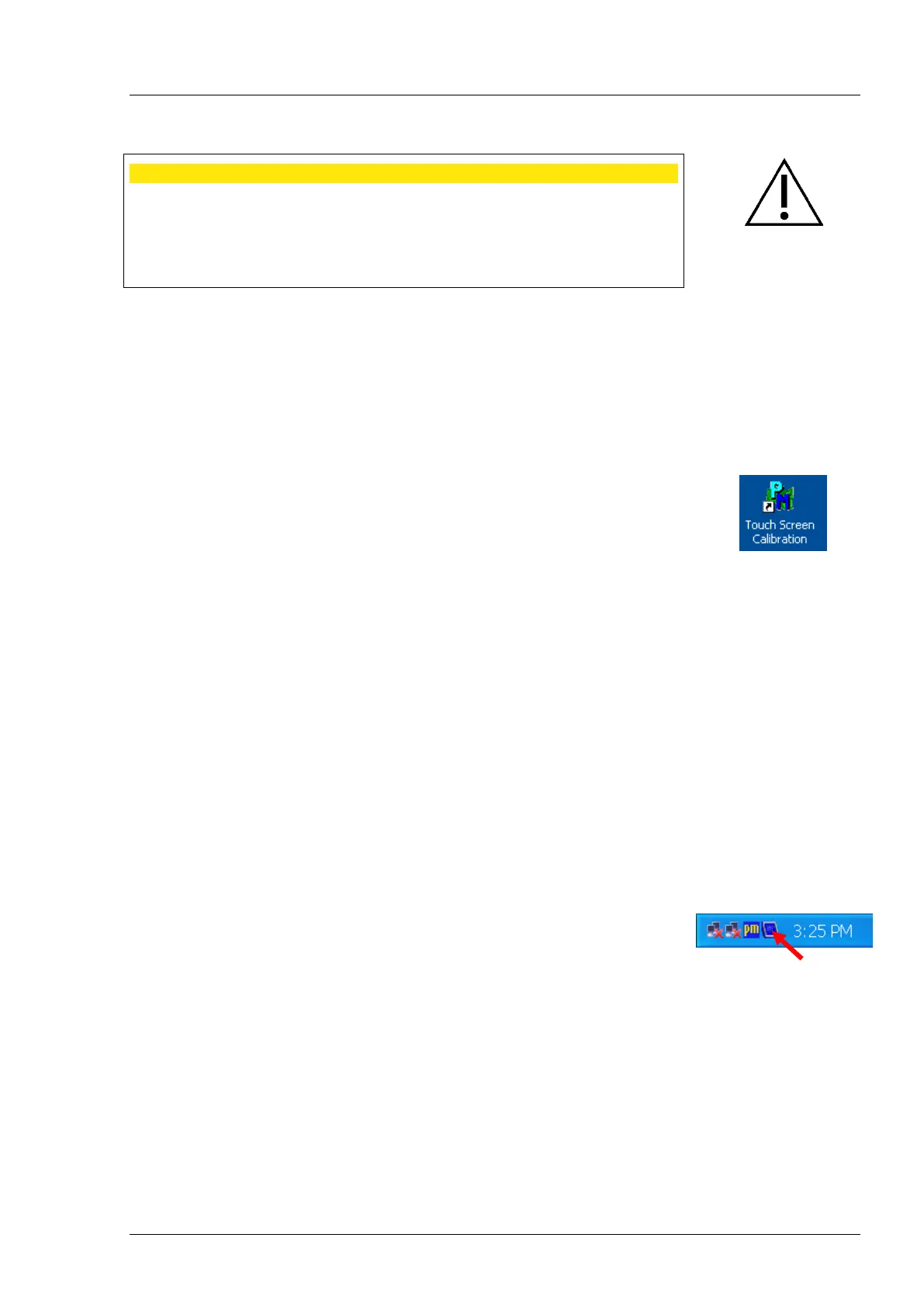

CAUTION - RISK OF OPERATING ERRORS
Only software authorized by Carl Zeiss may be used on this device.
The device may only be connected to networks which are protected from
public networks (Internet) by firewalls conforming to the latest technical
standards!
Calibration touch screen
• After the start, quit the i.Profiler
® plus
software by pressing the Close
Application button in the Shut Down window and switch to the
Microsoft Windows desktop (administrator rights required).
• Double-click on the Touch Screen Calibration icon on the desktop.
• Click the Standard Calibration button on the Calibrate tab.
• Follow the prompts appearing on the screen.
• Confirm the calibration by clicking on OK.
• Double-click on the Save Configurations program icon on the Microsoft
Windows desktop to save the new configuration. The device will restart.
Connection of an external monitor
• Connect the external monitor and the i.Profiler
® plus
using a VGA cable via
VGA connector for monitor (4, Fig. 9)
• Always switch on the external monitor before switching on the
i.Profiler
® plus
.
• After the start, quit the i.Profiler
® plus
software by pressing the Close
Application button in the Shut Down window and switch to the
Microsoft Windows desktop (administrator rights required).
• Click on the symbol on the right side of the task bar.
• Select Graphics Properties… from the menu bar.
• The Intel
®
Graphics Media dialog appears.
• Select "Twin" or "Intel
®
Dual Display Clone" on Multiple Display on the
Display Devices tab. Ensure that you have selected "Notebook" in the
Primary Device field and "Monitor" in the Secondary Device field.
