Zenith ADVANCED SYSTEM 3 - CABLE TV;VCR OPERATION NOTES Cable Channels

CONNECTIONS FOR YOUR TV (CONTINUED)

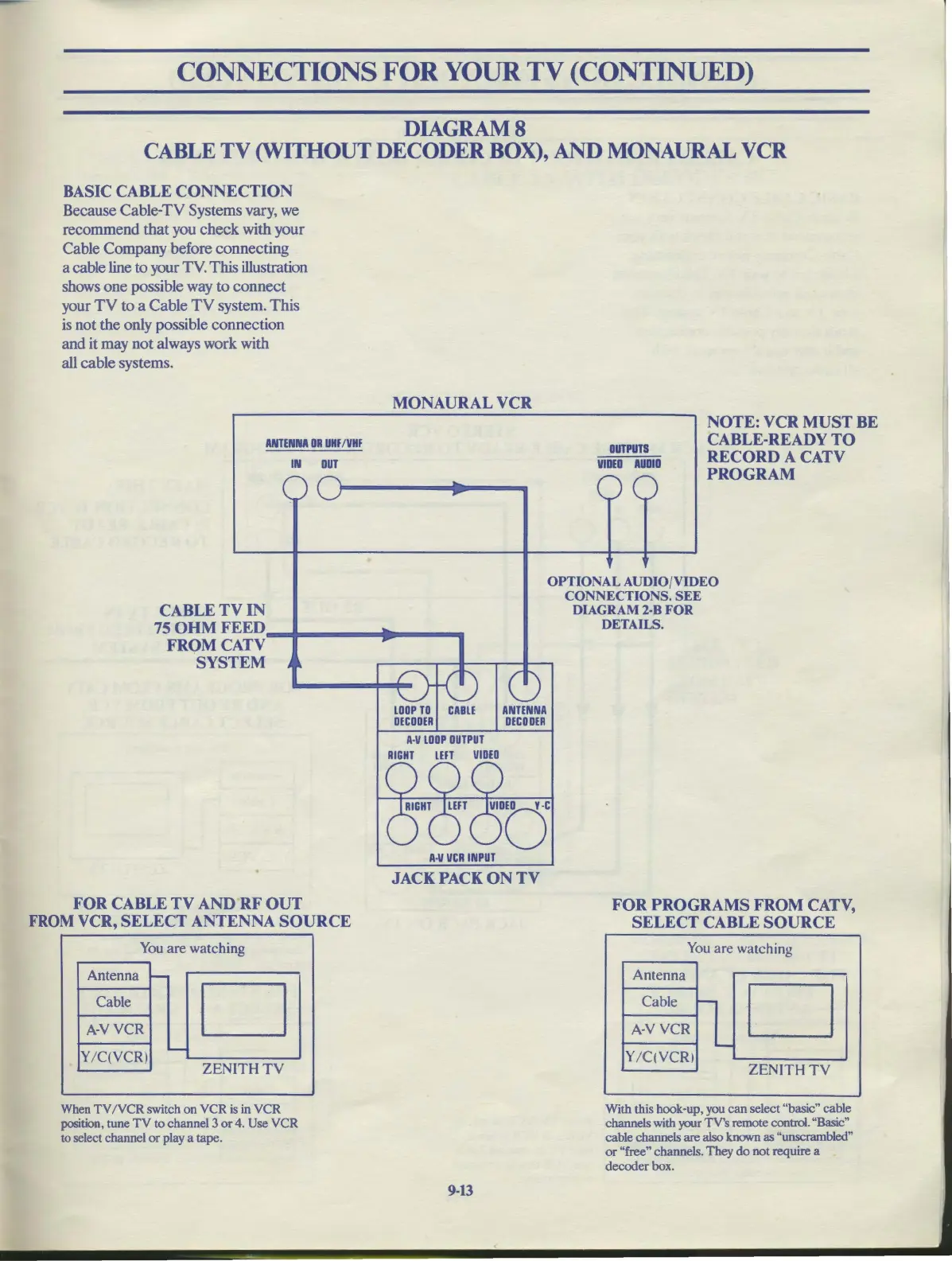

DIAGRAMS
CABLE TV (WITHOUT DECODER BOX), AND MONAURAL VCR
BASIC CABLE CONNECTION
Because Cable-TV Systems vary, we
recommend that you check with your
Cable Company before connecting
a cable line to your TV. This illustration
shows one possible way to connect
your TV to a Cable TV system. This
is not the only possible connection
and it may not always work with
all cable systems.
ANTENNA OR UHF /VHF
IN OUT
CABLE TV IN
MONAURAL VCR
75 OHM FEED_ ... _______ ..
FROM CATV
SYSTEM
FOR CABLE TV AND RF OUT
FROM VCR, SELECT ANTENNA SOURCE
You are watching
Antenna
-
Cable
D
A-VVCR
Y/C(YCR)
---
ZENITH TV
When TV /VCR switch on VCR is in VCR
position, tune TV to channel 3 or 4. Use VCR
to select channel or play a tape.
A•V LOOP OUTPUT
RIGHT LEFT VIDEO
A-V VCR INPUT
JACK PACK ON TV
9-13
OUTPUTS
VIDEO AUDIO
NOTE: VCR MUST BE
CABLE-READY TO
RECORD A CATV
PROGRAM
OPTIONAL AUDIO/VIDEO
CONNECTIONS. SEE
DIAGRAM 2-B FOR
DETAILS.
FOR PROGRAMS FROM CATV,
SELECT CABLE SOURCE
You are watching
Antenna
Cable
1
D
A-V VCR
Y/C(VCRI
ZENITH TV
With this hook-up, you can select "basic" cable
channels with your TV's remote control. "Basic"
cable channels are also known as "unscrambled"
or "free" channels. They do not require a
decoder box.
