CONNECTIONS FOR YOUR TV (CONTINUED)
BASIC CABLE CONNECTION
Because Cable-TV Systems vary, we
recommend that you check with your
Cable Company before connecting
a cable line to your TV. This illustration
shows one possible way to connect
your TV to a Cable TV system. This
is not the only possible connection
and it may not always work with
all cable systems. •
FOR SUBSCRIBED CABLE
CHANNELS, SELECT
ANTENNA SOURCE
You are watching
Antenna
-
Cable
D
A-VVCR
._
Y/C(VCR)
ZENITH TV
Tune TV to channel 3 or 4 and select CATV
programs at Cable Decoder box.
OUT CH3/4
IN

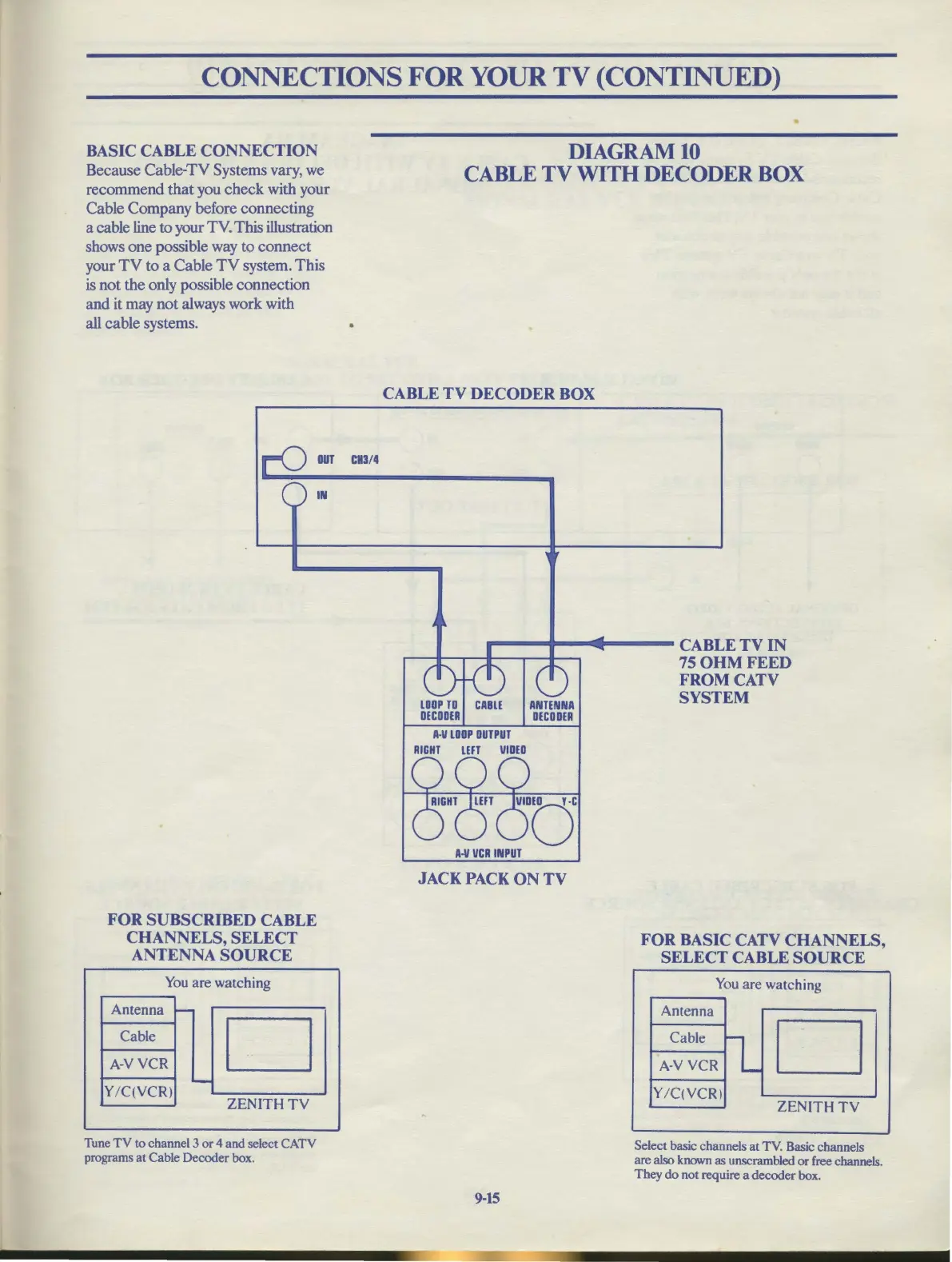

DIAGRAMl0
CABLE TV WITH DECODER BOX
CABLE TV DECODER BOX
__ _._..,...,. __ CABLETVIN
A•V LOOP OUTPUT
RIGHT LEFT VIDEO
A.V VCR INPUT
JACK PACK ON TV
9-15
75OHMFEED
FROM CATV
SYSTEM
FOR BASIC CATV CHANNELS,
SELECT CABLE SOURCE
You are watching
Antenna
Cable
n_
D
A-V VCR
Y/C(VCR)
ZENITH TV
Select basic channels at TV. Basic channels
are also known as unscrambled or free channels.
They do not require a decoder box.
