40-30 Rear Suspension
Suspension
40
6. Remove left and right inner side fairings. See
Side Fairings (Inner)
, page 60.19.
7. Remove motor controller. See Motor
Controller [Before 2022MY], page 30.27.
8. Remove motor. See Motor, page 30.1.
9. Remove left outer bearing cover.
10. Remove right outer bearing cover.
Installation
1. Installation is the reverse of the removal
procedure, but take note of the following
installation steps.

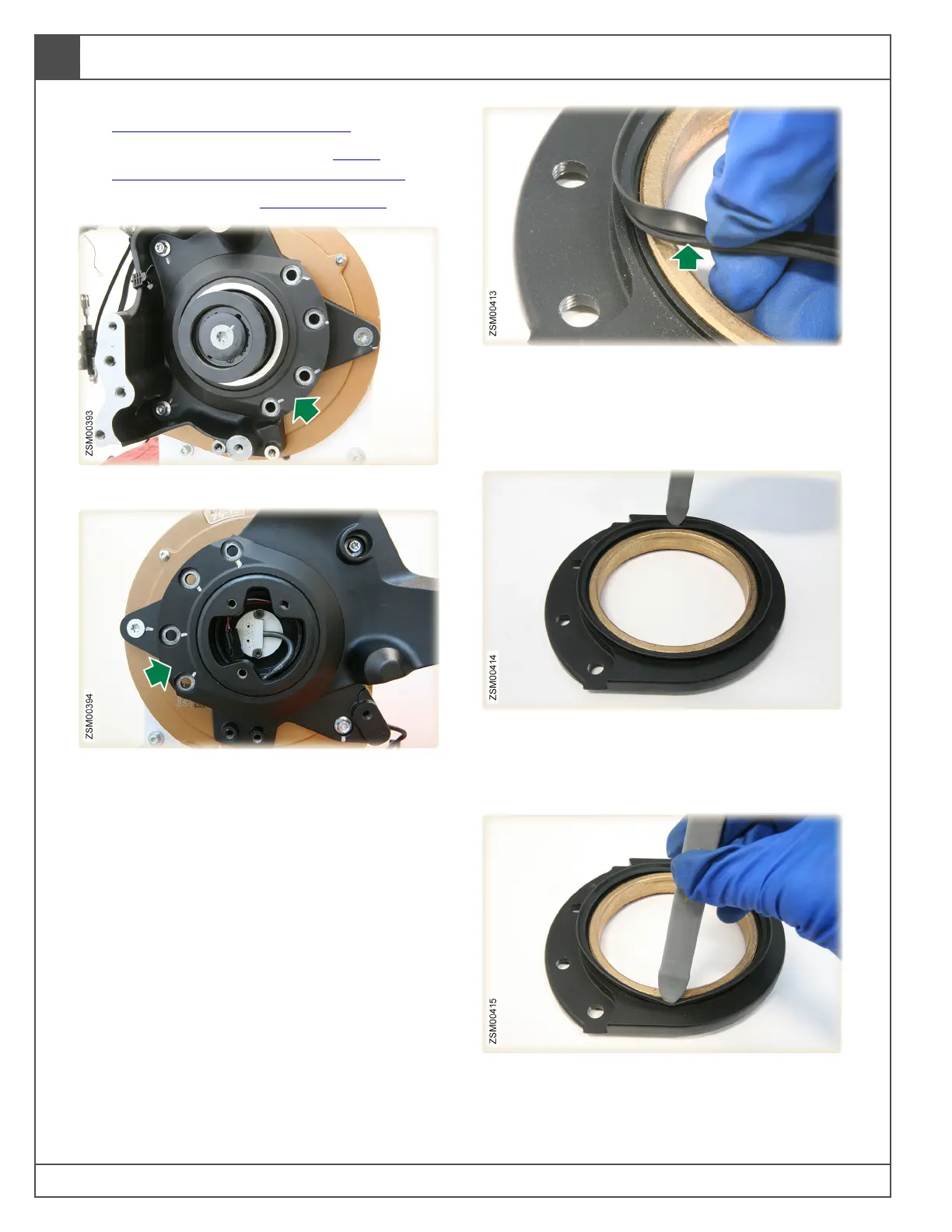

2. The inside seal for the outer bearing cover has
a rib (see arrow) on one side that must be
pressed into the seal groove in the outer
bearing cover. It must be pressed in evenly to
seal properly.
3. Thinking of the outer bearing cover as an
analog clock face, use a blunt tool to press the
seal into the groove in the cover at the 12
o’clock position.
4. Press the seal into the groove at the 6 o’clock
position.
