Headlight Upper Fairing
Tools Required (includes tools required for
parent jobs):
• T25
Removal
1. PERFORM LOCKOUT PROCEDURE: See
Lockout Procedure
, page 10.1.

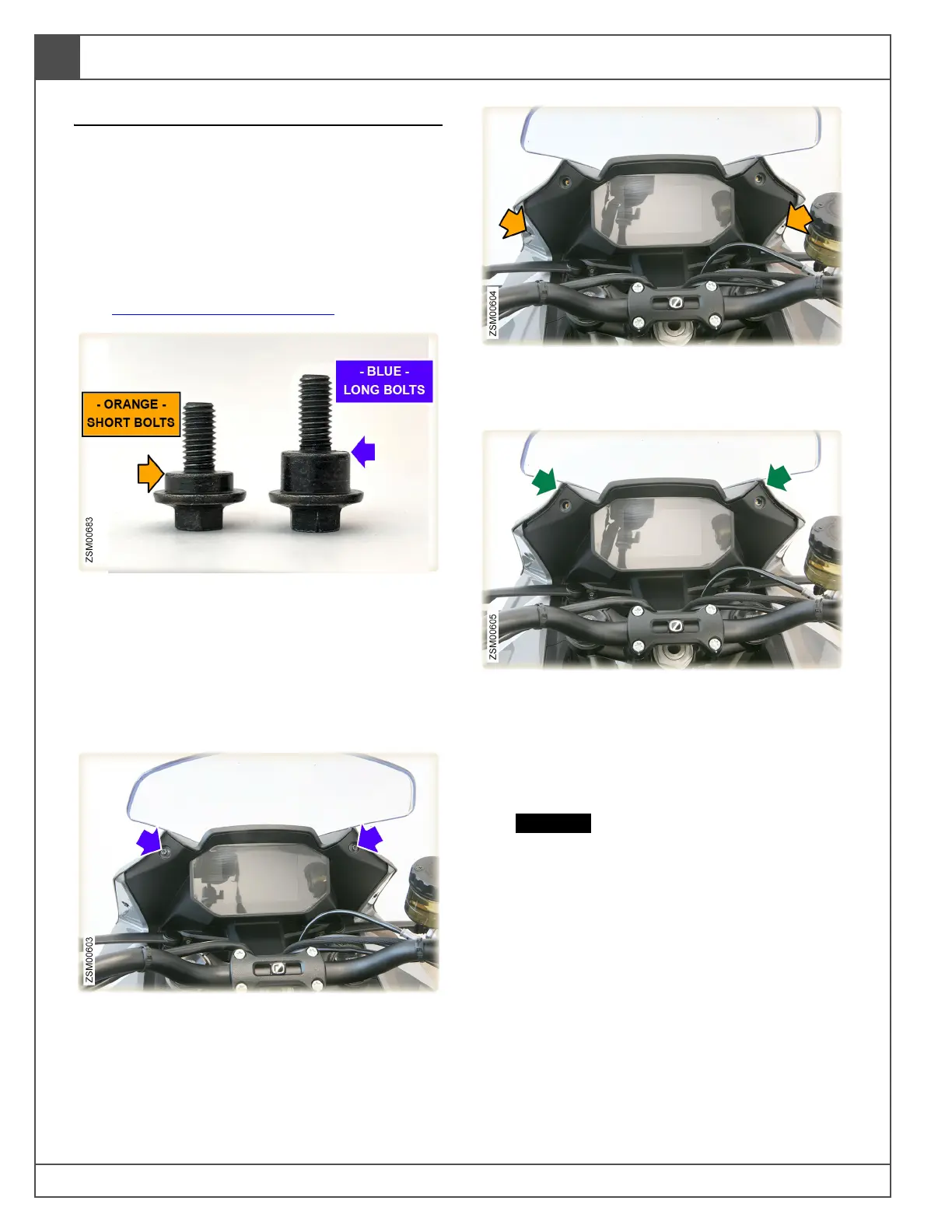

2. For this procedure, there will be references
shouldered-bolts securing body panels, that
are 2 different lengths.
Short bolts: designated on photos with an
orange arrow, attach a single body panel layer.
Long bolts: designated on photos with a blue
arrow, attach 2 layers of body panels.
3. Remove long bolts (x2) securing headlight
upper fairing to the dash center cover. Tool:
T25. Torque: Hand tight - Do not over-tighten.
4. Remove short bolts (x2) securing bottom of
headlight upper fairing to the headlight inner
fairing. Tool: T25. Torque: 3 lb-ft (4 Nm).
5. Hold headlight upper fairing securely on both
sides (see arrows) while lifting up to release
mounting tabs from bodywork.
6. Slide headlight upper fairing toward the
headlight to release the fairing from the
windscreen.
CAUTION: Headlight upper fairing has an
interference fit and requires caution not to
drop the panel when it releases from the
windscreen.
Installation
1. Installation is the reverse of the removal
procedure.
