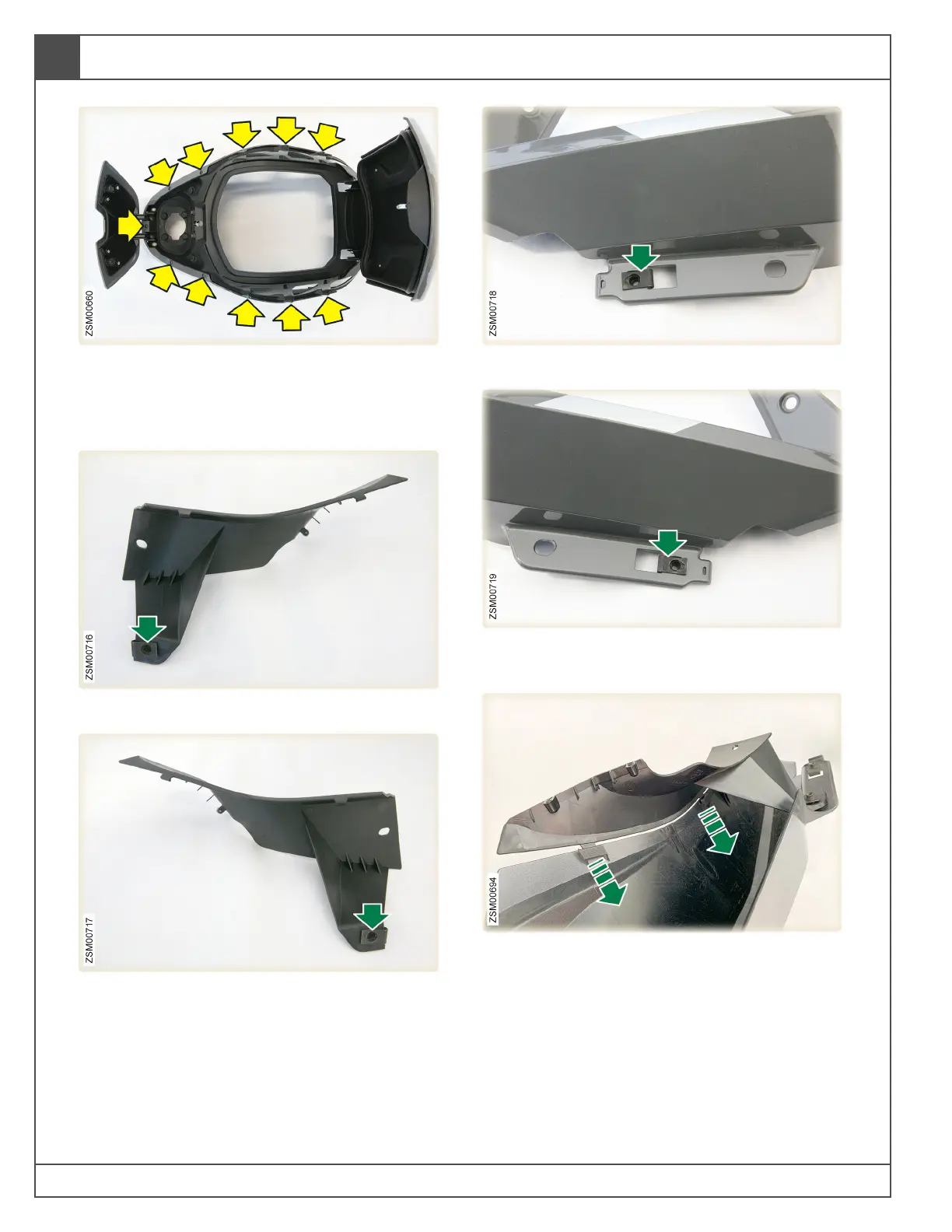

11. Install small screws (x11) securing the tank
rear to the tank collar. Tool: #2 Phillips
screwdriver. Torque: Hand tighten - Do not
over-tighten.
12. Install clip-on U-nut onto left inner fairing arm.
13. Install clip-on U-nut onto right inner fairing
arm.
14. Install clip-on U-nut onto left outer fairing arm.
15. Install clip-on U-nut onto right outer fairing
arm.
16. Insert locking tabs securing the left inner
fairing arm to the left outer fairing arm.
