30-42 Controller
Motor and Drive System
30
Motor Controller with Heatsink
[22MY Onwards]
CAUTION: Always perform the High Voltage
Discharging procedure prior to servicing any
High Voltage component or connection. Proper
procedures must be followed! To protect
electrical components, perform the following
tasks in the order given. Do not deviate from the
repair procedure processes.
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.

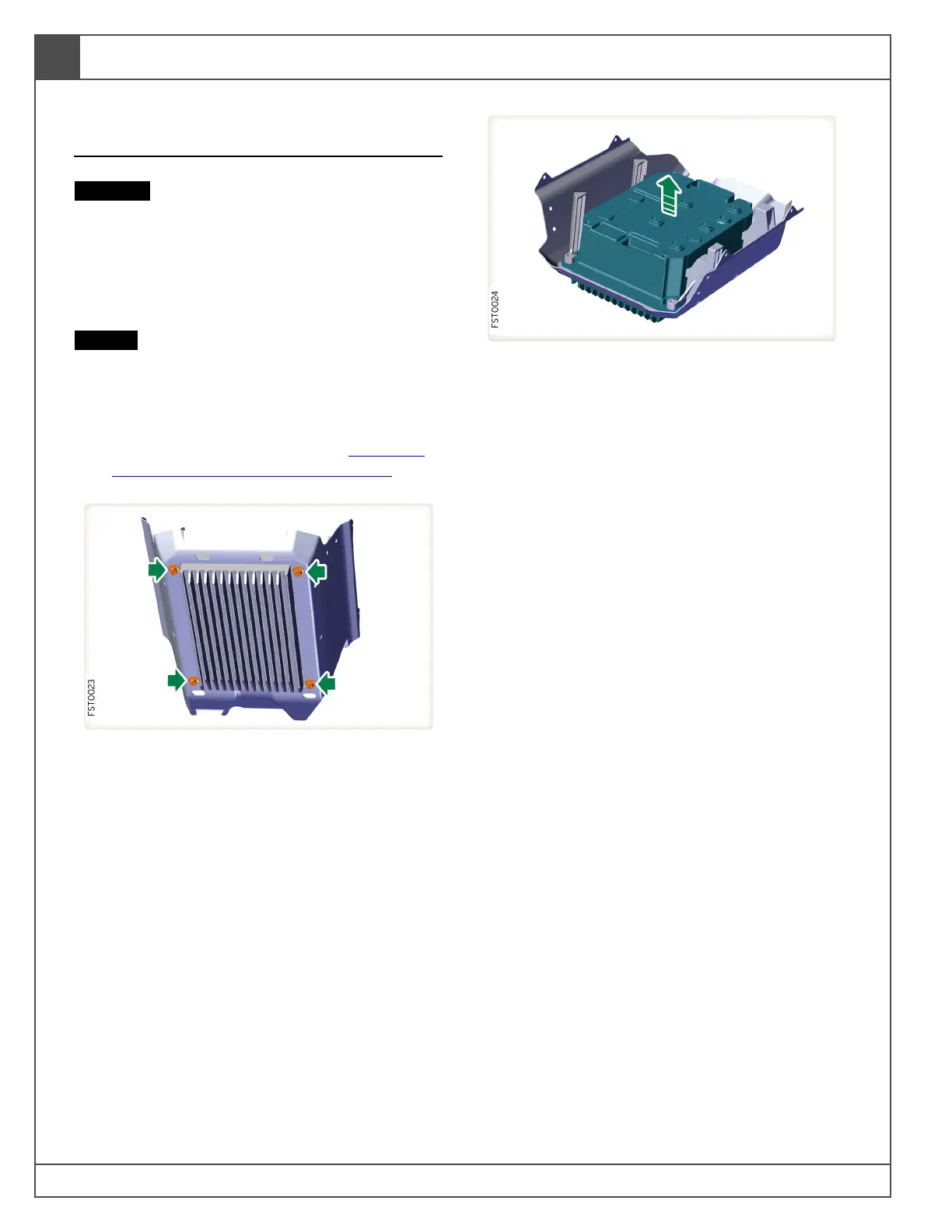

Removal
1. Remove controller BUS set. See Controller
BUS Set [22MY Onwards], page 20.39.
2. Remove bolts (x4), nuts (x4) and washers (x4)
securing controller to carrier. Torque 4 lb-ft
(5.5 Nm).
NOTE: Always record quantity and fitted
position of washers.
3. Remove controller.
Installation
1. Installation is the reverse of removal
procedure.
