Zero SR/S User Manual

Electrical
Instruments 70-19
70
Instruments
Dash
WARNING! For your safety against electric shock
and to protect electrical components, perform
the following tasks:
• Remove Low Power B+ (CONT) high voltage
fuse.
• Remove DC/DC high voltage fuse.
• Disconnect the negative lead from the 12 volt
battery.
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.
Tools Required (includes tools required for
parent jobs):
• T25
• T30
• 2mm hex wrench
• 3/16” standard screwdriver
• 10mm socket and ratchet
Removal

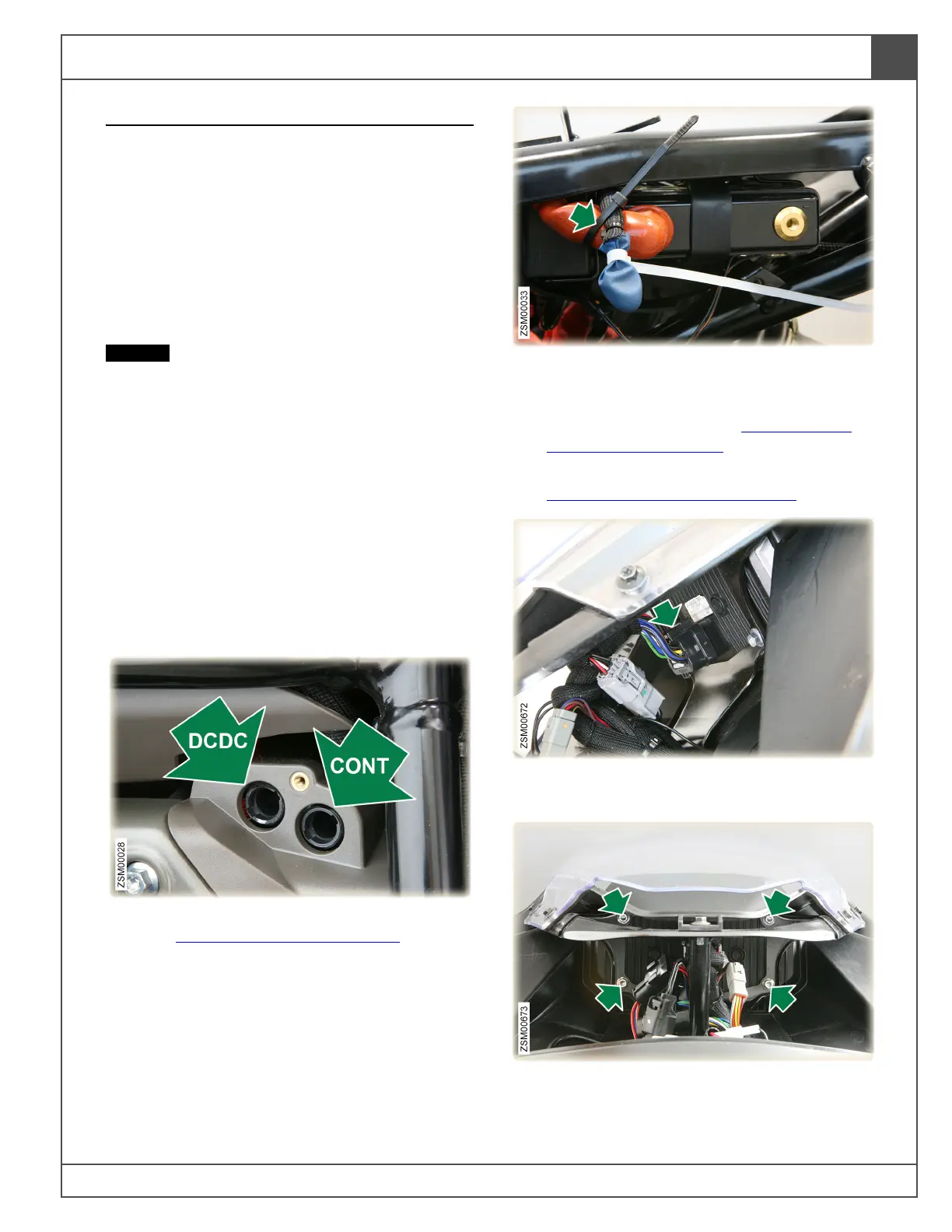

1. Remove high voltage DCDC and CONT fuses.
See High Voltage Fuses, page 70.1.
2. Unbolt the negative battery terminal eyelet.
Cover eyelet with insulating material. Use
cable tie to secure negative battery wire to the
positive battery cable. See 12 Volt Battery
(Disconnect), page 70.3.
3. Remove headlight upper fairing. See
Headlight Inner Fairing, page 60.3.
4. Disconnect dash harness connector from the
dash.
5. Remove bolts (x4) securing the dash to the
hela bracket. Tool: T25. Torque: 4.4 lb-ft
(6 Nm).

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
