Suspension
Front Suspension 40-11
40
Front Suspension
Steering Stem
Tools Required (includes tools required for
parent jobs):
• T25
• T30
• T45
• T50
• 3/16” standard screwdriver
• 2mm hex wrench
• 10mm socket and ratchet
• 13mm socket
• 41mm socket
• Adjustable hook spanner wrench
• Ratchet straps (x2)
• Hoist
New Fasteners Required:
• Cable ties (quantity: 2)
Removal

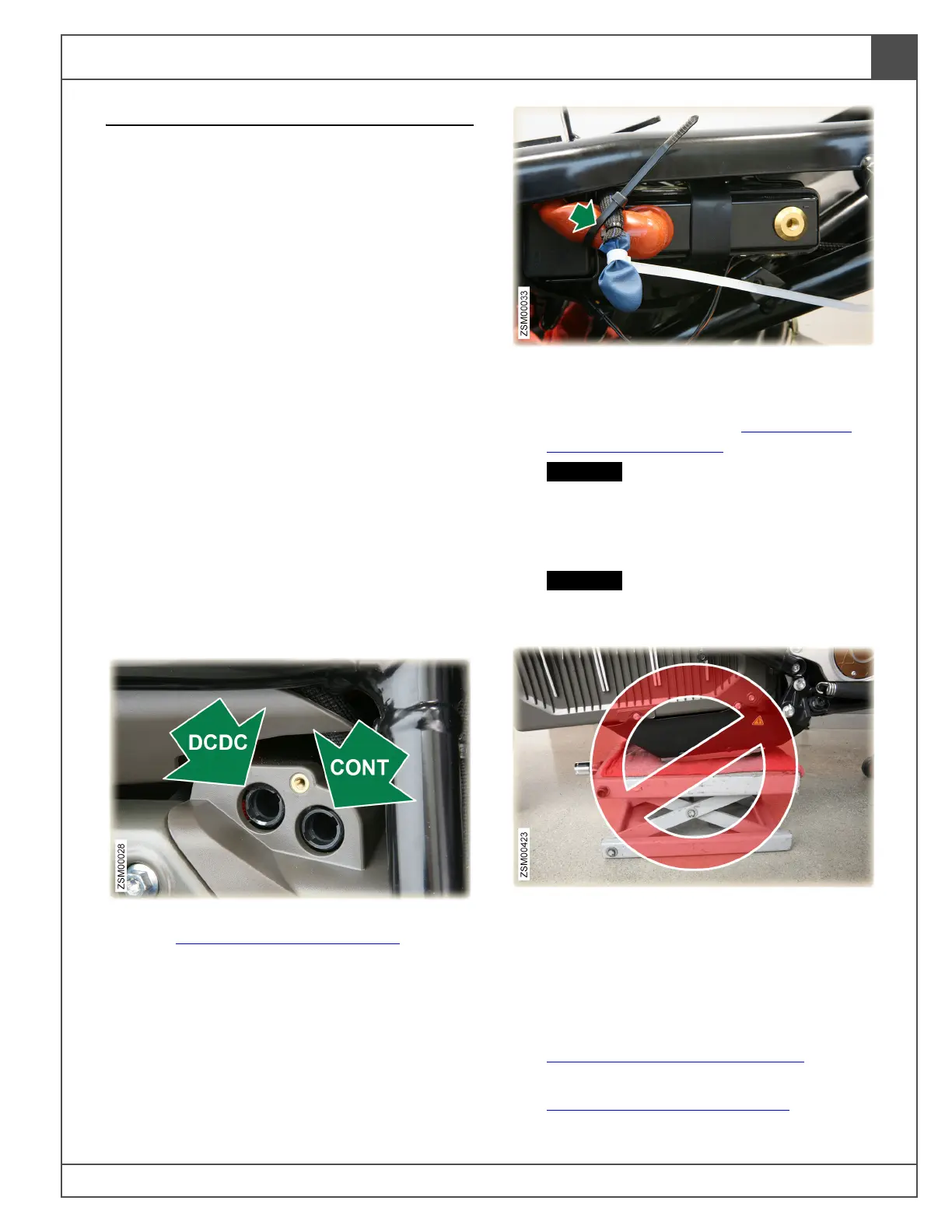

1. Remove high voltage DCDC and CONT fuses.
See High Voltage Fuses
, page 70.1.
2. Unbolt the negative battery terminal eyelet.
Cover eyelet with insulating material. Use
cable tie to secure negative battery wire to the
positive battery cable. See 12 Volt Battery
(Disconnect), page 70.3.
CAUTION: Cover/protect battery terminal
eyelet to reduce the risk of accidentally
contacting the negative battery terminal,
which can inadvertently power up the
12 volt system and damage components.
CAUTION: Secure battery terminal wire to
reduce the risk of arcing and damaging
electrical components.
3. DO NOT LIFT THE MOTORCYLE BY
JACKING UP THE CONTROLLER! DO NOT
SUPPORT THE WEIGHT OF THE
MOTORCYCLE BY SUPPORTING THE
CONTROLLER! Doing so, will damage the
controller and other components.
4. Remove headlight upper fairing. See
Headlight Upper Fairing
, page 60.2.
5. Remove left and right outer side fairings. See
Side Fairings (Outer)
, page 60.14.
To Next Page
