40-10 Wheel Speed Sensor (WSS)
Suspension
40

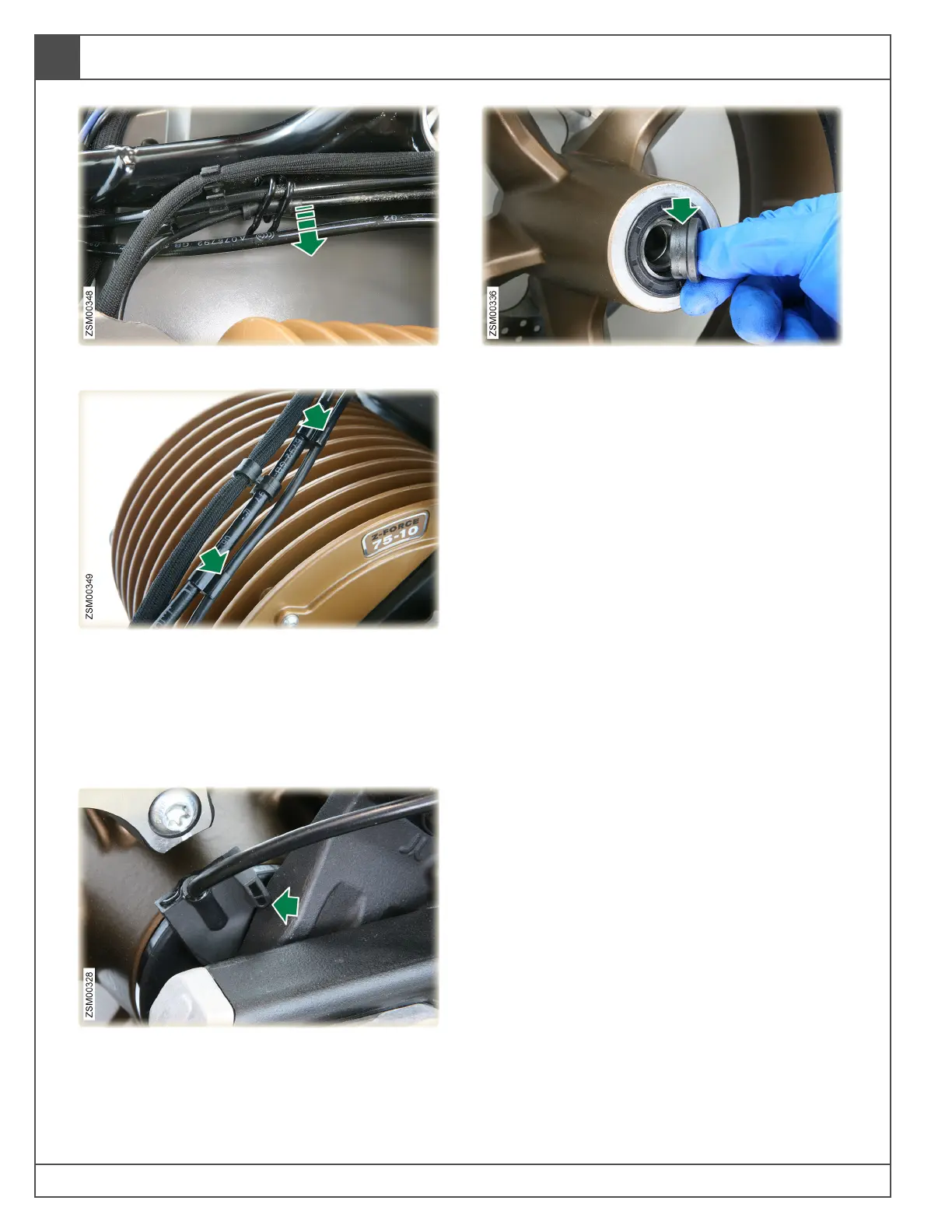

25. Release WSS harness from metal clip.
26. Release WSS harness from plastic clips (x2).
27. Remove WSS sensor and harness.
Installation
1. Installation is the reverse of the removal
procedure, with the exception of the following:
2. When installing the rear WSS, make sure the
alignment tab is positioned against the top
edge of the rear brake bracket as shown.
3. Confirm that the aluminum bushing from left
side (sprocket side) of the wheel is installed in
the seal prior to installation of the wheel.
