High Voltage Fuses 70-1
70
Electrical
High Voltage Fuses
High Voltage Fuses
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.
Tools Required (includes tools required for
parent jobs):
• 3/16” standard screwdriver
• 2mm hex wrench
Removal

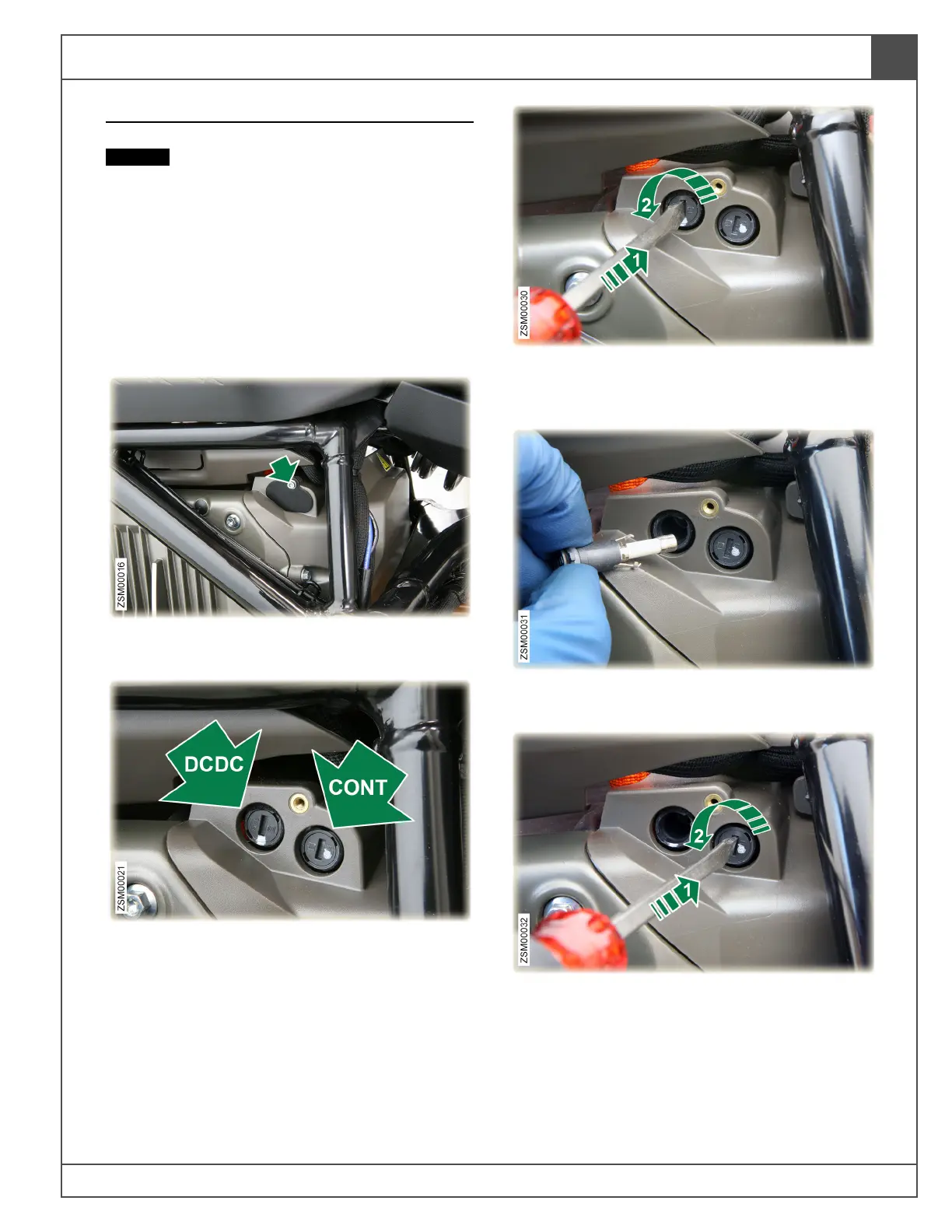

1. Remove screw securing fuse cover. Tool:
2mm hex wrench
2. High voltage fuses.
3. Insert screwdriver into fuse cap and turn
counterclockwise to release high voltage DC/
DC (DCDC) converter fuse.
4. Remove high voltage DC/DC (DCDC)
converter fuse.
5. Insert screwdriver into fuse cap and turn
counterclockwise to release high voltage
contactor (CONT) fuse.
