Zero SR/S User Manual

Charging System
Chargers 25-17
25

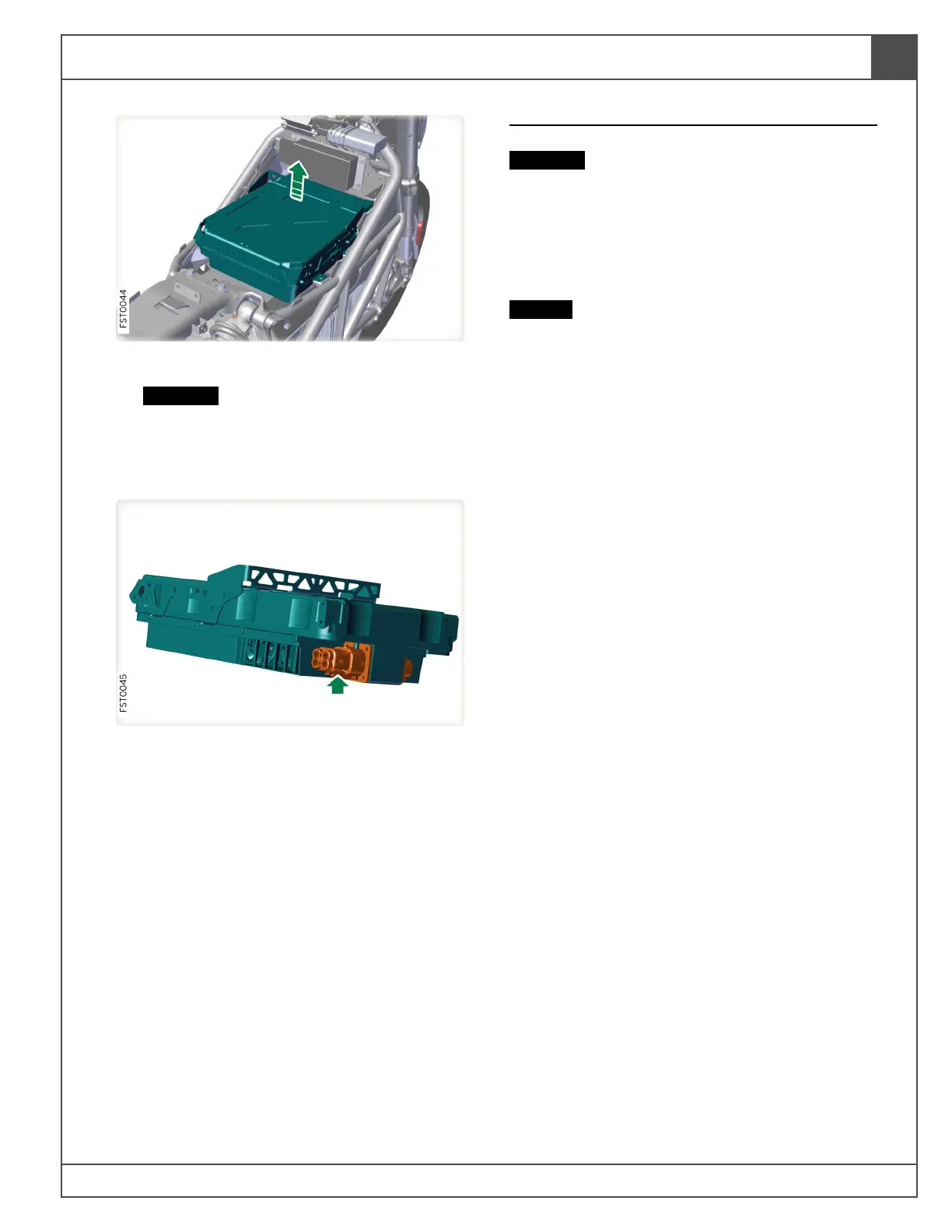

27. Lift and remove the charger and bracket.
CAUTION: Take care to not damage brake
lines when removing charger.
Note: Move brake lines to allow removal of
charger.
28. Disconnect charge inlet harness connector
from right side of charger.
29. Remove charger.
Installation
1. Installation is the reverse of the removal
procedure.
Charge Inlet Harness
CAUTION: Always perform the High Voltage
Discharging procedure prior to servicing any
High Voltage component or connection. Proper
procedures must be followed! To protect
electrical components, perform the following
tasks in the order given. Do not deviate from the
repair procedure processes.
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.
Tools Required (includes tools required for
parent jobs):
• T25
• T27
• T30
• T40
• 3/16” standard screwdriver
• 2mm hex wrench
• 7mm combination wrench
• 8mm socket and ratchet
• 10mm socket
• Non-marring trim removal/pry tool
New Fasteners Required:
• Cable ties (quantity: 4)

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
