Zero SR/S User Manual

20-42 Power Pack
Power Pack
20

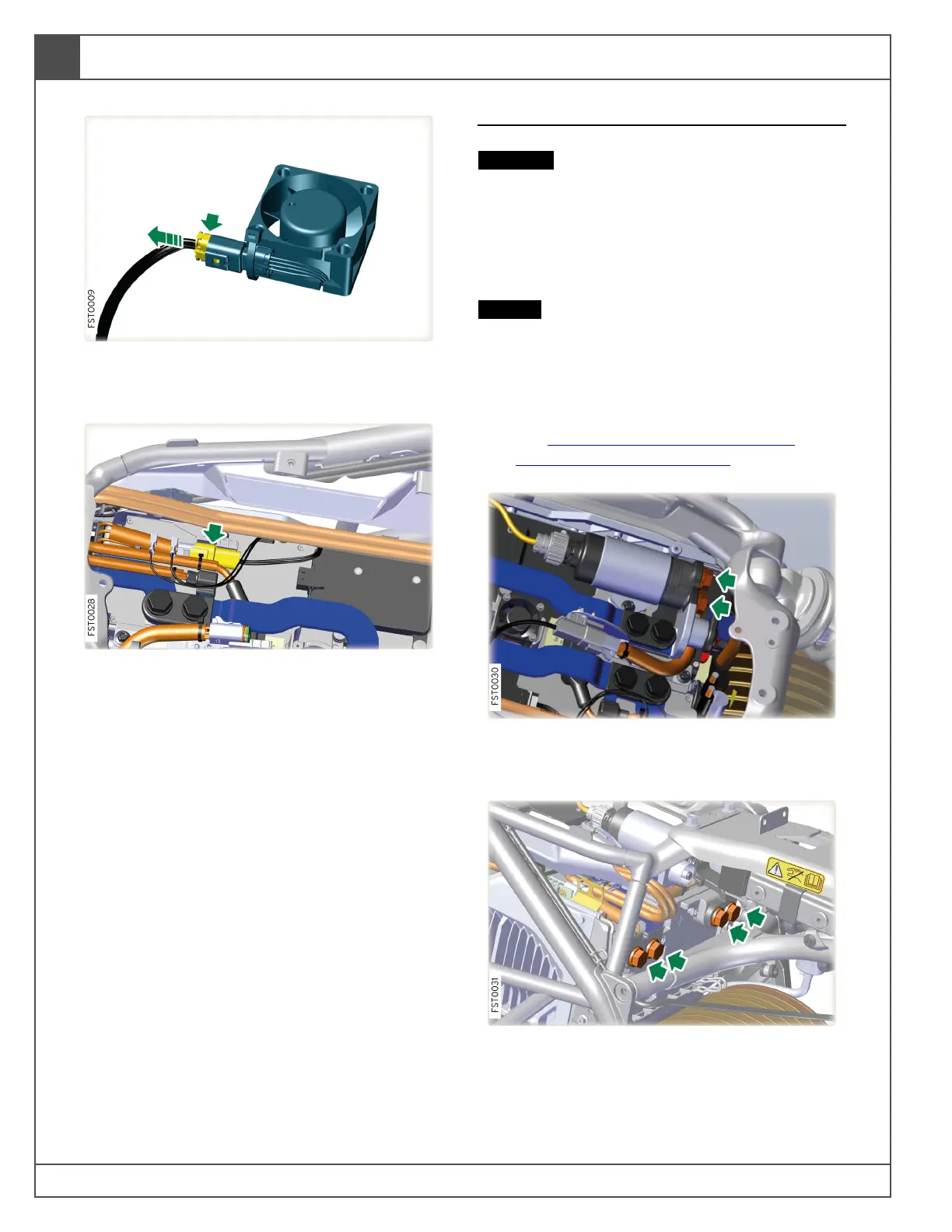

9. Disconnect harness connectors (x2) from fans
(x2).
10. Disconnect harness connector from BCB
main BUS set.
11. Disconnect harness from rear module.
12. Remove 12V harness.
Installation
1. Installation is the reverse of removal
procedure.
BCB Main BUS Set [22MY Onwards]
CAUTION: Always perform the High Voltage
Discharging procedure prior to servicing any
High Voltage component or connection. Proper
procedures must be followed! To protect
electrical components, perform the following
tasks in the order given. Do not deviate from the
repair procedure processes.
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.
Removal
1. Remove positive and negative power leads.
See Power Leads - Positive & Negative
[22MY Onwards], page 20.37.
2. Remove bolts (x2) securing BCB main BUS
set to contactor. Torque 10 lb-ft (13.5 Nm).
3. Remove bolts (x4) securing BCB main BUS
set to battery unit. Torque 10 lb-ft (13.5 Nm).
