Suspension
Rear Suspension 40-35
40

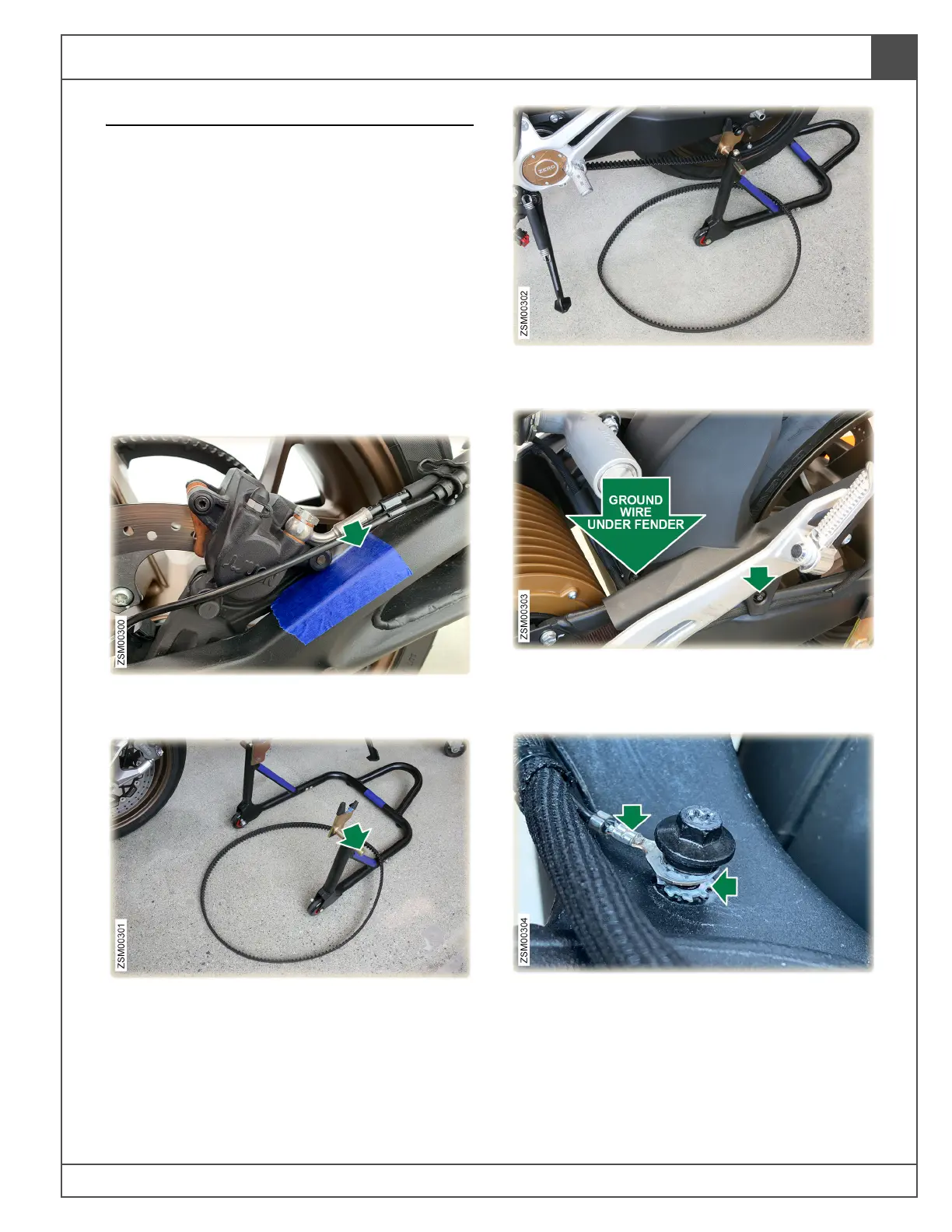

Replace Drive Belt
Tools Required (includes tools required for
parent jobs):
• T45
• 27mm socket and ratchet
• 13mm wrench
• Motorcycle stand
New Fasteners Required:
• Cable tie (quantity: 2)
Removal
1. Tape the swingarm to keep the brake caliper
from damaging the painted surfaces.
2. Place the new belt over the left side of the
motorcycle stand.
3. Safely raise rear tire off the ground using a
motorcycle stand.
4. Remove bolts (x2) securing the rear inner
fender to the rear swingarm. Tool: T25.
Torque: 3.5 lb-ft (5 Nm).
5. Center bolt secures the rear shock ground
wire eyelet and star washer underneath it.
To Next Page
