Zero SR/S User Manual

General Information
2-1
General Informa tion
How To Use This Manual
General
To assist in the use of this Manual, it is divided into
numbered sections (shown on the previous page).
Each section starts with a contents page listing the
service procedures covered within that section.
Each section is numbered from page 1, and the
page number is shown at the bottom of each page.
References will be made from within a service
procedure to other procedures that should be
carried out as part of the main procedure.
The individual actions of the service procedures
must be followed in the sequence in which they
appear. Annotation numbers on the illustrations
refer to the relevant numbered action after the
illustration.
For reference purposes, an illustration number is
shown in the bottom left hand corner of each
illustration.
Important Information Types
The following words are used within this manual to
call your attention to specific types of information.
WARNING! An action or information which must
be followed precisely to avoid the possibility of
injury.
CAUTION: Calls attention action or information
which must be followed to avoid damage to
components.
NOTICE: Information that must be performed
before starting the repair procedure.
Note: Gives helpful information.
Dimensions
The dimensions quoted are to design engineering
specification. Service limits are included where
applicable.
Terminology

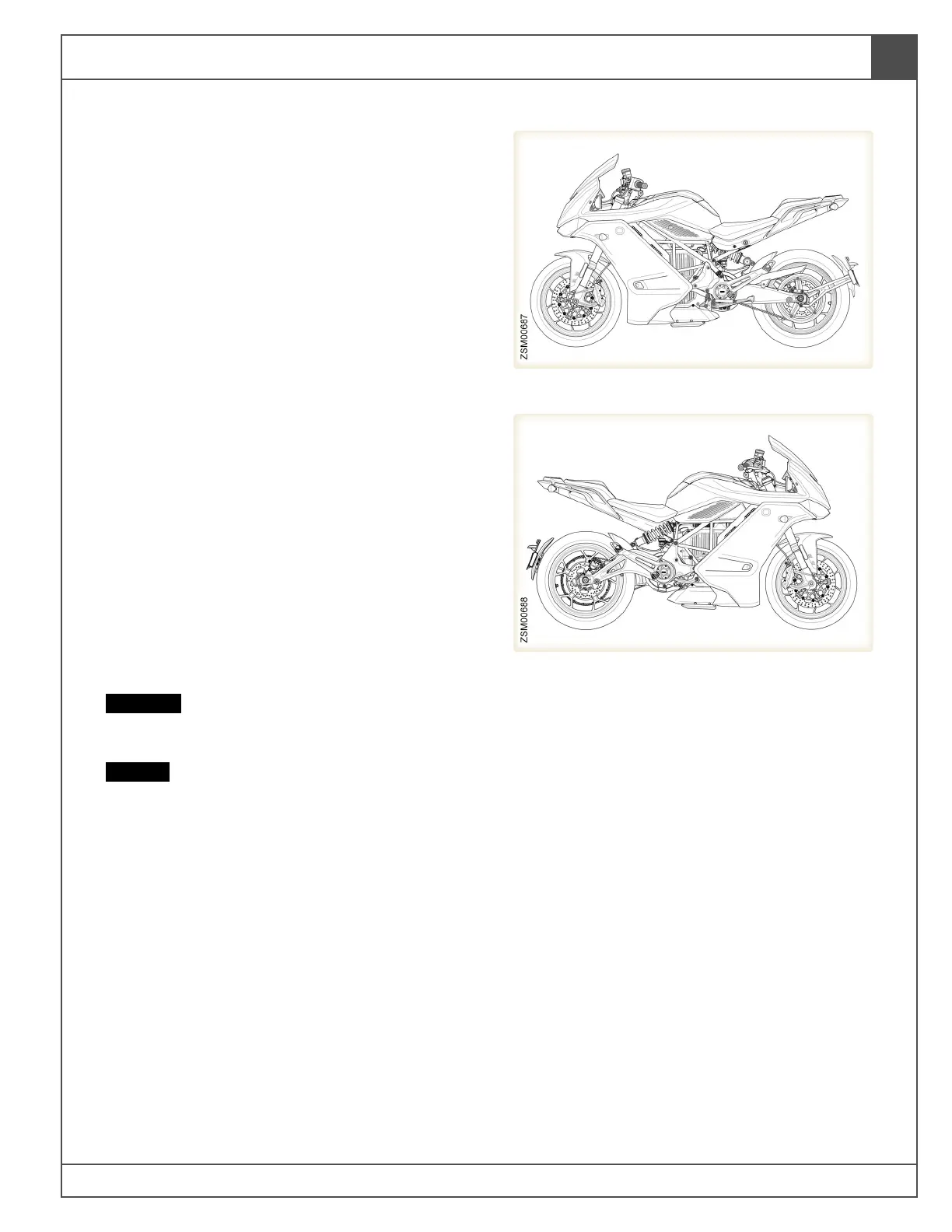

Left side of motorcycle.
Right side of motorcycle.

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
