40-6 Wheel Speed Sensor (WSS)
Suspension
40
Wheel Speed Sensor (Rear)
Tools Required (includes tools required for
parent jobs):
• T25
• T30
• T40
• T45
• 3/16” standard screwdriver
• 2mm hex wrench
• 2.5mm hex wrench
• 27mm socket and ratchet
• 10mm socket and ratchet
• 13mm wrench
• Motorcycle stand
New Fasteners Required:
• Cable ties (quantity: 3)
Removal

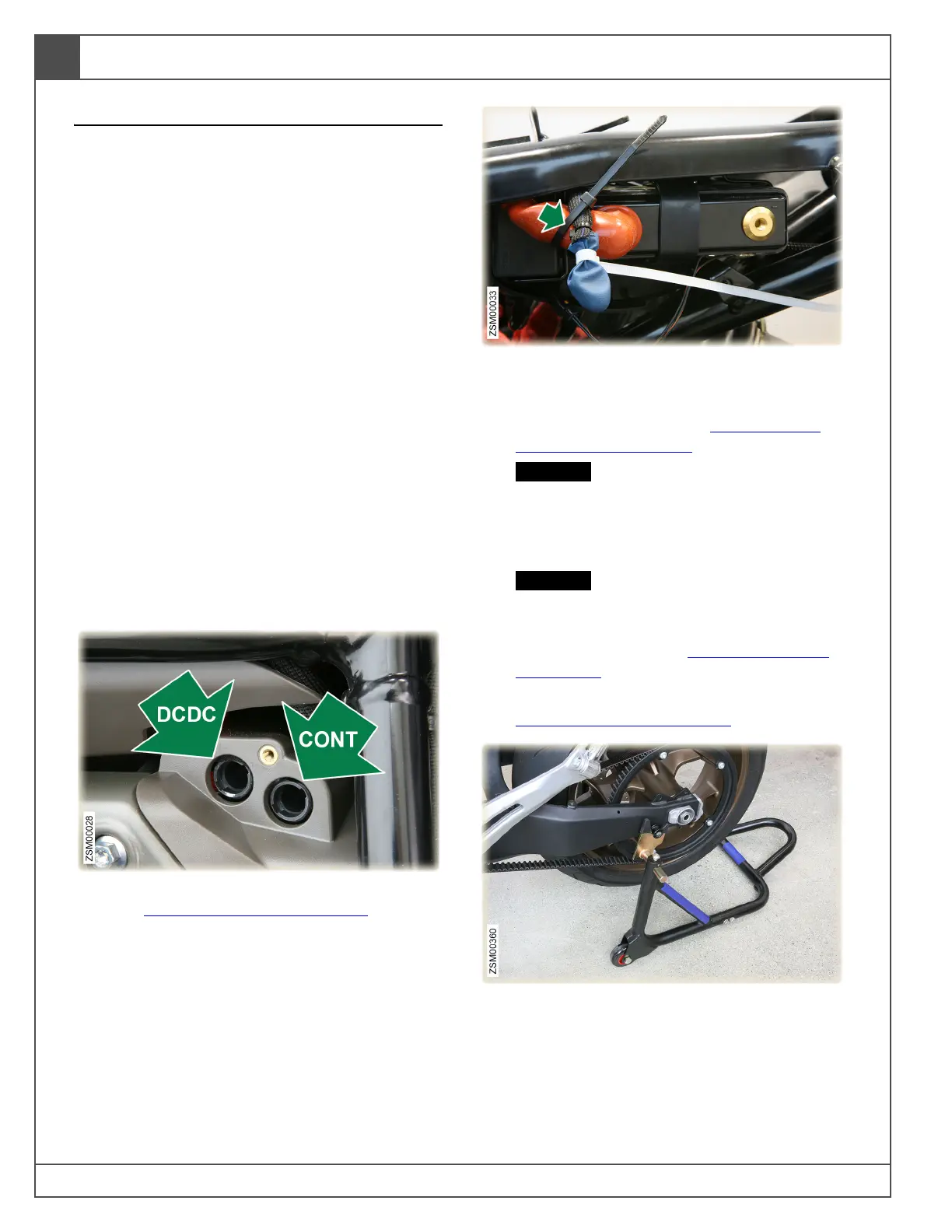

1. Remove high voltage DCDC and CONT fuses.
See High Voltage Fuses
, page 70.1.
2. Unbolt the negative battery terminal eyelet.
Cover eyelet with insulating material. Use
cable tie to secure negative battery wire to the
positive battery cable. See 12 Volt Battery
(Disconnect), page 70.3.
CAUTION: Cover/protect battery terminal
eyelet to reduce the risk of accidentally
contacting the negative battery terminal,
which can inadvertently power up the
12 volt system and damage components.
CAUTION: Secure battery terminal wire to
reduce the risk of arcing and damaging
electrical components.
3. Remove drive belt. See Replace Drive Belt
,
page 40.35.
4. Remove brake pads from the rear caliper. See
Brake Pads (Rear)
, page 45.5.
5. Safely raise rear tire off the ground using a
motorcycle stand.
