Zero SR/S User Manual

70-10 Lighting
Electrical
70

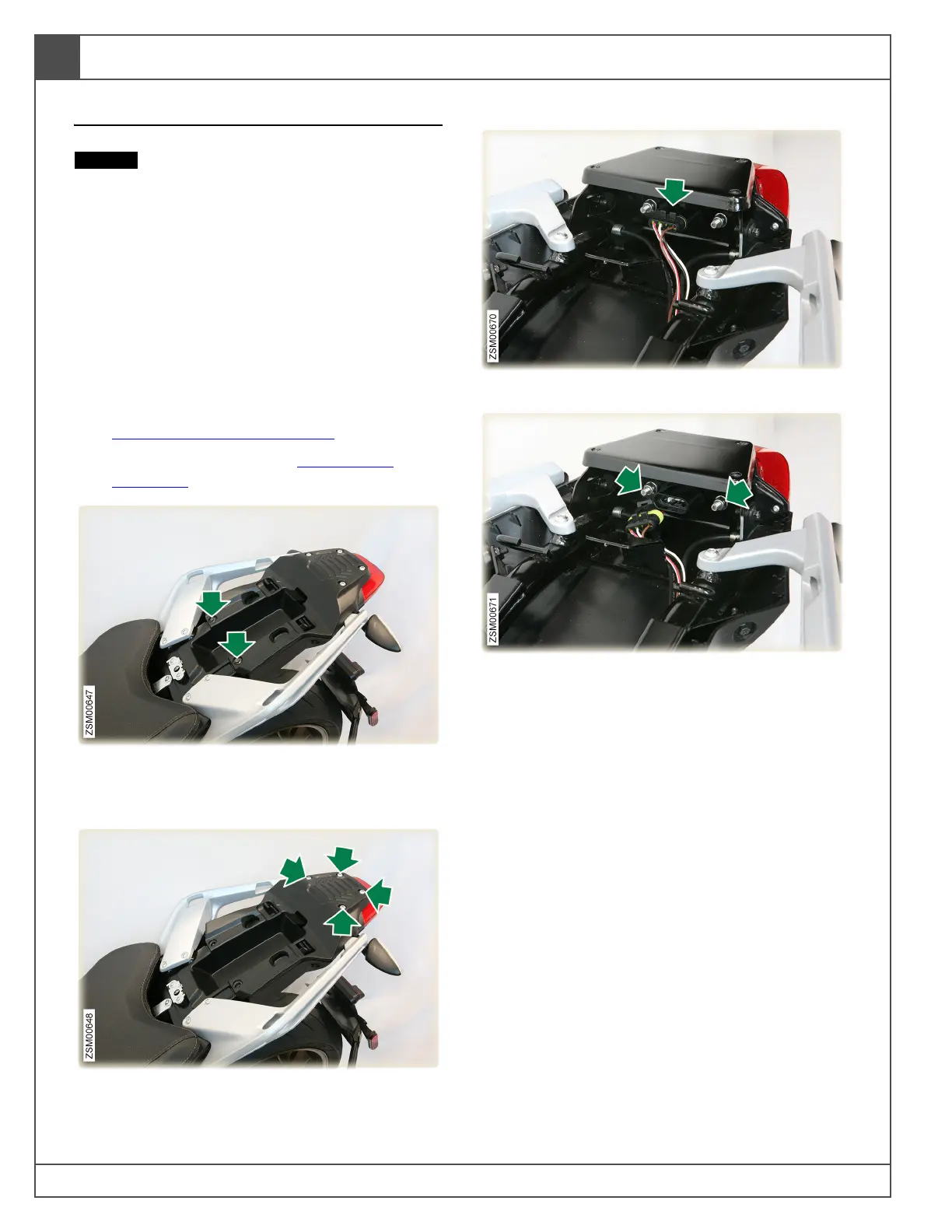

Tail Light
NOTICE: Before carrying out any work on the
electrical system, remove the key from the key
switch.
Tools Required (includes tools required for
parent jobs):
• T25
• T30
• 10mm socket and ratchet
Removal
1. PERFORM LOCKOUT PROCEDURE: See
Lockout Procedure, page 10.1.
2. Remove rider’s seat. See Rider’s Seat,
page 60.1.
3. Remove bolts (x2) securing front of seat tray to
tail frame assembly. Tool: T25. Torque: 3 lb-ft
(4 Nm).
4. Remove bolts (x4) securing rear of seat tray to
tail frame assembly. Tool: T30. Torque: 5 lb-ft
(7 Nm).
5. Remove seat tray.
6. Disconnect tail light harness connector.
7. Remove nuts (x2) securing tail light to tail
frame assembly. Tool: 10mm socket. Torque:
3.5 lb-ft (5 Nm).
8. Remove tail light from tail frame assembly.
Installation
1. Installation is the reverse of the removal
procedure.

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
