Electrical
Lighting 70-9
70

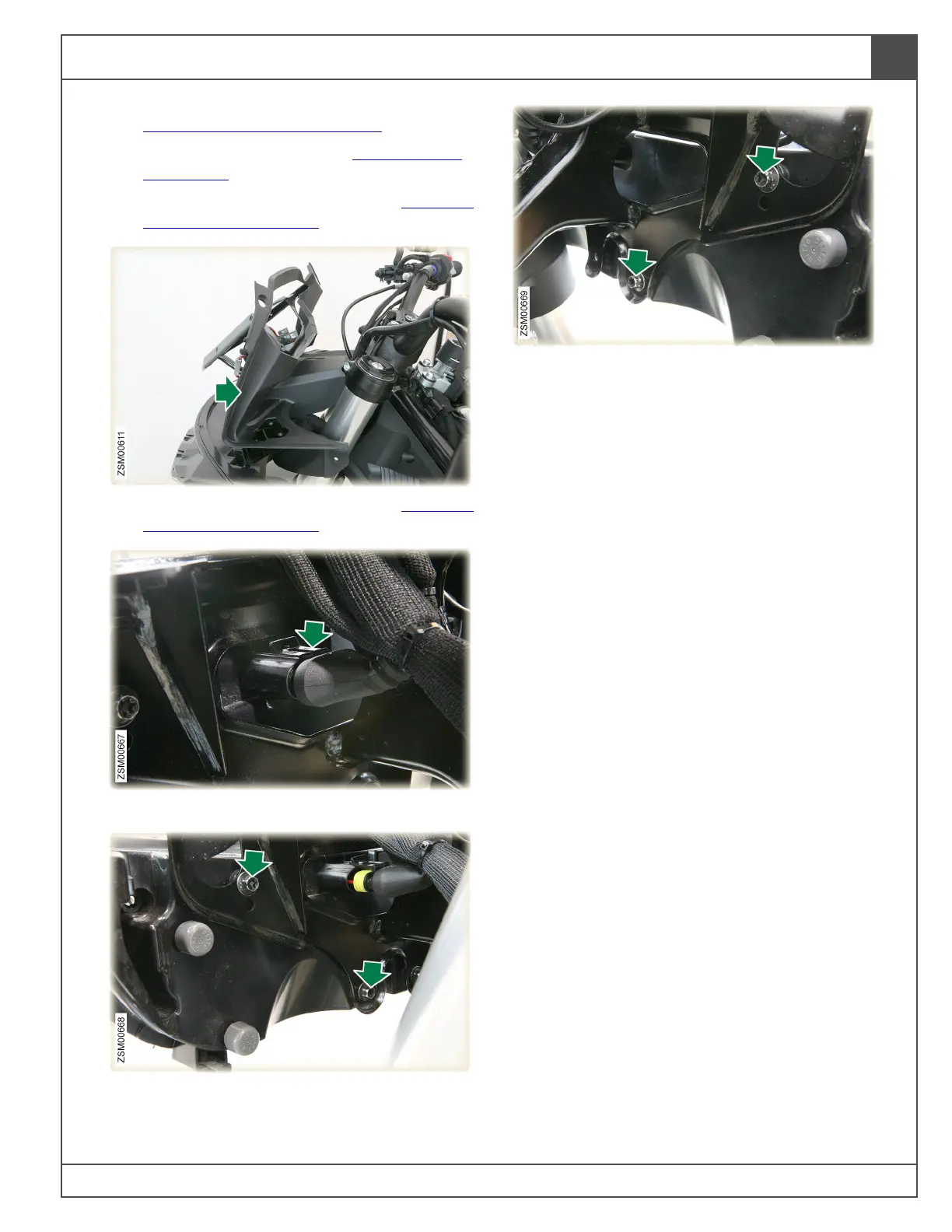

6. Remove left and right inner side fairings. See
Side Fairings (Inner), page 60.19.
7. Remove tank assembly. See Tank Removal,
page 60.10.
8. Remove headlight inner fairing. See Headlight
Inner Fairing, page 60.3.
9. Remove head light inner fairing. See Headlight
Inner Fairing, page 60.3.
10. Disconnect headlight harness connector.
11. Remove bolts (x2) securing left side of the
headlight to the hela bracket. Tool: T30.
Torque: 3.7 lb-ft (5 Nm).
12. Remove bolts (x2) securing right side of the
headlight to the hela bracket. Tool: T30.
Torque: 3.7 lb-ft (5 Nm).
13. Remove headlight.
Installation
1. Installation is the reverse of the removal
procedure.
