70-24 Mode Switch
Electrical
70

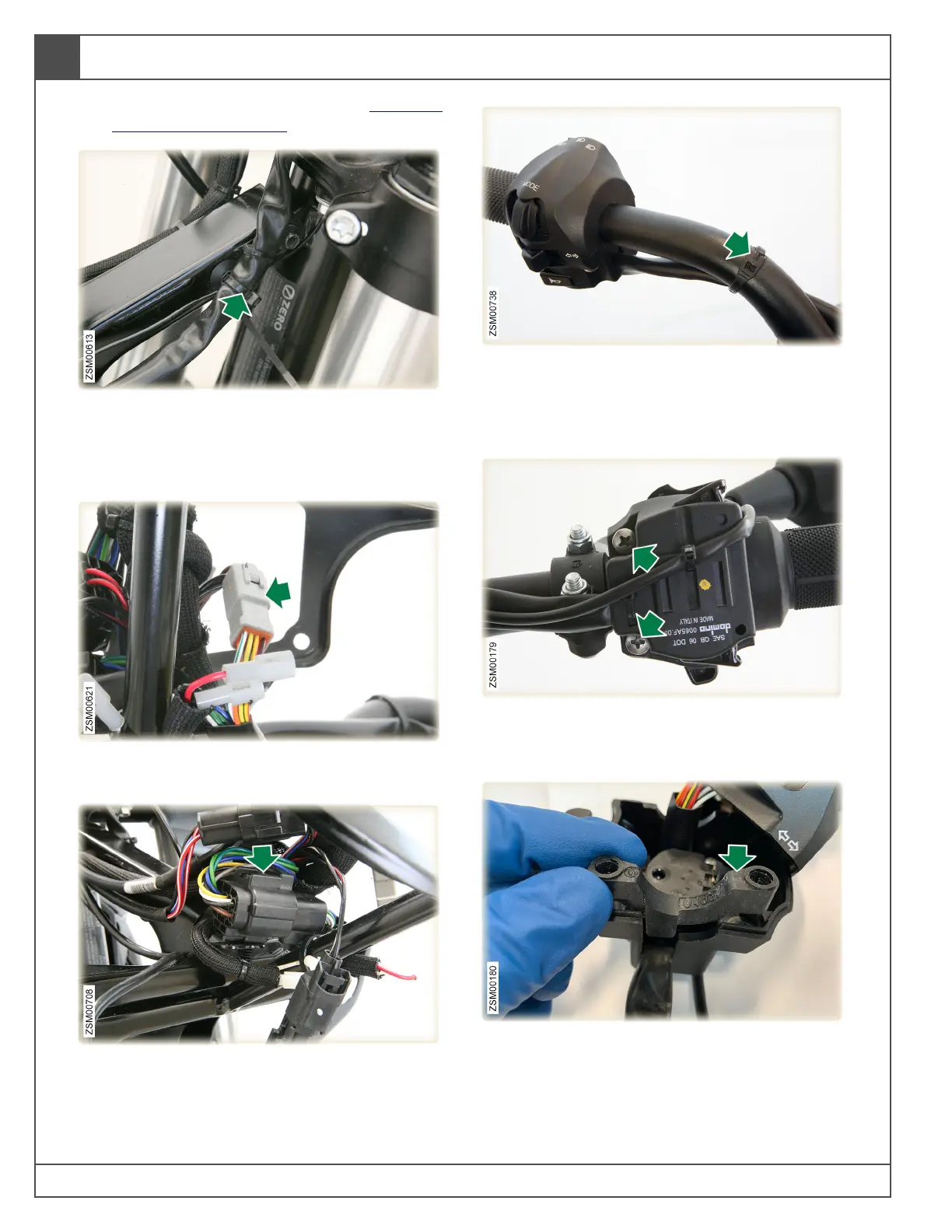

6. Remove headlight inner fairing. See Headlight
Inner Fairing, page 60.3.
7. Cut cable tie securing the mode switch
electrical harness to hela bracket.
Note: Replace cable tie during the installation
process.
8. Disconnect the headlight switch electrical
harness connector.
9. Disconnect the mode switch harness
connector.
10. Cut cable tie securing mode switch harness to
the left side of the handlebar.
Note: Replace cable tie during the installation
process.
11. Remove bolts (x2) securing the mode switch’s
bottom to the top. Tool: #2 Phillips
screwdriver.
12. Remove mode switch assembly from the
handlebar.
Note: Confirm mode switch shim is in place
upon installation.
