Suspension
Wheel Speed Sensor (WSS) 40-9
40

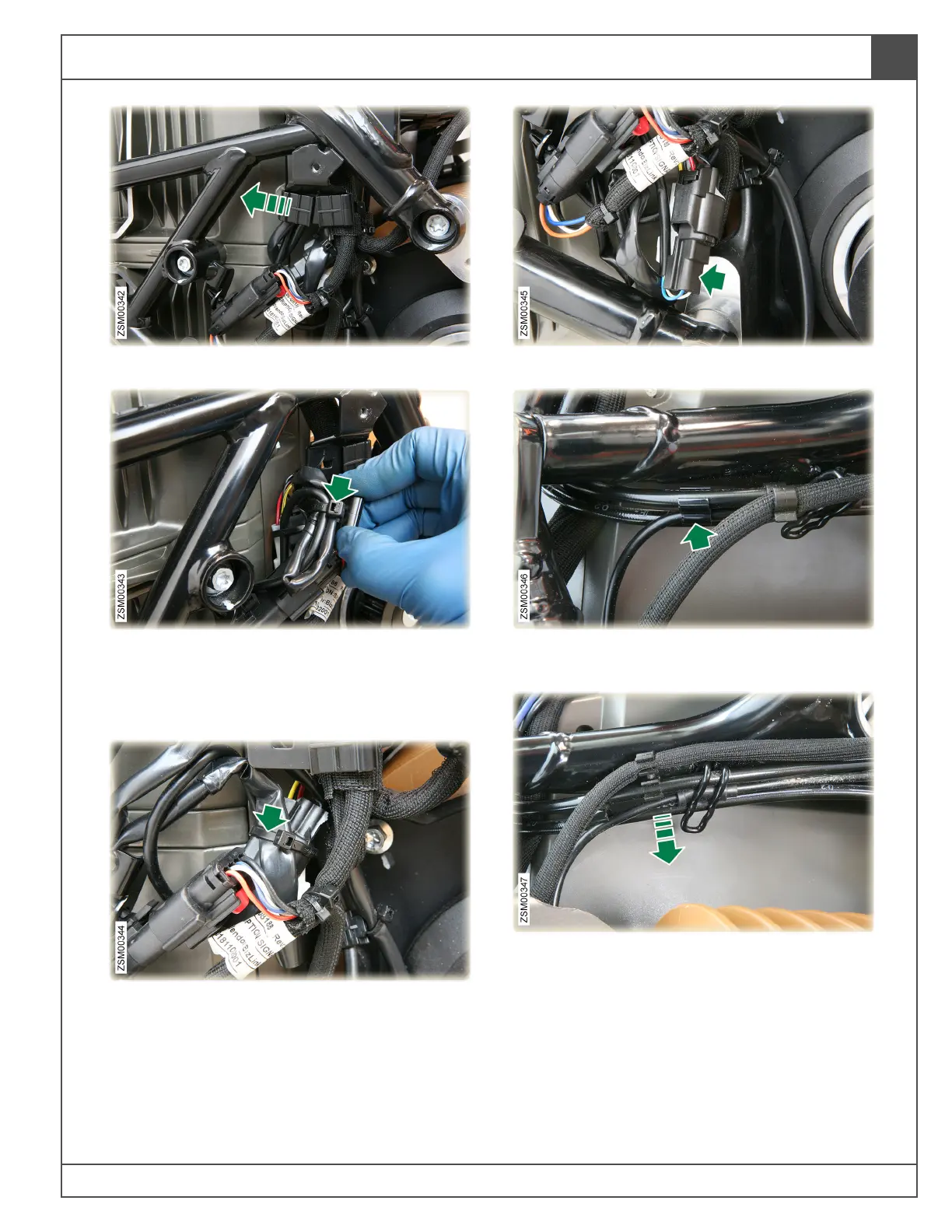

19. Release harness anchor clip from the frame.
20. Cut cable tie securing the rear WSS harness
and kickstand harness to the anchor clip.
Note: Replace cable tie during the installation
process.
21. Cut cable tie securing kickstand harness to
the kickstand harness connector and the WSS
harness connector.
Note: Replace cable tie during the installation
process.
22. Disconnect rear WSS connector.
23. Release rear WSS harness from the plastic
clip securing it to the rear brake caliper hose.
24. Release rear brake master cylinder hose from
metal clip.
