40-8 Wheel Speed Sensor (WSS)
Suspension
40

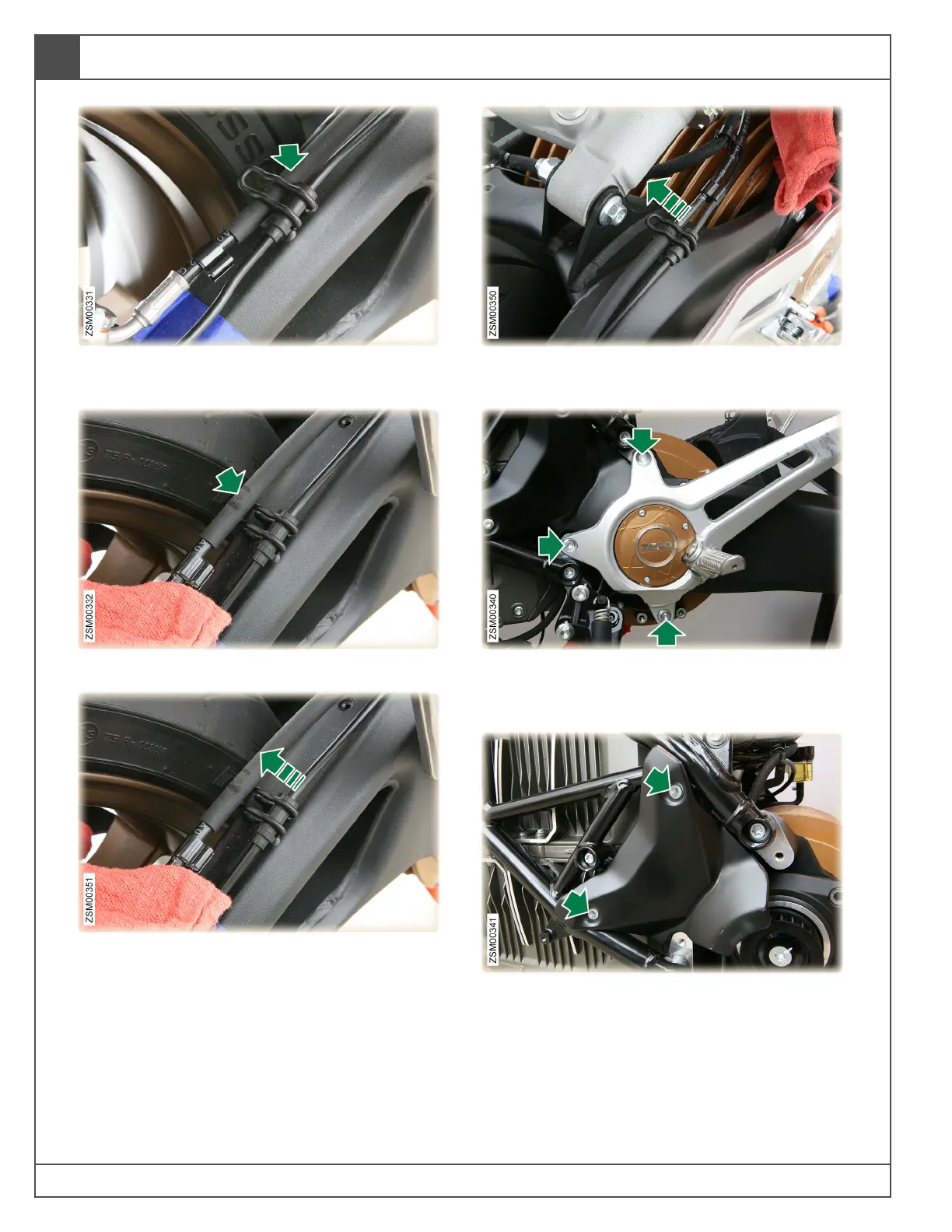

13. Release rear brake hose from the metal
retaining clip.
14. Position the rear brake hose on top of clip.
15. Position the rear brake hose on top of clip.
16. Release rear brake hose and rear WSS
harness from the metal retaining clip.
17. Remove bolts (x3) securing the left foot peg
bracket to the left doubler plate. Tool: T40.
Torque: 20 lb-ft (27 Nm).
18. Remove bolts (x2) securing the heel guard to
the frame. Tool: T25. Torque: 3.5 lb-ft (5 Nm).
