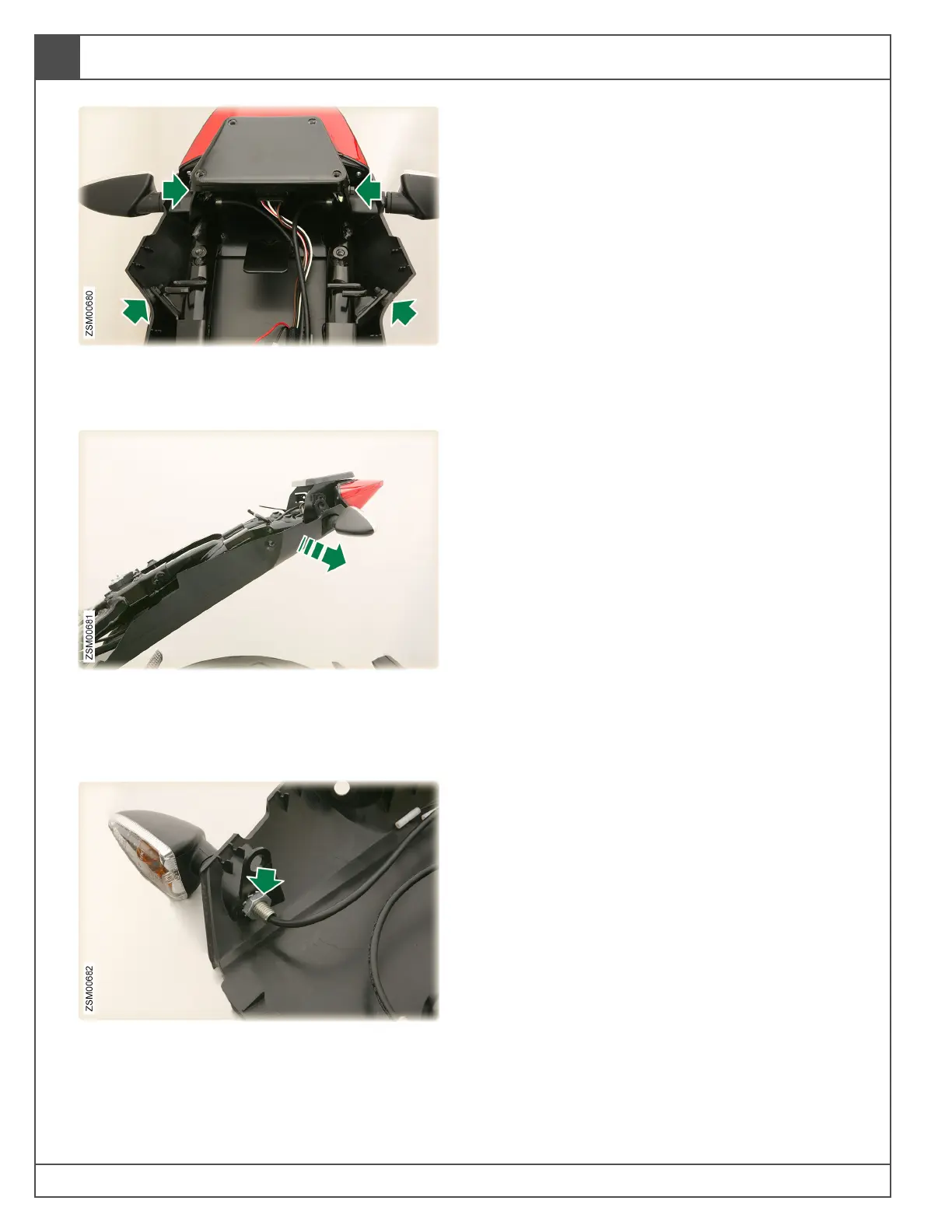

12. Remove bolts (x4) securing rear of tail trunk
pan to tail frame assembly. Tool: T25. Torque:
3.5 lb-ft (5 Nm).
13. Remove tail trunk pan to tail frame assembly.
Note: Carefully maneuver the turn signal
harnesses through the harness access holes
in the tail frame.
14. Remove nut securing the left rear turn signal.
Tool: 17mm wrench. Torque: 8 lb-ft (11 Nm).
15. Remove nut from left rear turn signal harness
and collect star washer.
16. Remove left rear turn signal.
17. Remove nut securing the right rear turn signal.
Tool: 17mm wrench. Torque: 8 lb-ft (11 Nm).
18. Remove nut from right rear turn signal harness
and collect star washer.
19. Remove right rear turn signal.
Installation
1. Installation is the reverse of the removal
procedure.
