Electrical
Lighting 70-17
70

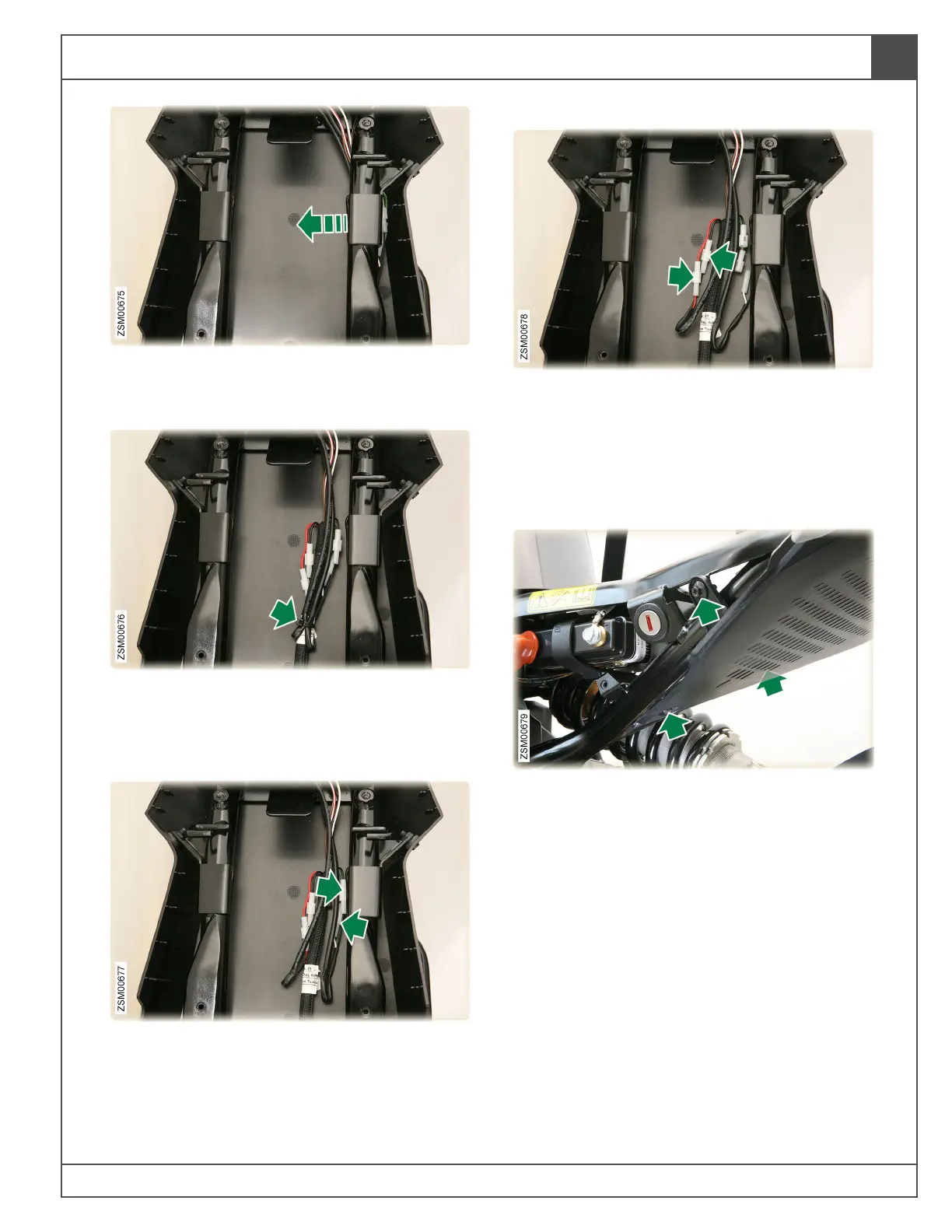

7. Move rear lighting harness to the right, from
under tail frame to gain access to the harness
connectors.
8. Cut cable tie securing rear turn signal
harnesses to the tail light harness.
Note: Replace cable tie during the installation
process.
9. Disconnect left rear turn signal harness
connectors.
Note: Take note of the wire insulation colors.
The turn signal wire colors match the colors of
the main wire harness.
Left turn signal wire colors: black and white.
10. Disconnect right rear turn signal harness
connectors.
Note: Take note of the wire insulation colors.
The turn signal wire colors match the colors of
the main wire harness.
Right turn signal wire colors: black and red.
11. Remove bolts (x3) securing front of tail trunk
pan to tail frame assembly. Tool: T25. Torque:
3.5 lb-ft (5 Nm).
To Next Page
