Body
Body 60-29
60

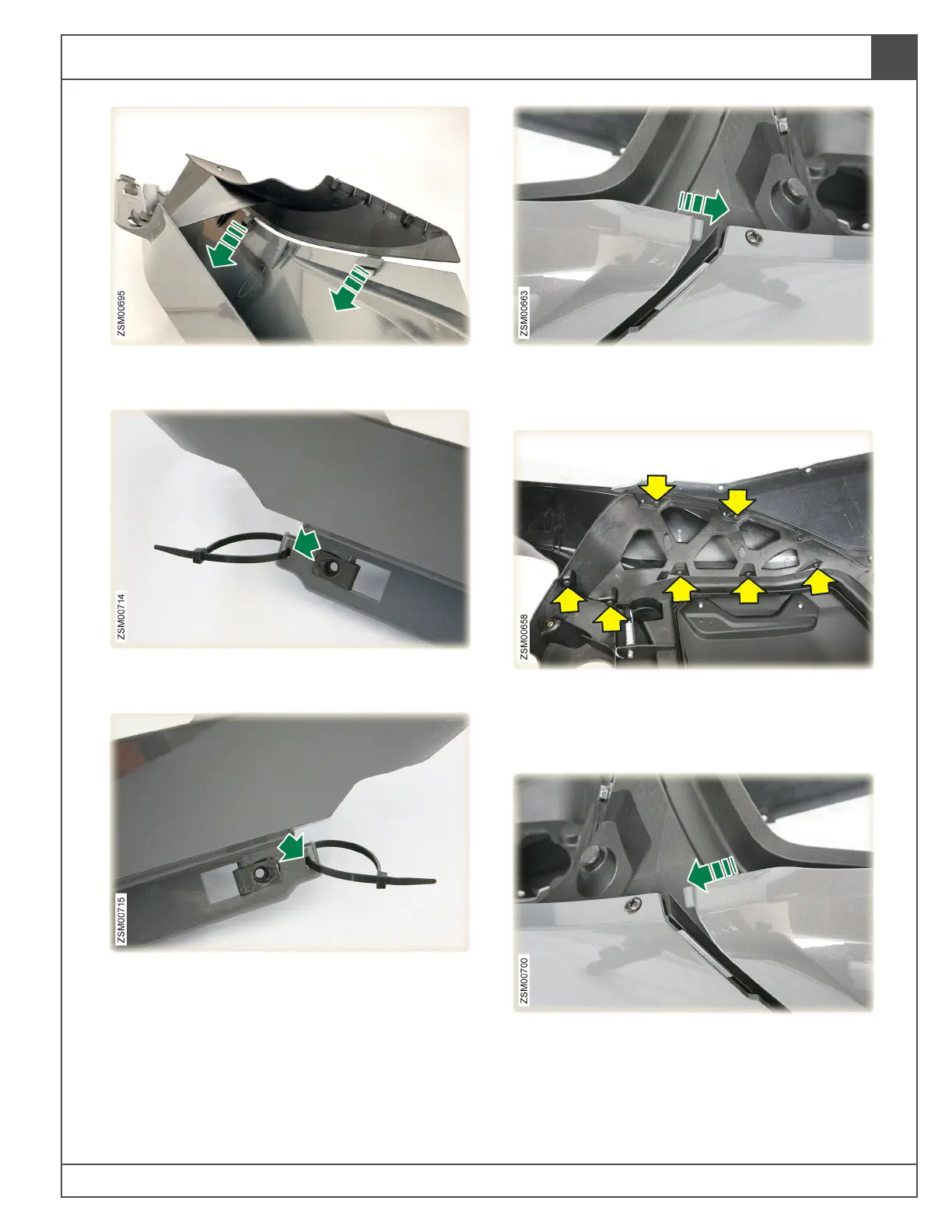

17. Insert locking tabs securing the right inner
fairing arm to the right outer fairing arm.
18. Install cable tie through the left outer fairing
arm cable retainer hole.
19. Install cable tie through the right outer fairing
arm cable retainer hole.
20. While assembling the left outer fairing arm,
confirm the alignment tab of the fairing outer
arm fits under the edge of the tank rear.
21. Install small screws (x7) securing the left
fairing arm inner and left fairing arm outer to
the tank collar. Tool: #2 Phillips screwdriver.
Torque: Hand tighten - Do not over-tighten.
22. While assembling the right outer fairing arm,
confirm the alignment tab of the fairing outer
arm fits under the edge of the tank rear.
