Zero SR/S User Manual

40-32 Rear Suspension
Suspension
40

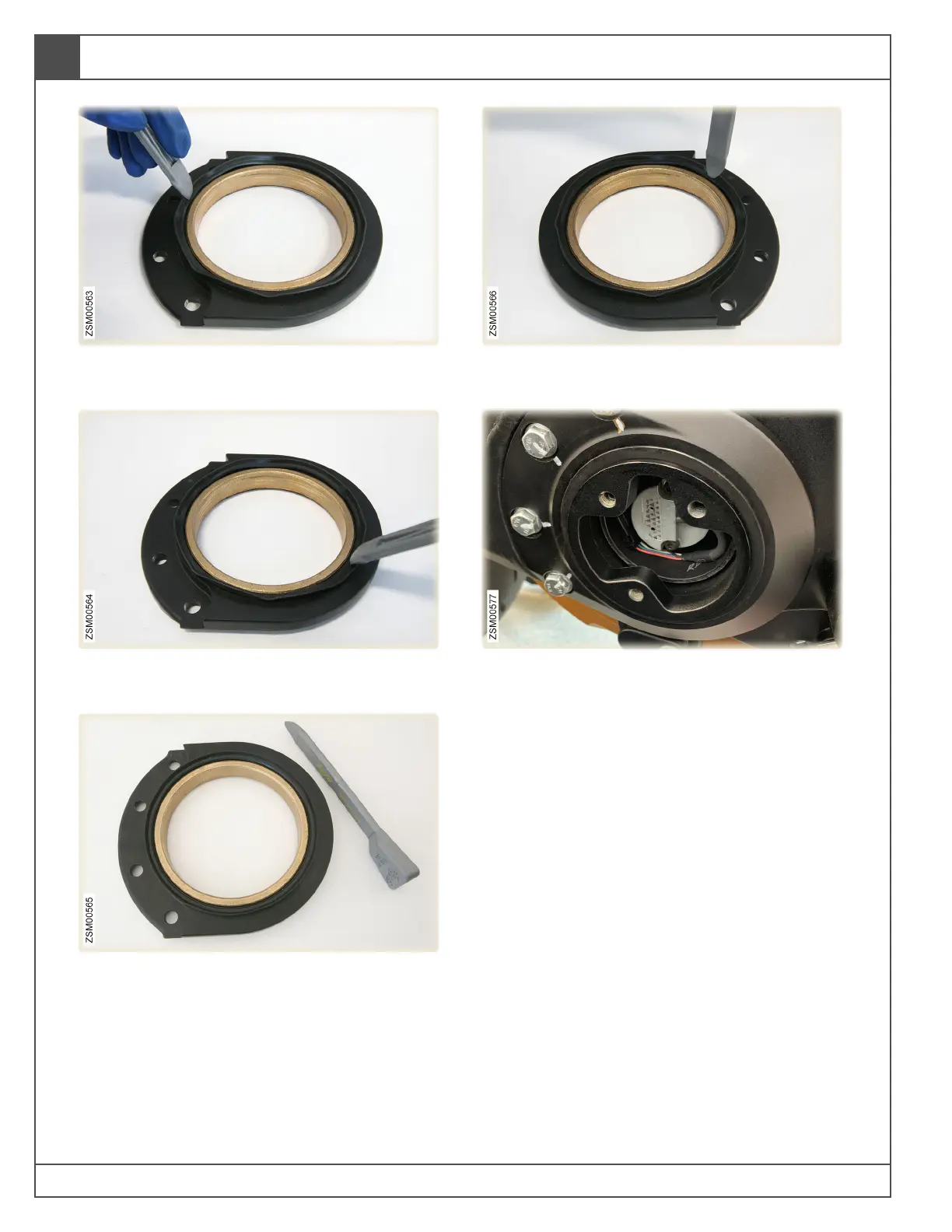

11. Press the seal into the groove at about the 10
o’clock position.
12. Press the seal into the groove at about the 4
o’clock position.
13. Continue alternating from side to side,
pressing the seal into the outer bearing cover
evenly. Continue pressing the seal into the
groove until the seal is completely seated.
14. Follow the same process to evenly install the
seal in the second outer bearing cover.
15. After installing the outer bearing covers (left
and right) on the doubler plates and installing
the swingarm on the outer bearing plates, then
install the outer bearing cover exterior seals.
Note: The exterior seals on the outer bearing
covers will pop off the cover during the
installation of the swing arm, so install the
seals after the outer bearing covers are
torqued to the swingarm.

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
