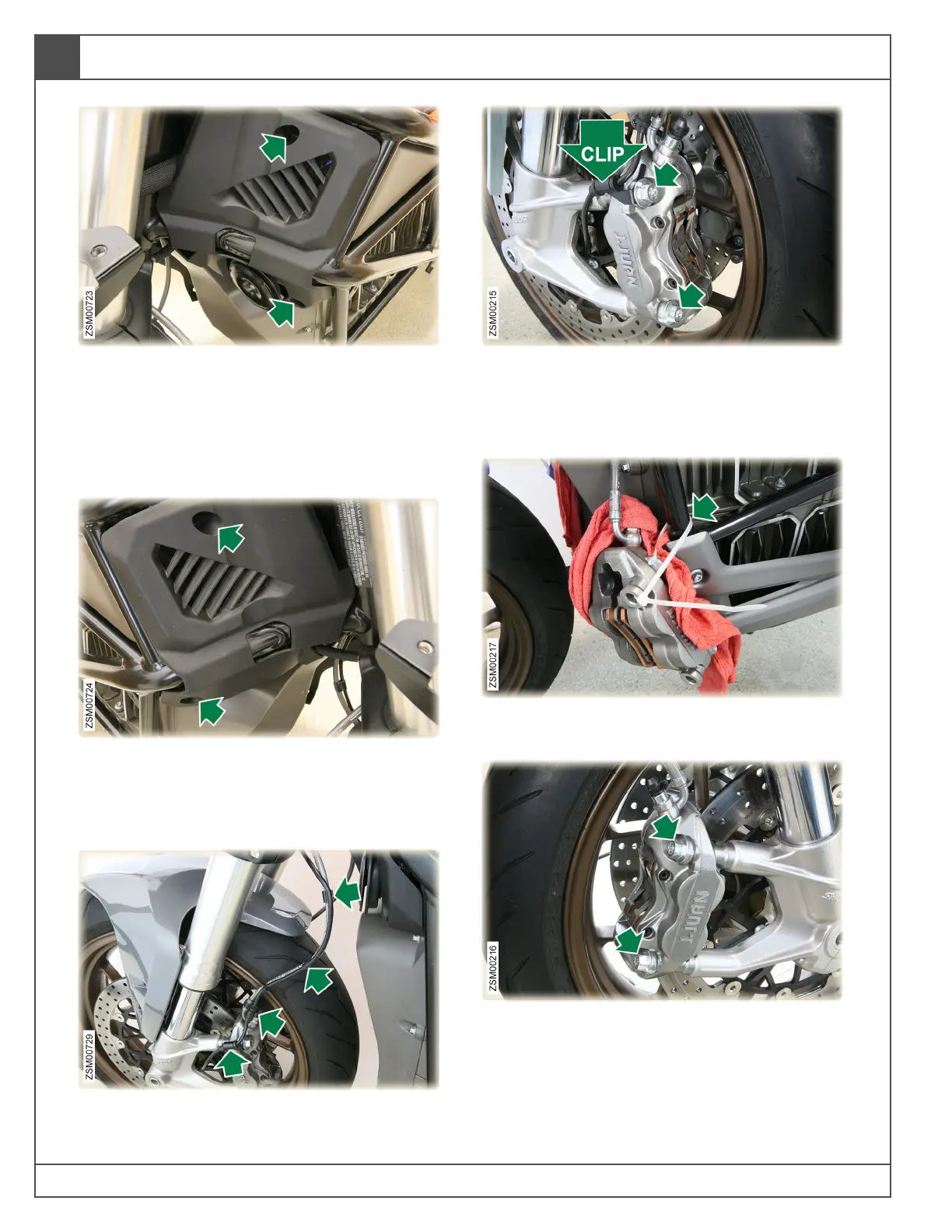

8. Remove bolts (x2) securing left side of front
closeout panel to frame. Tool: T25. Torque:
3.5 lb-ft (5 Nm).
Note: Protect rear portion of front fender and
front closeout panel surfaces to reduce the
possibility of scratching their surfaces.
9. Remove bolts (x2) securing right side of front
closeout panel to frame.Tool: T25. Torque:
3.5 lb-ft (5 Nm).
10. Remove front closeout panel.
11. Release WSS harness from the left front brake
hose clips (x4).
12. Remove left front caliper bolts (x2) and collect
retaining clip. Tool: T50. Torque: 30 lb-ft
(41 Nm).
13. Remove left front caliper from rotor.
14. Wrap left front caliper and tie the caliper to the
frame to eliminate strain on the brake hose.
15. Remove right front caliper bolts (x2). Tool:
T50. Torque: 30 lb-ft (41 Nm).
16. Remove right front caliper from rotor.
