50-6 Rear Wheel
Wheels
50

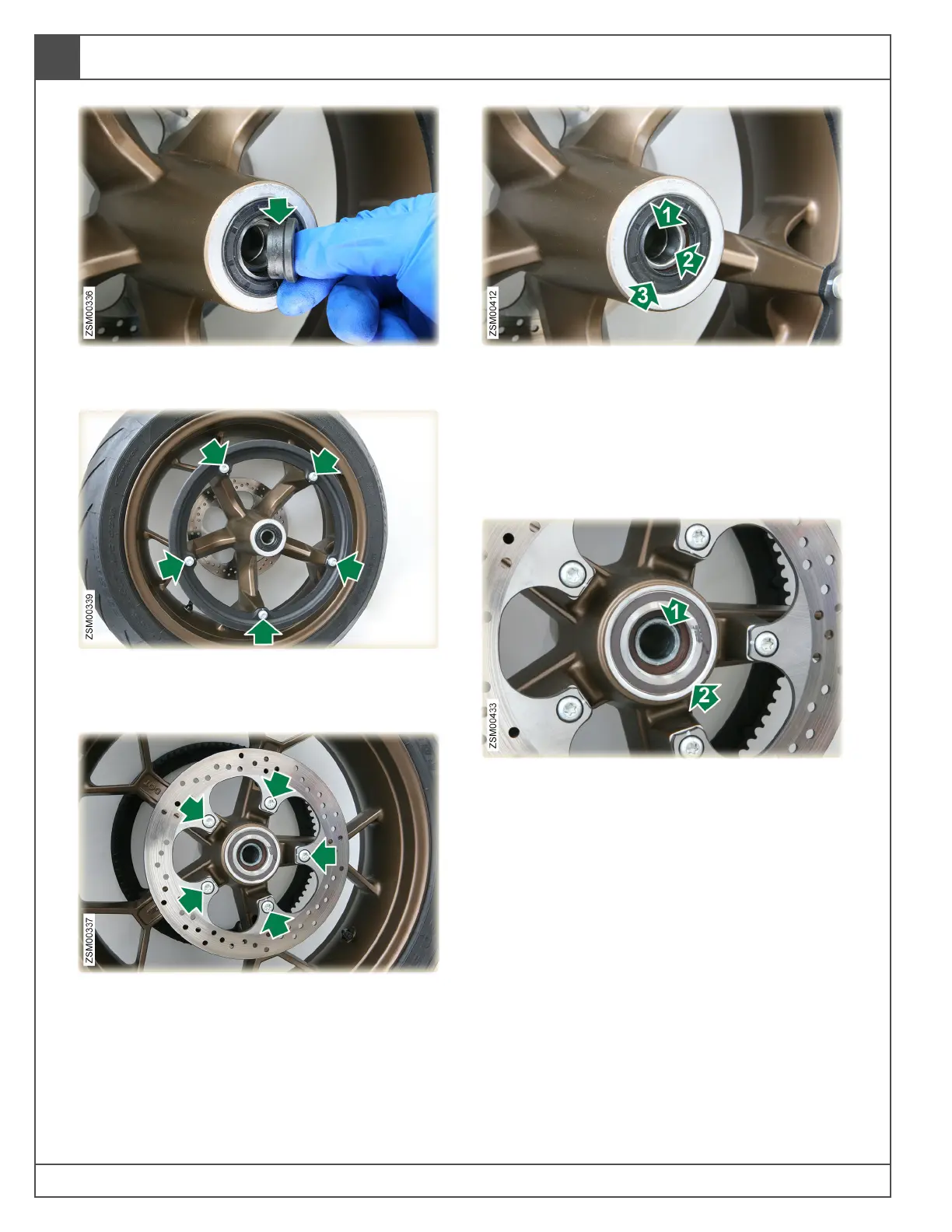

16. Remove plastic bushing from left side
(sprocket side) of the wheel.
17. Remove bolts (x5) securing the rear sprocket
to the rear wheel. Tool: T40. Torque: 26 lb-ft
(35 Nm).
18. Remove bolts (x5) securing the brake rotor to
the rear wheel. Tool: T40. Torque: 20 lb-ft
(27 Nm).
Installation
1. Installation is the reverse of the removal
procedure, with the exception of the following:
2. On the sprocket-side of the rear wheel, inspect
the condition of the inner (#1) and outer (#2)
bearings and the seal (#3). Replace if
necessary.
Note: The bearings and seal are one-time use
parts. Every part removed, will need to be
replaced.
3. On the rotor-side of the rear wheel, inspect the
condition of the wheel bearing (#1) and the
ABS magnet ring (#2). Replace if necessary.
Note: The bearing is a one-time use parts. If
removed, the part will need to be replaced.
