6. For the rest of this procedure, there will be
references to shouldered-bolts securing body
panels, that are 2 different lengths.

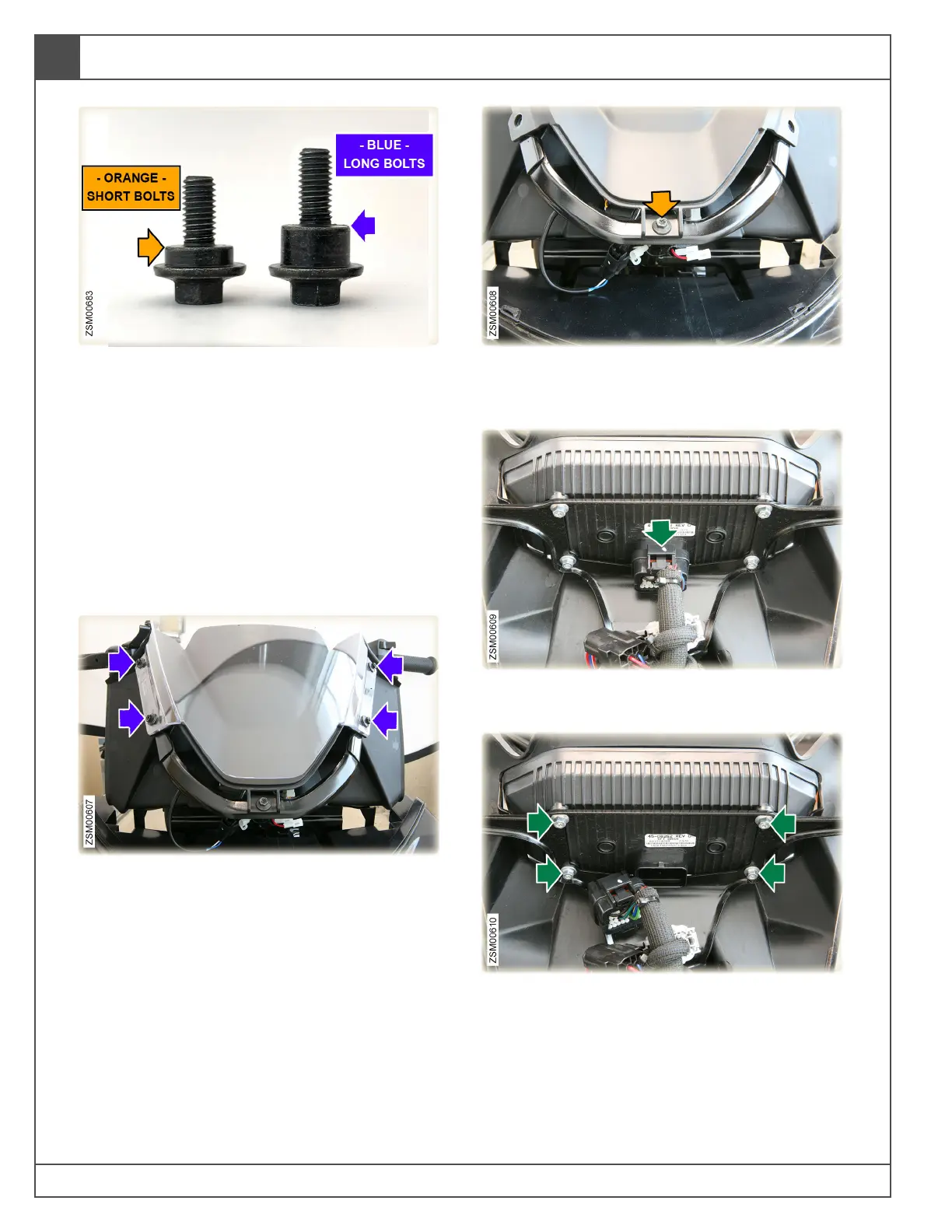

Short bolts: designated on photos with
orange arrows, used to attach a single body
panel layer.
Long bolts: designated on photos with blue
arrows, used to attach 2 layers of body panels.
Note: Non-shouldered body bolts designated
with green arrows are present in this
procedure.
7. Remove long bolts (x4) securing windscreen
to the hela bracket. Tool: T25. Torque: 3 lb-ft
(4 Nm).
8. Remove windscreen.
9. Remove short bolt securing dash center cover
to the hela bracket. Tool: T25. Torque: 3 lb-ft
(4 Nm).
10. Disconnect dash harness connector from the
dash.
11. Remove bolts (x4) securing the dash to the
hela bracket. Tool: T25. Torque: Hand tighten
- Do not over-tighten.
12. Remove dash display.
