Tail 60-37
60

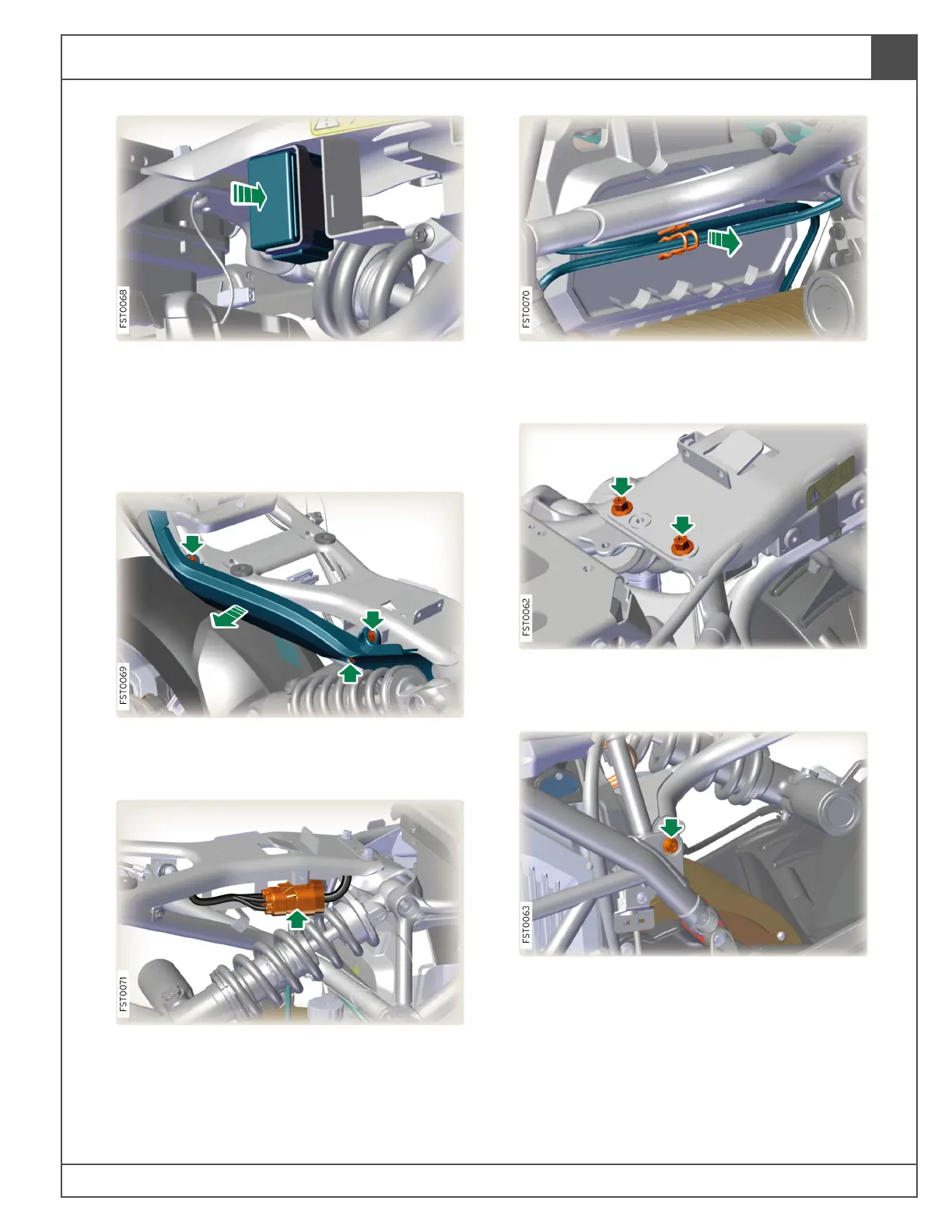

11. Slide fuse box/panel back and off its mounts,
then down to remove from frame.
NOTE: Fuse box will come out with (+) battery
lead.Remove bolts (x3) securing frame cover
to frame.
12. Remove frame cover from right hand side of
the rider seat.
13. Disconnect the tail pod signal harness
connector.
14. Release brake line/WSS wire from clip on tail
frame.
15. Remove T40 bolts (x2) securing tail to bike
main frame. Torque 20 lb-ft (27 Nm).
16. Support tail frame and remove T40 bolt
securing tail to bike main frame. Torque
20 lb-ft (27 Nm).
