70-4 12 Volt Battery
Electrical
70

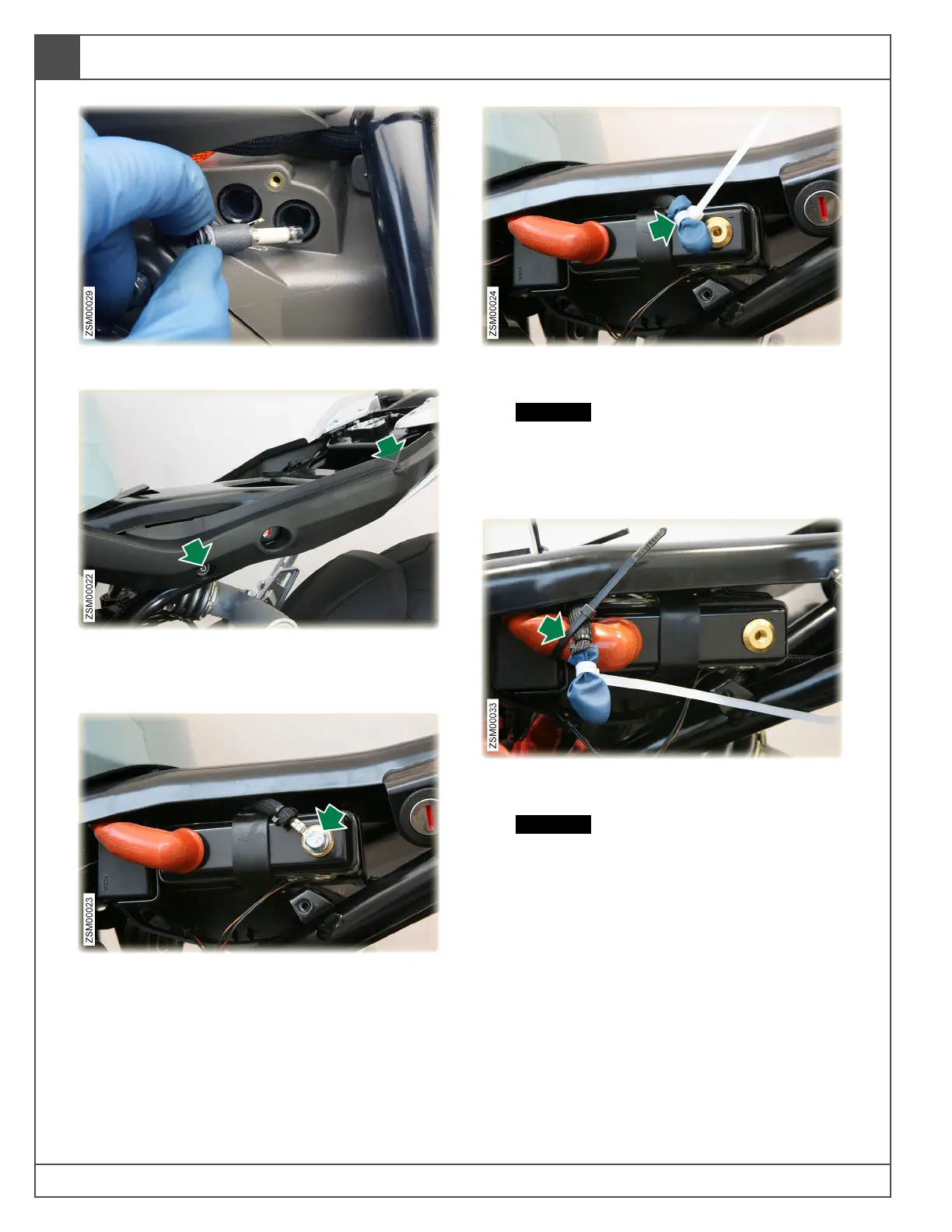

8. Remove high voltage contactor fuse.
9. Remove bolts (x2) securing battery access
closeout panel. Tool: T25. Torque: 3.5 lb-ft
(5 Nm).
10. Remove bolt securing negative battery
terminal eyelet to battery and collect washer.
Tool: 10mm socket and ratchet. Torque: 4 lb-ft
(5 Nm).
11. Cover negative battery terminal eyelet with
insulating material.
CAUTION: Cover/protect battery terminal
eyelet to reduce the risk of accidentally
contacting the negative battery terminal,
which can inadvertently power up the
12 volt system and damage components.
12. Use cable tie to secure negative battery
terminal eyelet to the positive battery cable.
CAUTION: Secure battery terminal wire to
reduce the risk of arcing and damaging
electrical components.
Installation
1. Installation is the reverse of the removal
procedure.
