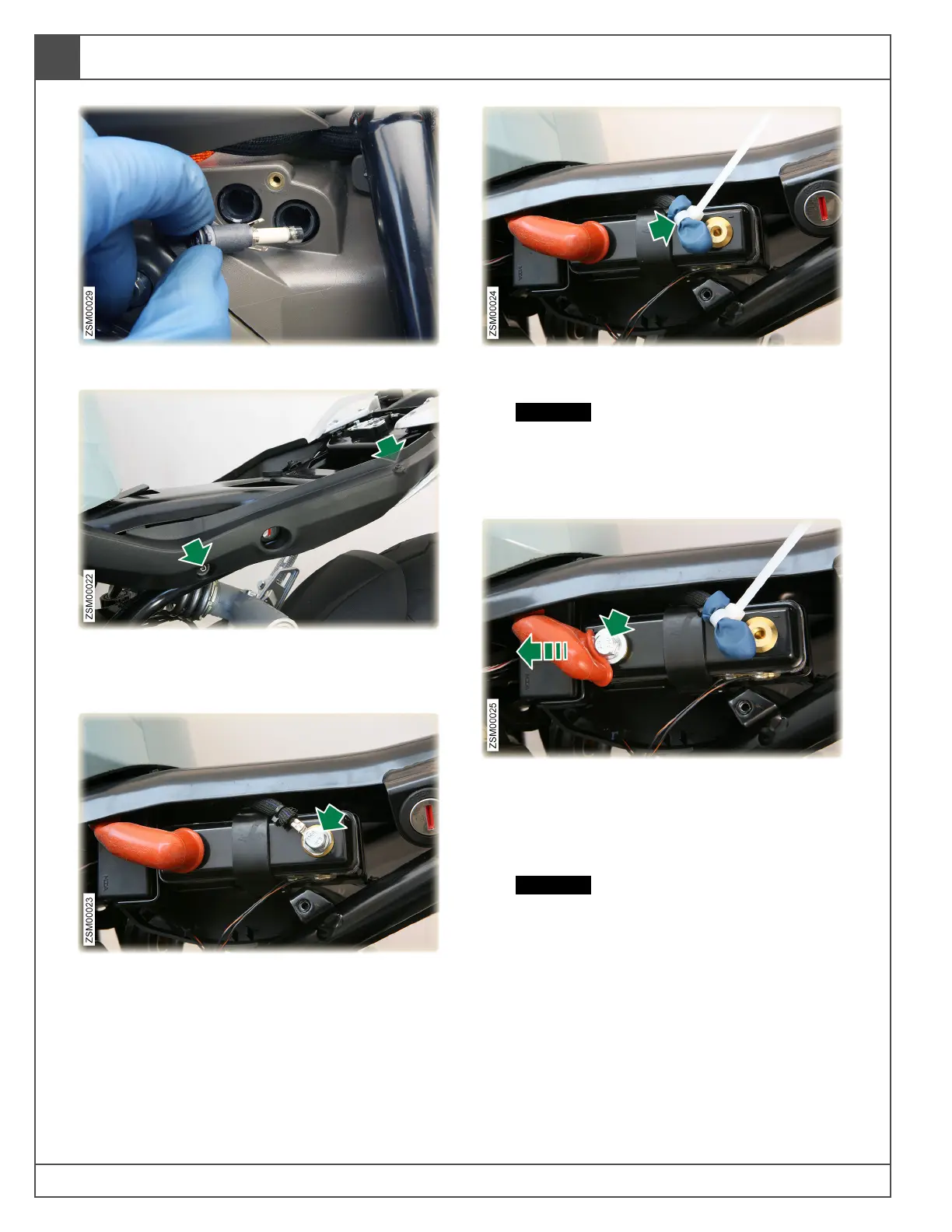

8. Remove high voltage contactor fuse.
9. Remove bolts (x2) securing battery access
closeout panel. Tool: T25. Torque: 3.5 lb-ft
(5 Nm).
10. Remove bolt securing the harness wire eyelet
to the battery negative battery terminal and
collect washer. Tool: 10mm socket. Torque:
4lb-ft (5 Nm).
11. Cover negative battery terminal eyelet with
insulating material.
CAUTION: Cover/protect battery terminal
eyelet to reduce the risk of accidentally
contacting the negative battery terminal,
which can inadvertently power up the
12 volt system and damage components.
12. Move protective cover to expose the positive
terminal bolt. Remove bolt securing the
harness wire eyelet to the positive battery
terminal and collect washer. Tool: 10mm
socket. Torque: 4 lb-ft (5 Nm).
CAUTION: Take note of the larger washer
used on the positive battery terminal bolt to
secure the protective boot.
