Electrical
Mode Switch 70-27
70

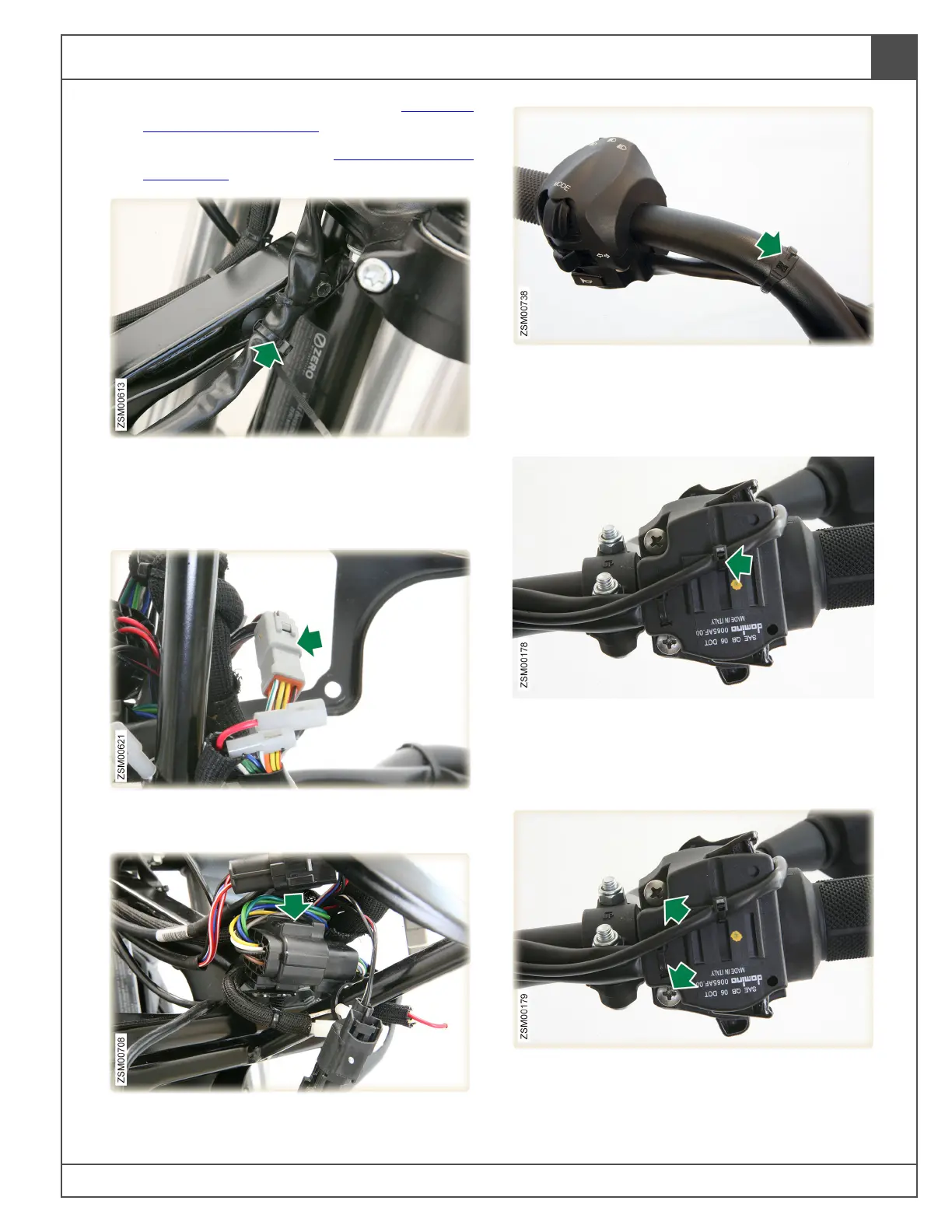

6. Remove headlight inner fairing. See Headlight
Inner Fairing, page 60.3.
7. Remove storage liner. See Tank Storage Liner,
page 60.34.
8. Cut cable tie securing the mode switch
electrical harness to hela bracket.
Note: Replace cable tie during the installation
process.
9. Disconnect the headlight switch electrical
harness connector.
10. Disconnect the mode switch harness
connector.
11. Cut cable tie securing mode switch harness to
the left side of the handlebar.
Note: Replace cable tie during the installation
process.
12. Cut cable tie securing left heated grip harness
to the bottom of the mode switch assembly.
Note: Replace cable tie during the installation
process.
13. Remove bolts (x2) securing the mode switch’s
bottom to the top. Tool: #2 Phillips
screwdriver.
