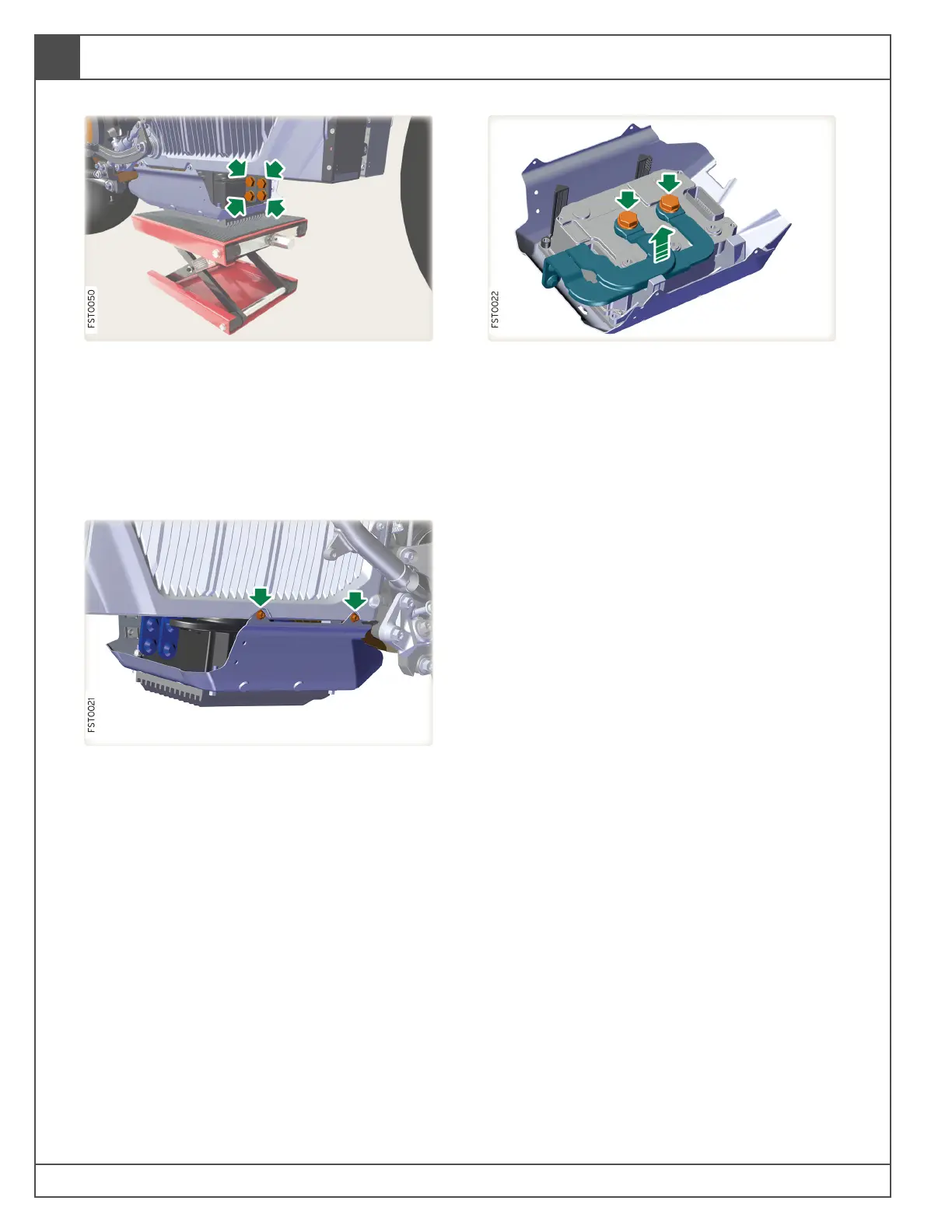

5. Remove bolts (x4) securing controller BUS
set. Torque 10 lb-ft (13.5 Nm).
Note: Support the controller using an
adjustable scissor jack.
WARNING: Check the voltage at the BUS
set. Reading should be 0 volts DC.
6. Remove T25 bolts (x4) securing controller
carrier to battery unit. Torque 3.5 lb-ft (5 Nm).
7. Using support lower the controller carrier.
8. Remove bolts (x3) securing motor leads (x3).
Note: Dispose of gaskets (x6).
9. Disconnect signal harness connector.
10. Remove bolts (x2) securing controller BUS set
to controller. Torque 11 lb-ft (15 Nm).
11. Remove controller BUS set.
Installation
1. Installation is the reverse of the removal
procedure except for the following:
2. Renew motor lead gaskets.
