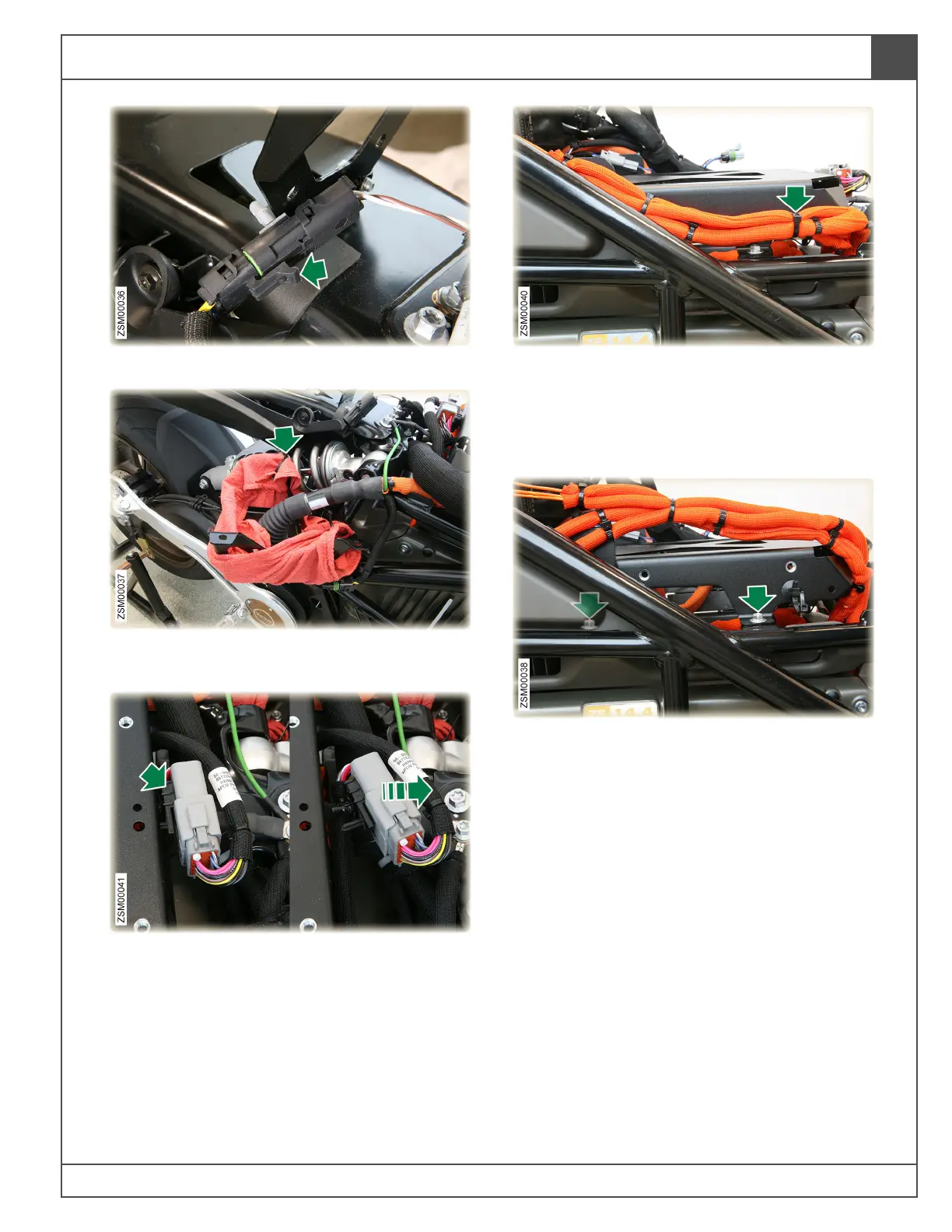

15. Disconnect harness connector.
16. Protect and secure charger port stand to the
side of motorcycle.
17. Release BMS signal harness connector
anchor from tank storage liner support. Tool:
Non-marring trim removal/pry tool.
18. Cut cable tie securing high voltage harness to
harness anchor on left side of storage liner
support.
Note: Replace cable tie during the installation
process.
19. Position the released high voltage harness
aside to gain access to storage liner support
bolts on left side.
20. Remove bolts (x2) securing left side of storage
liner support to frame. Tool: T30. Torque:
7.8 lb-ft (11 Nm).
