Charging System
Chargers 25-5
25

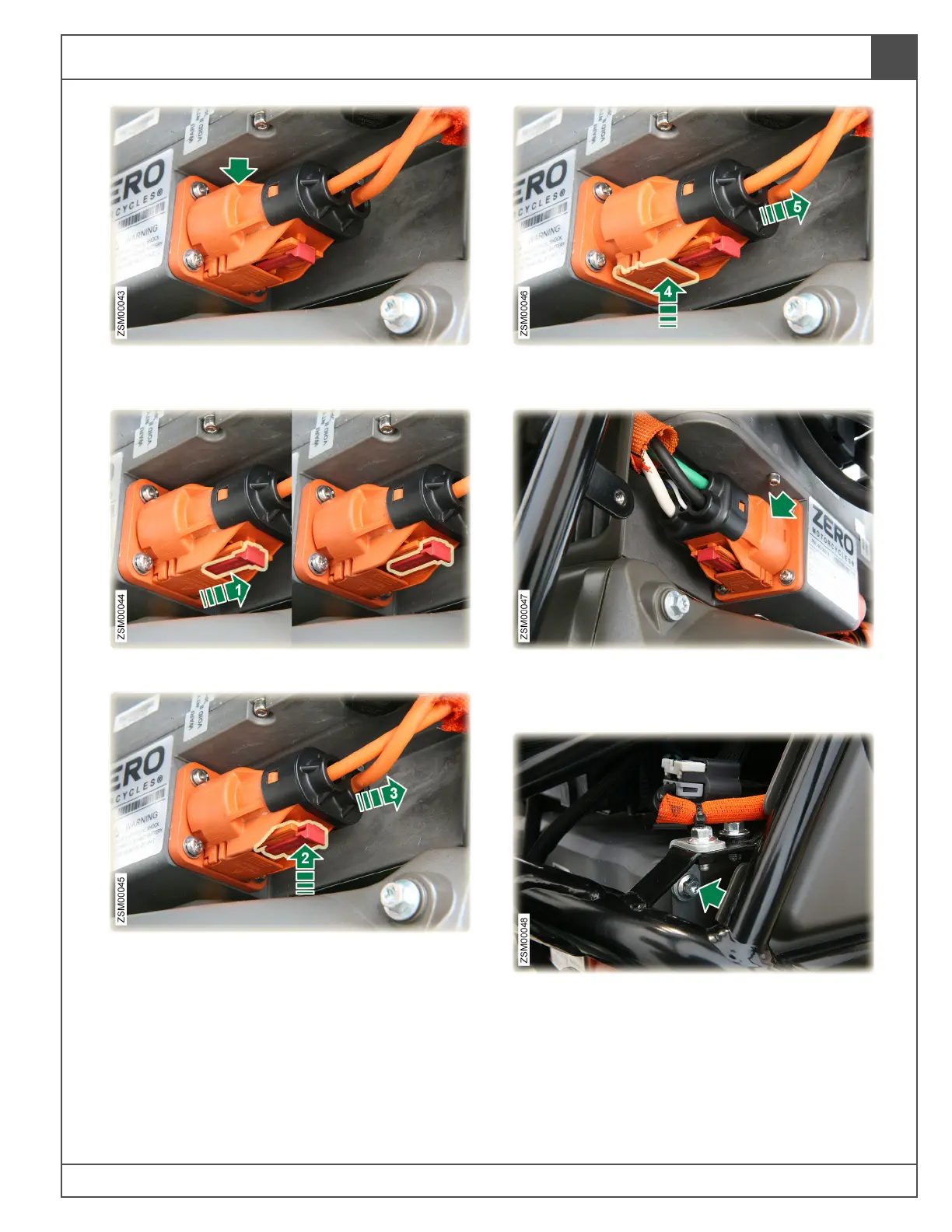

26. Disconnect left front high voltage connector
from charger.
27. Slide connector lock to unlock.
28. Push tab upward to release connector and
slide.
29. Push secondary tab and disconnect
connector from charger.
30. Following the same connector disconnecting
process, disconnect right front high voltage
connector from charger.
31. Remove bolt securing charger to left front
charger bracket. Tool: T20. Torque: 4.5 lb-ft
(6 Nm).
