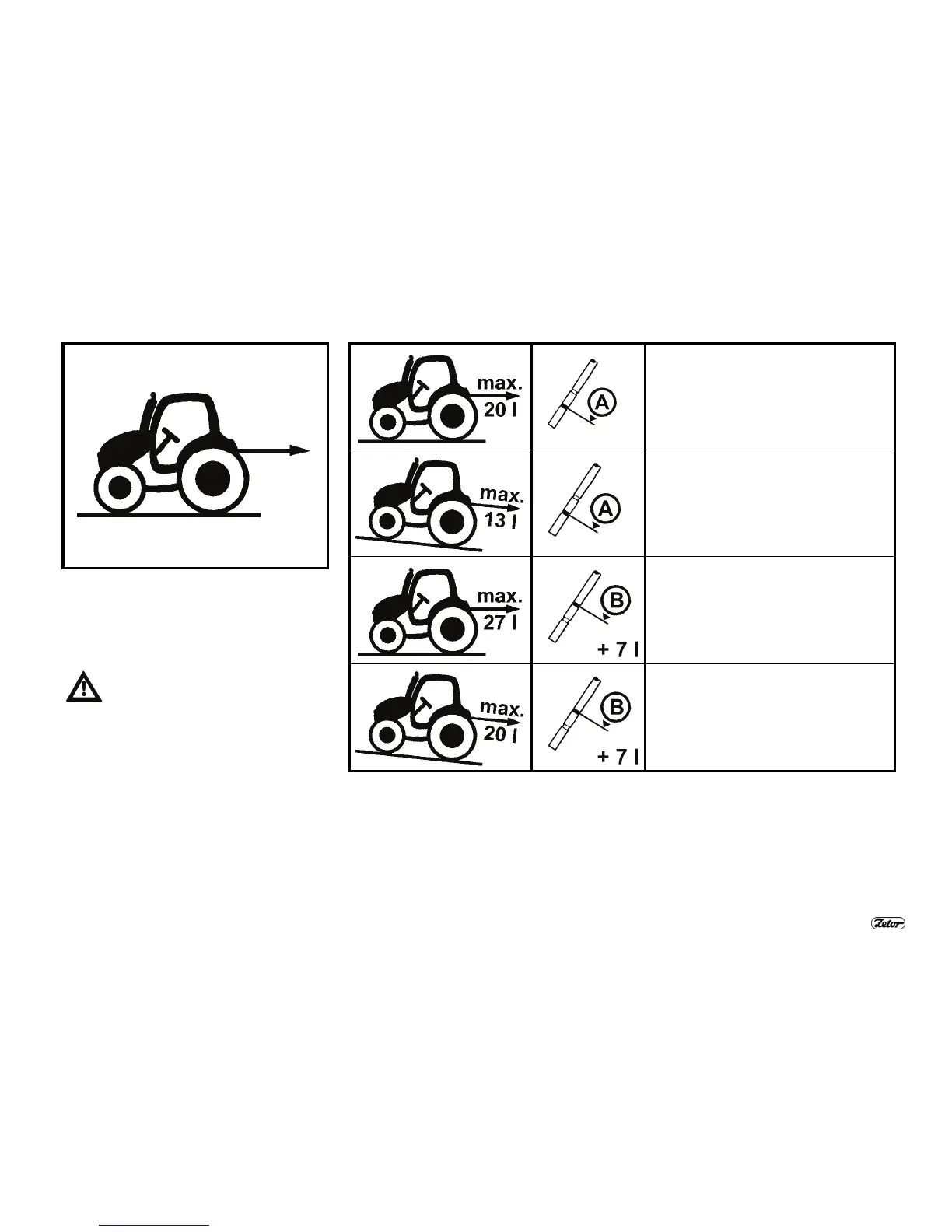

HYDRAULIC SYSTEM
E413
AMOUNT OF OIL TAKEN FROM
OUTER HYDRAULIC DRIVES
For maximum amount of oil taken see
the following table.
If the amount taken exceeds the
limit, hydraulic pump can absorb
air and can get damaged.
If the amount of oil in transmission
decreases after disconnecting the tool
due to its permanent outflow out of the
tractor into the machine’s hydraulic
circuit, refill the oil missing.
Working area: in flat terrain
Max. amount of oil taken: 20 liters
Gearbox filling: standard filling within the
range shown by lines (A)
Working area: in a slope
Max. amount of oil taken : 13 liters
Gearbox filling : standard filling within the
range shown by lines (A)
Working area : in flat terrain
Max. amount of oil taken : 27 liters
Gearbox filling : within the range shown
by lines (B)
gearbox oil filling increased by 7 liters
(max. amount of oil in gearbox allowed)
Working area : in a slope
Max. amount of oil taken : 20 liters
Gearbox filling : within the range shown
by lines (B)
gearbox oil filling increased by 7 liters
(max. amount of oil in gearbox allowed)
