ELECTRIC INSTALLATION
G612

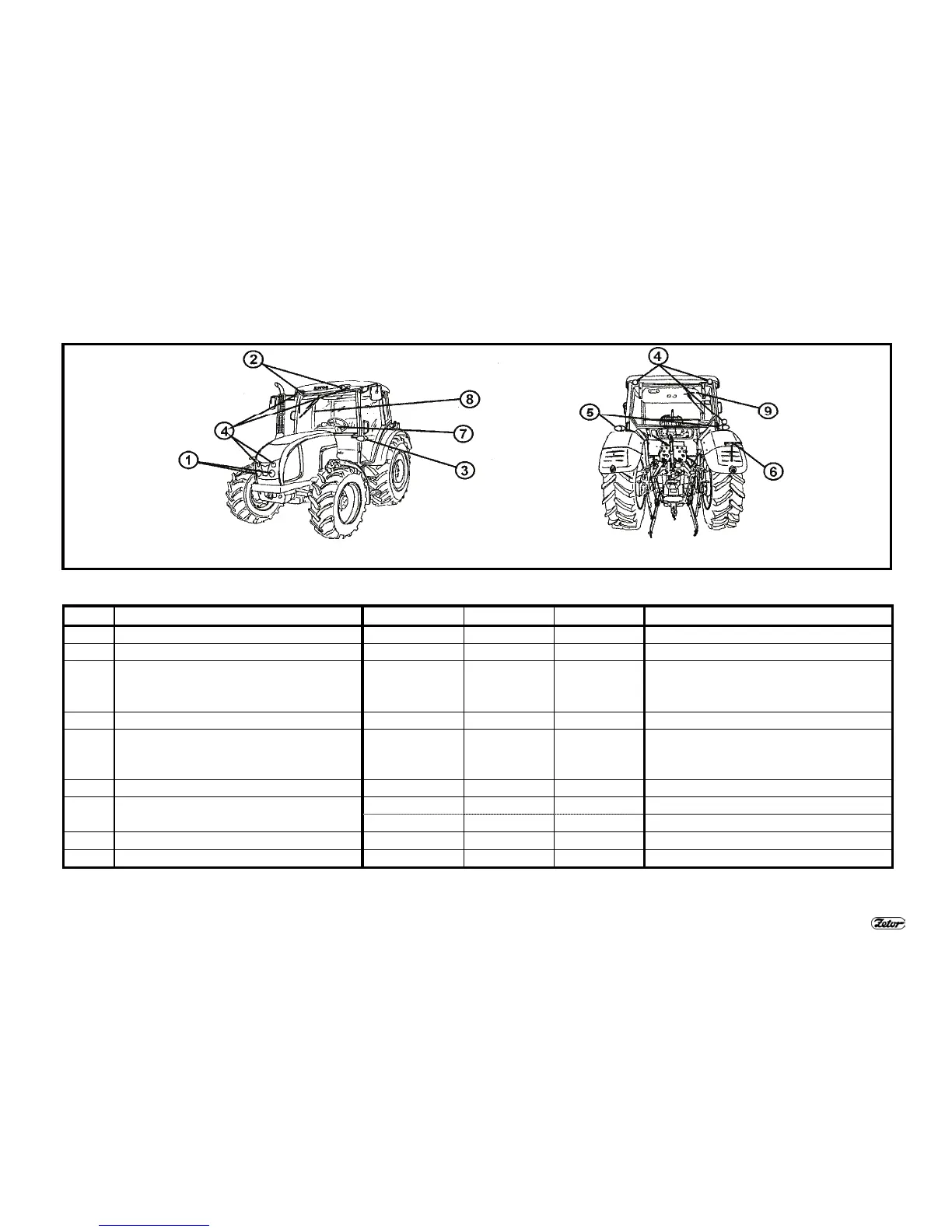

LIST OF LAMPS
Pos. Lamp position Voltage Power Socket Note
1 Main headlights H4 12 V 55/60 W P 43t
2 Roof low beam headlights H7 12 V 55 W PX26d
3 Front combined headlights
Turn signal lights P21W 12 V 21 W BA 15s
Position lights R5W 12 V 5 W BA 15s
4 Working and ploughing lights 12 V 65 W PGJ19-5
5 Rear combined lights
Tail lights and brake lights 12 V 5 /21W BAY 15d
Turn signal lights 12 V 21 W BA 15s
6 Registration no. lighting C5W 12 V 2x5 W SV 8,5-8
12 V 2 W W2x4,6d illumination, charging indicator 7
Dashboard, switches
12 V 1,2 W W2x4,6d other indicators
8 Cabin lighting 12 V 5 W SV 8,5-8
9 Heating panel lighting 12 V 1,2 W W2x4,6d
