145
ELECTRIC INSTALLATION
FH12N029

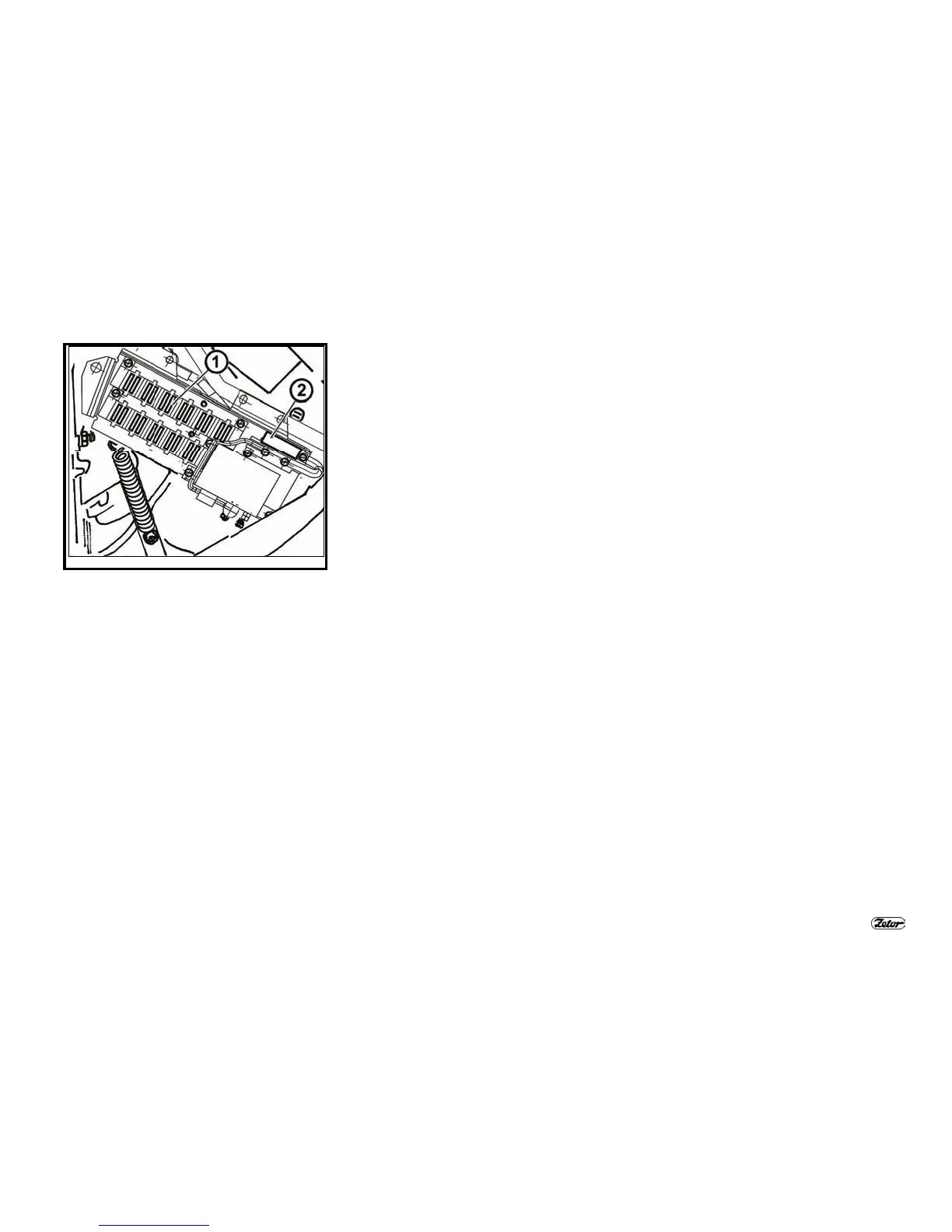

FUSE BOX
It is accessible after removal of the left
cover of the steering bracket.
The blade-type fuses (1) shall be re-
placed for new ones having the same
rating. In case of repeated blowing seek
an authorised repair shop.
Rating of the strip-type fuse (2) is 80 A.
145
147
Table of Contents
Table of Contents
4
Location of Serial Numbers
6
Policy of Correct Use for Proxima Power Tractors
8
Safety Instructions for Users
17
Preventive Daily Maintenance
21
Acquaintance with the Tractor
26
Door Opening from the Inside
29
Door Opening from the Outside
29
Safety Cab
29
Rear Window
30
Side Window
30
Tilting Lid
30
Rearview Mirrors
31
Right Rear Panel
31
Passenger´s Seat
32
Washer Control
33
Washer Nozzle
33
Washer Tank
33
Adjustment for the Driver'sweight
34
Longitudinal Adjustment
34
Mars Svratka Driver's Seat
34
Vertical Adjustment
34
Grammer Maximo Driver's Seat
35
Grammer S Driver's Seat
35
Air Filter with Active Carbon
36
Air-Conditioning Switch (C)
37
Control Panel of Heating, *Air-Conditioning, *Radio
37
Fan Control (B)
37
Heating Valve Control (A)
37
Control of Air Circulation in the Cab (D)
38
Fast Heating of the Cab Space
38
Proper Function of the Heating and Air-Conditioning System
38
Fast Cooling of the Cab Space
39
Heating or Air-Conditionig Operation During Work of the Tractor
39
Immediately after Cooling down the Cab
39
Control Panel on the Right Cab Pillar
40
Front Windshield Defrosting
40
Heating and Air-Conditioning Outlets,Radio Speakers
40
Control Panel on the Cab Right Piller
41
Tilt and Telescope Steering Wheel
42
Tilt Steering Wheel
42
Digital Dashboard - Indicators
44
Buttons
46
Description of Instruments
46
Diesel Particle Filter
47
Display of Pto Speed
47
Selectors, Switches and Levers
48
Light Switch (A)
49
Switch of Grill and Cab Headlights (B)
49
Switch of Warning Lights (E)
49
Rear Differential Lock Button (J)
50
Switch of the Front Driving Axle (F)
50
Automatic Gear Change of Multiplier
51
Controller of Multiplier Pre-Selection
51
Blocking and Automatic Gear Change of Multiplier
53
Key in "0" Position
54
Key in "I" Position
54
Switching Box
54
Engine Stopping Control
55
Key in "II" Position
55
Manual Throttle Lever
55
Gear Shifting Lever
56
Gear Shifting Plan
56
Pedals
56
Reversing Lever
57
Selector of Turn Signal, Low and High Beam Lights and Horn (K)
57
Shifting Lever of Road and Reduced Gears
57
PTO Drive Control
58
Rear PTO Drive Control Lever
58
Rear PTO Speed Control Lever, 540 and 1000 (or 540E) RPM
58
Battery Disconnector
59
Hydraulics Control Panel
59
Lever of the Parking Brake and Hitch for a Single-Axle Trailer
59
Drain Plug of the Fuel Tank
60
Fuel Tank
60
Tractors with the Travelling Speed of 40 KM/H
60
Driving Operation
62
Before Starting the Engine
64
Starting the Engine
64
Handling the Starter Motor
65
If the Engine will Not Start
65
Indication of Errors of the Glowing System
65
Engine Preheating
66
Immediately after Starting
66
Coolant Heater
67
Starting the Engine with the Use of the Coolant Heater
67
Gear Shifting
68
Reversing Lever
68
Shifting of Road and Reduced Gears Speeds
68
Shifting from Higher to Lower Gear Speed
69
Shifting from Lower to Higher Gear Speed
69
Three-Stage Torque Multiplier
69
Increasing, Reducing the Travelling Speed by Two Gears
70
Indication of the Multiplier Function
70
Shifting the Stages of the Torque Multiplier
70
Diesel Particle Filter
71
Before Driving the New Tractor Diesel Particle Filter Failure Codes
72
Diesel Particle Filter - System Failures Signalization
72
First Get Acquainted with the Gear Diesel Particle Filter Regeneration
73
Shifting Pattern and Test Individ-Setting in Motion - Using the Clutch Pedal
74
Changing the Driving Direction - Using the Clutch Pedal
75
In Normal Operation, before You Changing the Driving Direction with the Automatic Function
75
Ual Positions of the Shifting Lever Setting in Motion with the Automatic Function
75
Start, You Must Make Sure that the Gear Shifting - Using the Clutch Pedal
76
Technical Condition of the Tractor Gear Shifting - Using the Clutch Control Button on the Shifting Lever Head
76
Corresponds to Requirements for Indication of Errors of the System of Travelling Clutches and Reversing
77
Driving Downhill
78
Driving Uphill
78
Control of the Front Driving Axle
79
Differential Lock
79
Driving with the Front Driving Axle Engaged
79
Air Brakes of Trailers and Semi-Trailers
80
Foot Brakes
80
Warning Indication of an Air Pressure Drop
80
Double-Hose Brakes
81
Single-Hose and Double-Hose Brakes
81
Wingle-Hose Brakes
81
Connecting and Disconnecting Quick-Couplings of Hydraulic Brakes of the Trailer
82
Hydraulic Brakes of Trailers
82
Leaving the Tractor
83
Stopping the Engine
83
Stopping the Tractor - Parking Brake
83
Important Warning
84
Quick-Couplings with Drip Collection
84
Warning Indication of Ahydrostatic Steering Error
84
Running in the Tractor
86
Transportation
90
CBM Stage Quick-Adjusting Hitch
91
Front Hook
91
Height Adjustment and Disassembly of the CBM Stage Hitch
91
Automatic Mouth of the CBM Stage Hitch
92
Modular System of Hitches for Trailers and Semi-Trailers
92
Swinging Draw-Bar Console Module
92
Console with a Ø 80 Ball Module
93
Swinging Draw-Bar Console with a Fixed Pin Module
93
Towing Bar
93
Attaching a Single-Axle SEMI-Trailer
94
Disconnecting a Single-Axle Semi-Trailer
94
Hitch for a Single-Axle Cbm Semi-Trailer
94
Aggregation with a Semi-Trailer or Trailer
95
Hitch Hook for a Single-Axle Semi-Trailer
95
Maximum Permissible Vertical Static Load of Hitches for Trailers and Semi-Trailers
96
Drive of Agricultural Machines
98
Control of the Front and Rear PTO
99
Working with PTO
99
Front PTO
100
Rear PTO - Dependent and Independent Speed Selection
100
Rear PTO - Selecting the Pto Speed of 540 and 1000 or 540E RPM
100
Exchangeable Rear PTO End Pieces
101
Maximum Transmitted Power
101
Drive of Machines with Larger Inertial Masses (Crushers, Rotary Harrows, Mowing Machines, Etc.)
102
Hydraulic System
104
Hydraulic System
105
Hydraulics Control Panel
106
Ways to Regulate Inner Hydraulic Circuit
106
Adjustable Stop
107
Controlling the Inner Hydraulic Circuit
107
Free (Floating) Position
107
Hydraulic System Sensitivity Control
108
Three-Point Hitch Lowering Speed Control
108
Position Regulation of the Lifting of the Rear Three-Point Hitch
109
Power Regulation of the Lifting of the Rear Three-Point Hitch
110
Mixed Regulation of Lifting the Rear Three-Point Hitch
111
Exterior Rear Hydraulic Arms Controls
112
Outer Hydraulic Circuit
112
Outer Hydraulic Circuit Controls
113
Locking Control Levers
114
Different Functions of Outer Hydraulic Circuit Control Levers
115
Amount of Oil Taken from Outer Hydraulic Drives
118
Connecting and Disconnecting Quick Couplers
119
Quick Couplers with Dripping Oil Reservoir
119
Connecting Machinery and Tools Assembled from more Parts
120
Connecting Machinery and Tools to Outer Hydraulic Circuit
120
Hitches
122
Rear Three-Point Hitch
123
Safety Principles of Working with the Three-Point Hitch
123
Fixed and Free Position of the Lower Hydraulic Draw-Bars
124
Height Adjustment of the Lifting Draw-Bars
124
Limiting Draw-Bars
124
Selecting Openings in the Console
125
Upper Draw-Bar
125
Lower Draw-Bars with Cbm Hooks
126
Lower Draw-Bars with Extensible End Pieces
126
Securing the Lower Draw-Bars with CBM Hooks
126
Adjusting the Lowering Rate of the Front Three-Point Hitch
127
Front Three-Point Hitch
127
Controlling Front Three-Point Hitch
128
Driving with Agricultural Machines Attached to the Front Three-Point Hitch
129
Hydraulic Lock of the Front Three-Point Hitch
129
Working and Transport Position of the Front Three-Point Hitch
129
Wheel Track Change
130
Changing the Front Wheel Track of the Front Driven Axle
131
Setting the Stops on the Front Driving Axle
132
Front Wheel Toe-In
133
Adjustment of Toe-In of Tractors with the Front Driving Axle
134
Fenders of the Front Driving Axle
134
Rear Wheel Track Change
135
Ballast Weights
136
Rear Wheel Weights
137
Weights in Front of the Hood Grill
137
Weights of the Front Three-Point Hitch
137
Valve for Filling Tyres with Liquid
138
Wedging the Front Wheels
138
Procedure of Draining Liquid from the Tyres
139
Procedure of Filling the Tyres with Water
139
Antifreeze Solution for Tyre Filling
140
Maximum Liquid Weight (Kg) by Tyre Dimensions
140
Electric Installation
142
Basic Service Information
143
Accumulator Battery
144
Accumulator Battery Maintenance
144
Alternator
145
Alternator Maintenance
145
Fuse Box
146
Placement of Fuses in Fuse Box
147
Adjustment of the Front Grill Headlights
148
Checking and Adjusting Front Grill Headlights
148
Checking the Adjustment of the Cab Roof Headlights
149
List of Lamps
150
Tractor Maintenance
152
Steps Performed Daily before the Start of Work
153
Steps Performed Every 100 Hours of Work
153
Steps Performed Every 50 Hours of Work
153
Steps Performed Every 500 Hours of Work
154
Steps Performed Outside the Interval of 500 Hours of Work
154
Filling and Filter Replacement
155
Used Operation Liquids and Filling - Quantities
156
Front PTO Oil
157
Oil for Zetor Engines Equipped with Diesel Particle Filter
157
Oils for Zetor Engine
157
Specification of Oils for Zetor Engines Equipped by Diesel Particle Filter
157
Oil in the Gearbox and Final Drive Housing
158
Oil for Hydrostatic Steering of Tractors
159
Oil for the Front Driving Axle
159
Hydraulic Brake Liquid for Tractors
160
Plastic Lubricant for the Tractor
160
Fuel for Zetor Engines Which Are Equipped with Diesel Paricle Filter
161
Liquid for the Cooling System of Tractors
161
Front Driven Axle
162
Lubrication Plan of the Tractor
162
Front Three-Point Hitch
163
Hitch for a Single-Axle Semi-Trailer
163
Three-Point Hitch
164
Hitch Mouth for a Trailer
165
Upper Draw-Bar Console
165
General Overhaul of Proxima Power Tractors
166
Technical Maintenance of Tractors after a General Overhaul of the Main Groups
166
Maintenance Instructions
168
Checking the Oil Level in the Engine
169
Draining Oil from the Engine
169
Opening the Hood
169
Filling the Engine with Oil
170
Replacing the Full-Flow Engine Oil Cleaner
170
Bleeding the Fuel System
171
Replacing the Fuel Filter Element
171
Checking the Oil Level in the Hydrostatic Steering Tank
175
Replacing Oil and the Filter Element of Hydrostatic Steering
175
Bleeding the Hydraulic Circuit of Hydrostatic Steering
176
Replacing the Hydrostatic Steering Hoses
177
Coolant Replacement
178
Checking and Replacing Oil in the Gearbox, Final Drive Housing and the Rear Axle Gantries
179
Drain and Inspection Openings
179
Changing Suction Filter
180
Chaning Insertion of Oil Cleaner
180
Filling, Inspection and Drain Opening of Oil of the Front Wheel Reducers
182
Lubrication and Filling Points of the Front Driving Axle
182
Air Filter with Active Carbon
183
Cleaning the Heating Filters
183
Checking the Air Systems for Leaks
184
Working Pressure of Air Brakes
185
Air-Conditioning Maintenance
185
Maintenance and Treatment of Tyres
186
Tyre Inflation
186
Installing the Carbon Filter
184
The Execution of more Complicated Tasks Draining Condensate from the Air Reservoir
184
Storing the Tractor
186
Gearbox Distributor - Replacing the Oil Cleaner Element
187
Adjustment
188
Tensioning the V-Belt
189
Tensioning the V-Belt of the AC Compressor
189
Bleeding the Brake System of the Tractor
190
Bleeding the Main Brake Valve for Trailers
191
Bleeding the Rear Wheel Brakes
192
Bleeding the Brake System of the Front Driving Axle
193
Bleeding the Hydraulic Brakes of a Trailer
194
Check and Adjustment of the Foot and Parking Brake
195
Foot Brake Adjustment
195
Parking Brake Adjustment
196
Adjusting the Bowden Cable
197
Adjusting the Hitch for Asingle-Axle Semi-Trailer
197
Calibration of Travel Speed of Digital Dashboard
198
Main Technical Parameters
200
Main Dimensions of the Tractor (MM)
201
Technical Data of Tractor Engines
202
Max. Permissible Load of the Front Axle Carraro 20.16 (Kg)
204
Maximum Permissible Load of the Rear Axle (Kg)
204
Maximum Permissible Weight of the "Tractor + Machine" Set (Kg)
205
Steering Control Condition
205
Change of the Load Capacity of the Front Tyres
206
Load Capacity of the Front Tyres
206
Change of the Load Capacity of the Rear Tyres
207
Load Capacity of the Rear Tyres
207
Permitted Combinations of Wheels for Tractors
208
Lifting Force of the Three-Point Hitch
209
Power
209
Forward Travelling Speed of the Tractor - 40 Km/H
210
Backward Travelling Speed of the Tractor - 40 KM/H
211
Front PTO Speed
212
Independent Rear PTO Speed
212
Outer Outline and Track Turning Diameter
213
Index
214
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Zetor PROXIMA POWER Z90 2012 and is the answer not in the manual?
Ask a question
Zetor PROXIMA POWER Z90 2012 Specifications
General
Brand
Zetor
Model
PROXIMA POWER Z90 2012
Category
Tractor
Language
English
Related product manuals
Zetor PROXIMA POWER Z120 2012
222 pages
Zetor Proxima 80
220 pages
Zetor Proxima 90
220 pages
Zetor Proxima 100
220 pages
Zetor Proxima 8441
41 pages
Zetor Proxima 7421
41 pages
Zetor Proxima Series
220 pages
Zetor Proxima Plus 85
197 pages
Zetor Proxima 80 2012
214 pages
Zetor PROXIMA PLUS 90
254 pages
Zetor PROXIMA PLUS 8541
223 pages
Zetor PROXIMA HS Series
212 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
