Ziehm Imaging, Inc. QUANTUM User Manual

Section 8.0
MAN 06–0017H
ZIEHM QUANTUM User’s Manual Page 117 of 220
4. To increase magnification four times, press the 4X button. The window on the left window will be
smaller, representing the area on the reference monitor.
Press the ZOOM button or press ESC to exit the function. The right monitor will continue to display
the last magnified image.
Magnified images can be stored to the hard drive or USB storage device by pressing the
respective store function. The operator can store the image to the patient file as a magnified
image and can be recalled latter and exported.

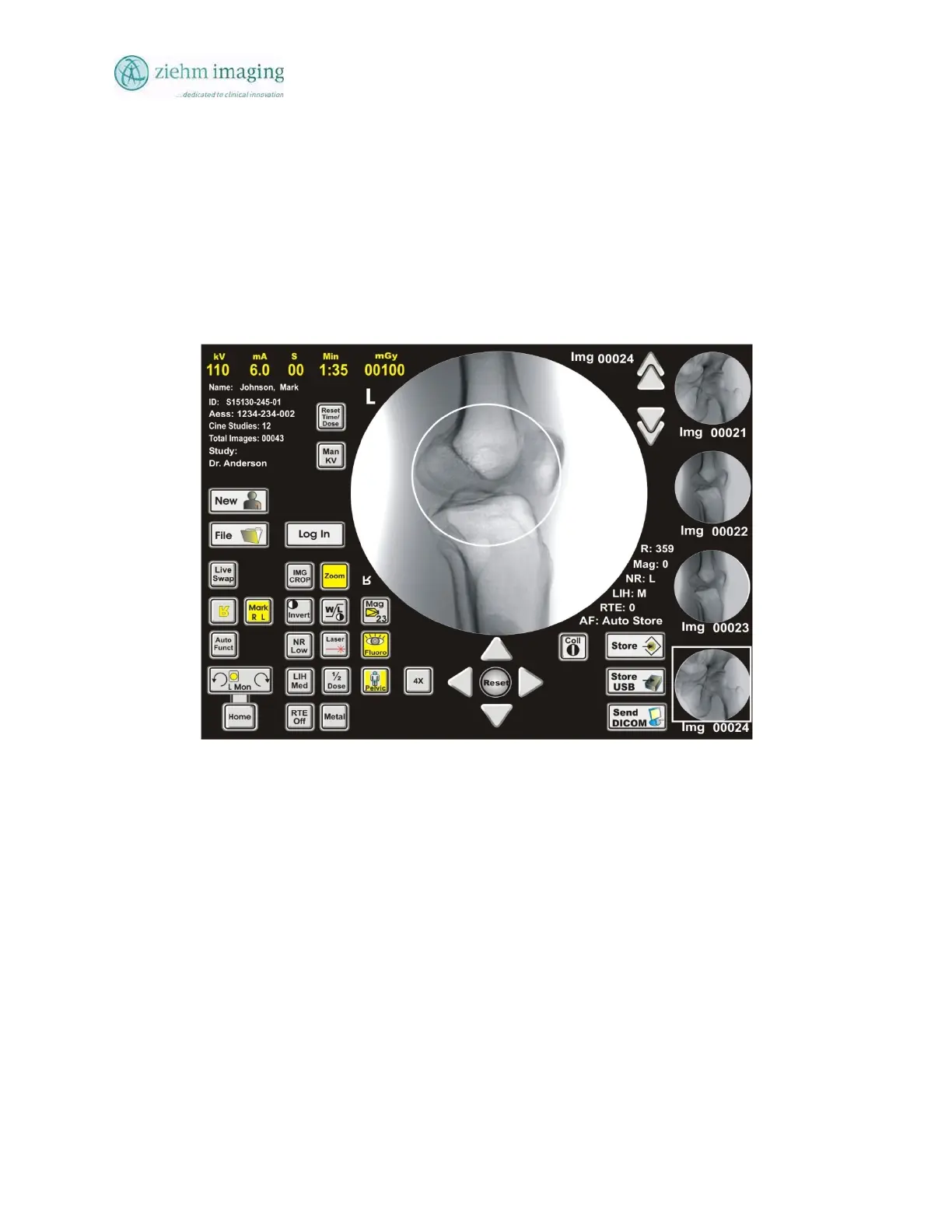

Fig 8.4: ZOOM Touch Screen Display
