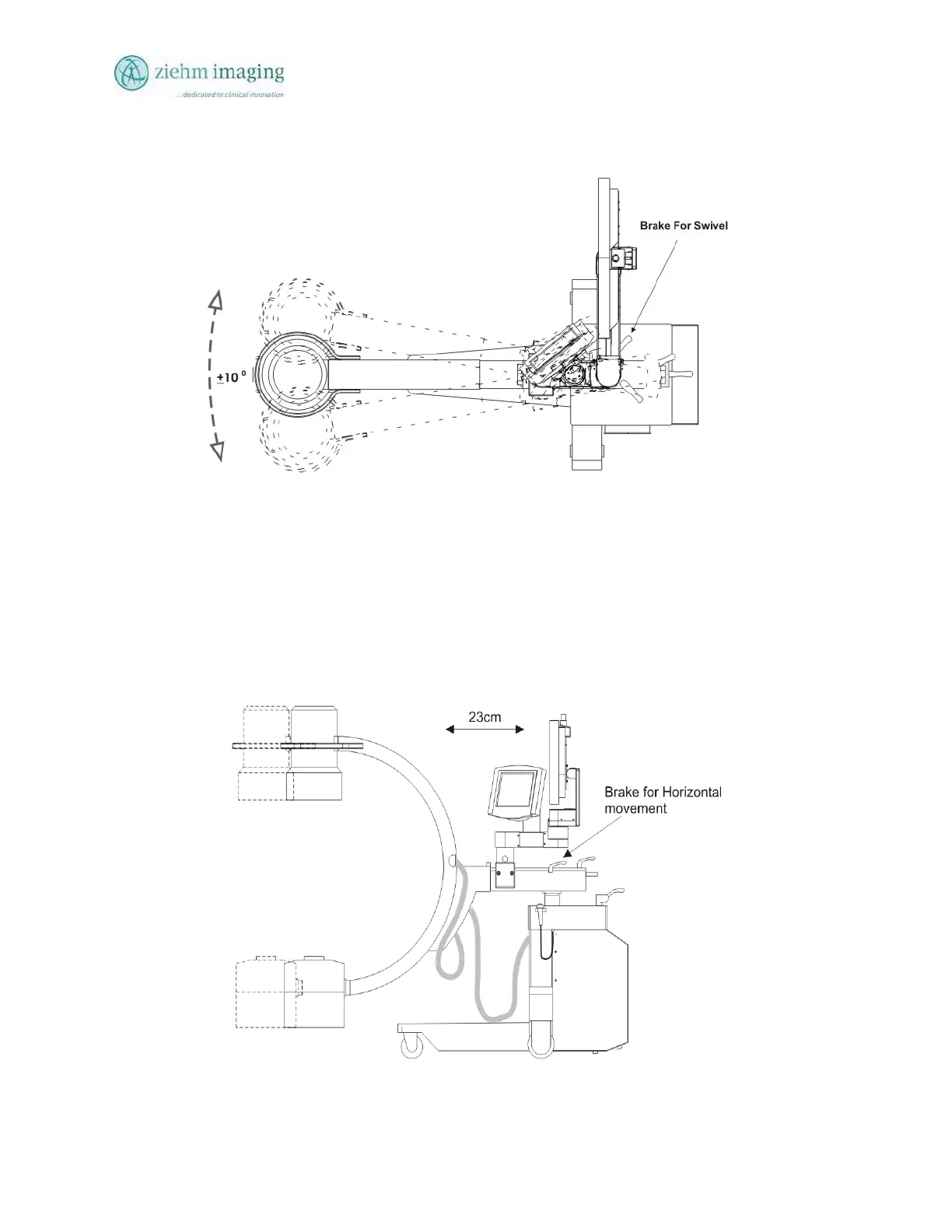

Figure 5.6: Swiveling (panning) of the C-Arm (view from above)

When using the Swivel or Panning function for the c-arm you may need to reposition the

monitors for a clear view of the image displays.

5.3.4 HORIZONTAL MOVEMENT

You can move the C-arm forward and backward by 22 cm in the horizontal plane by means of the

horizontal carriage. A scale with 1 cm divisions is provided to facilitate precise positioning.

Fig 5.7 Horizontal movement
