Section 10.0
MAN 06–0017H
ZIEHM QUANTUM User’s Manual Page 151 of 220

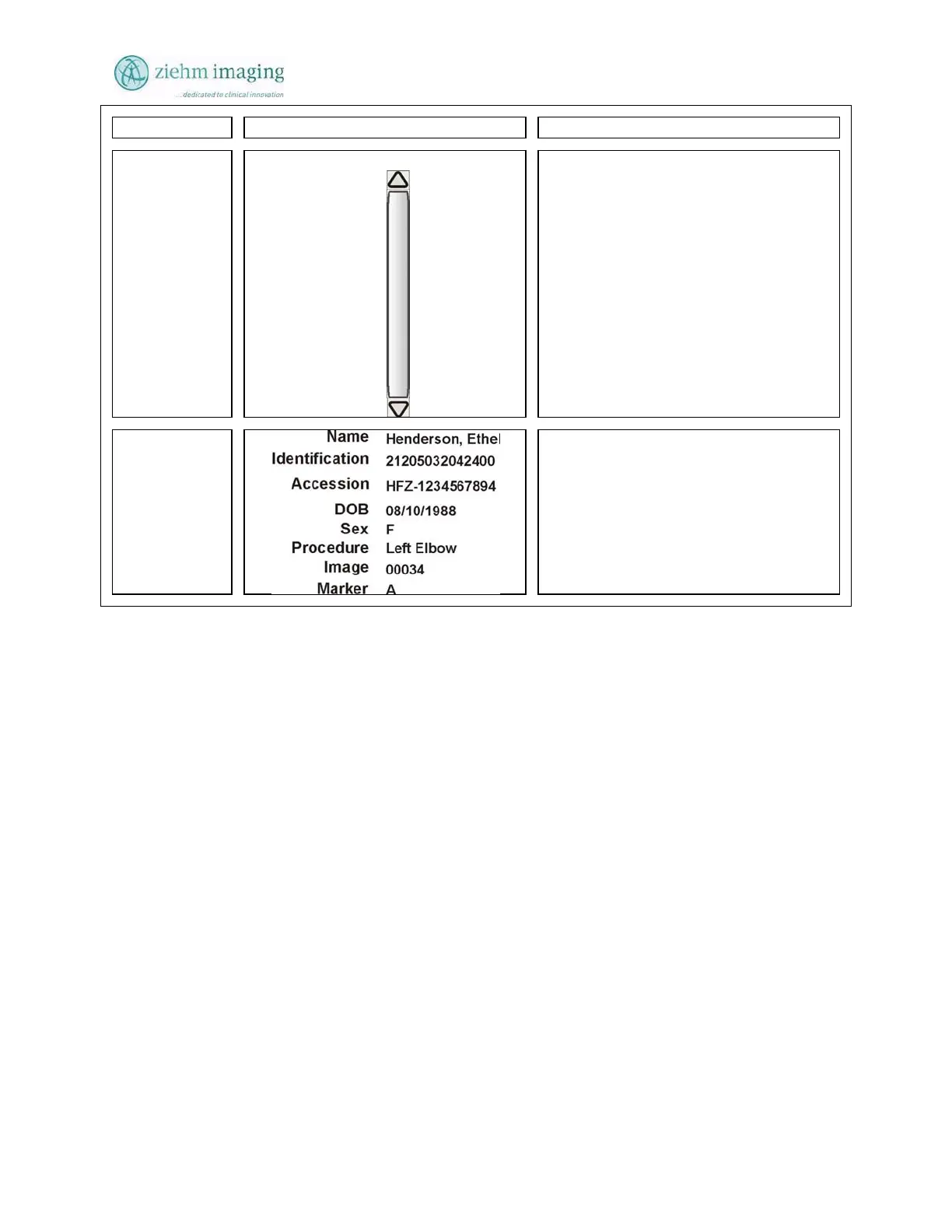

Control No. Symbol(s) Description
Button 16
File Scroll Bar
File Scroll Bar
When there are more patient records than
can be seen on one screen the Scroll Bar
will be seen,
The center indicator gives a reference o
the placement in the file.
Touch then slide the small marker in the
center of the Scroll Bar to view more
patients
Button 17
Patient Data:
The patient information for Archive
functions is located on the upper part of the
Archive screen. To select a patient for
archive and to mark images for export just
touch the patient information line on the
screen. Wait a second to update the system
and display images.
10.10.4 SELECTING IMAGE FORMAT:
In the archive screen there are three types of Bit Mapped Graphic image formats that can be
exported.
1. BMP: This is a full 1 k x 1k image. This provides an image with no image data lost. BMP
image format provides the best possible image. Image size is about 3.1Mega Bytes
2. JPG: This is a 512 x 512 image. By its nature the contrast has been reduced so there is a
loss in image quality. This image format should not be used where high quality imaging is
required. Image size ranges is approximately 310 KB.
3. TIFF: This is a 1k x 1k image with some image quality lost in the conversion of the
Dynamic range. The image size ranges about 1.05 MB.
4. DICOM Media (Option): This is a special image format that requires a special image
viewer (DICOM 3) to view images. The image has full resolution 1K x 1K. Image size is
1.05MB. Some quality lost in the conversion of the Dynamic range.
The DICOM MEDIA export function when completed will copy a special image viewer to
the USB device or DC/DVD disk so the operator may view these images without having a
DICOM server workstation. The viewer is simple to use and is more or less self
explanatory in use.
