SpeedFace-V5L [TI] User Manual
Page | 29 Copyright©2020 ZKTECO CO., LTD. All rights reserved.
5.1.2 User Role

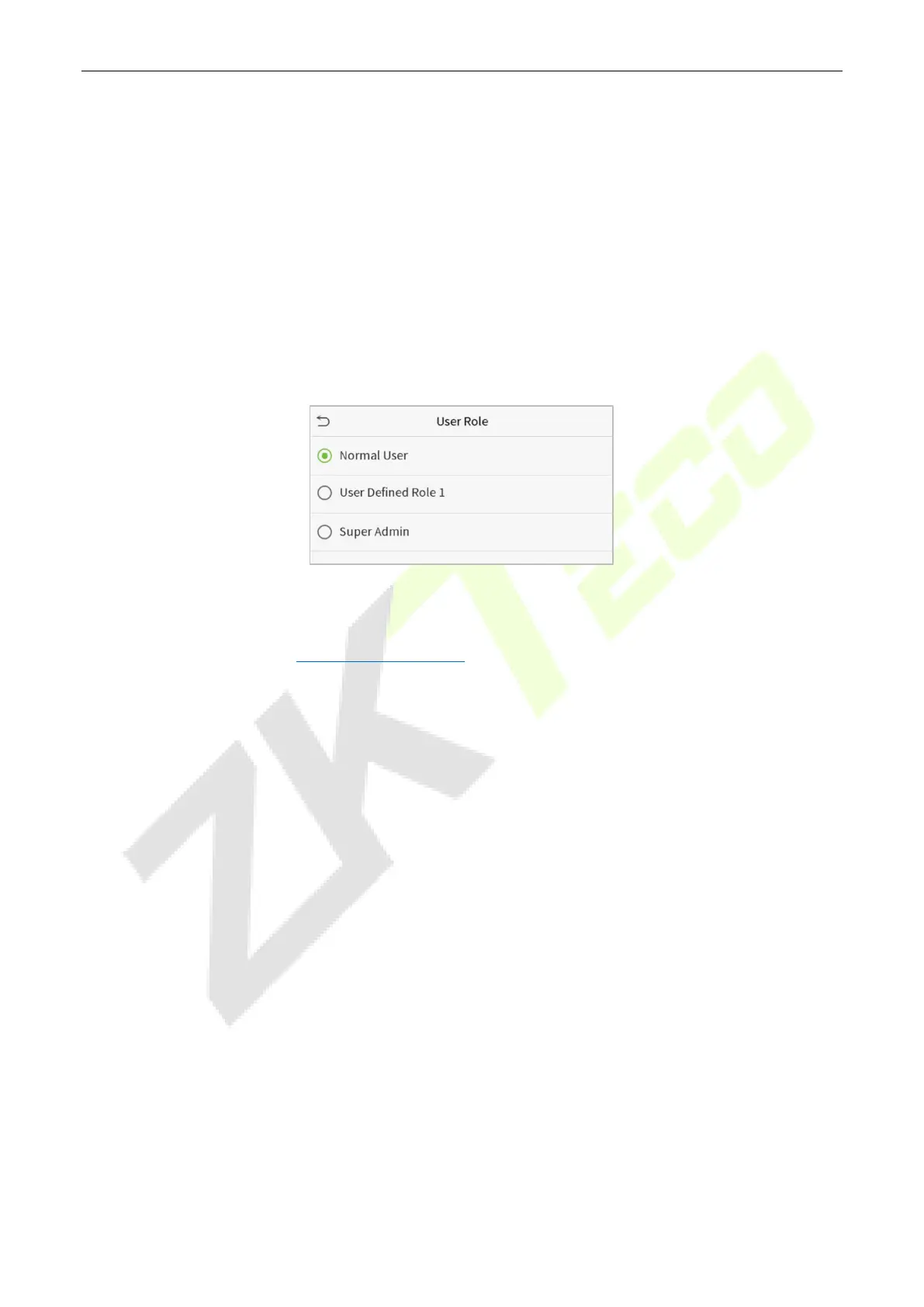

On the New User interface, tap on User Role to set the role for the user as either Normal User or Super
Admin.
• Super Admin: The Super Administrator owns all management privileges in the Device.
• Normal User: If the Super Admin is already registered in the Device, then the Normal Users will
not have the privileges to manage the system and can only access authentication verifications.
• User Defined Roles: The Normal User can also be set with User Defined Role which are the
custom roles that can be set to the Normal User.
Note: If the selected user role is the Super Admin, the user must pass the identity authentication to access
the main menu. The authentication is based on the authentication method(s) that the super administrator
has registered. Please refer to 3.7 Verification Method.
5.1.3 Palm
Tap Palm in the New User interface to enter the palm registration page.
• Select the palm to be enrolled.
• Please place your palm inside the guiding box and keep it still while registering.
• A progress bar shows up while registering the palm and a “Enrolled Successfully” is displayed as
the progress bar completes.
• If the palm is registered already then, the “Duplicate Palm” message shows up. The registration
interface is as follows:

ZKTeco SpeedFace-V5L TI Specifications

General

Device Type	IP Access Controller
Model	SpeedFace-V5L TI
Fingerprint Capacity	10, 000
Card Capacity	10, 000
RFID Capacity	10, 000
Transaction Capacity	200, 000
Logs Capacity	200, 000
Display	5-inch Touch Screen
Wiegand Signal	Wiegand Input/Output
Temperature Detection	Yes
Palm Capacity	3, 000
Communication	TCP/IP, Wi-Fi
Interfaces	RS485, USB Host
Authentication Method	Face, Palm, Card, Fingerprint, Password
Face Recognition Speed	<0.3s
Power Supply	12V 3A
Face Capacity	6, 000 (1:N)
