Zmorph FAB User Manual

Zmorph Fab - QUICK START GUIDE 12
Setting up Zmorph Fab




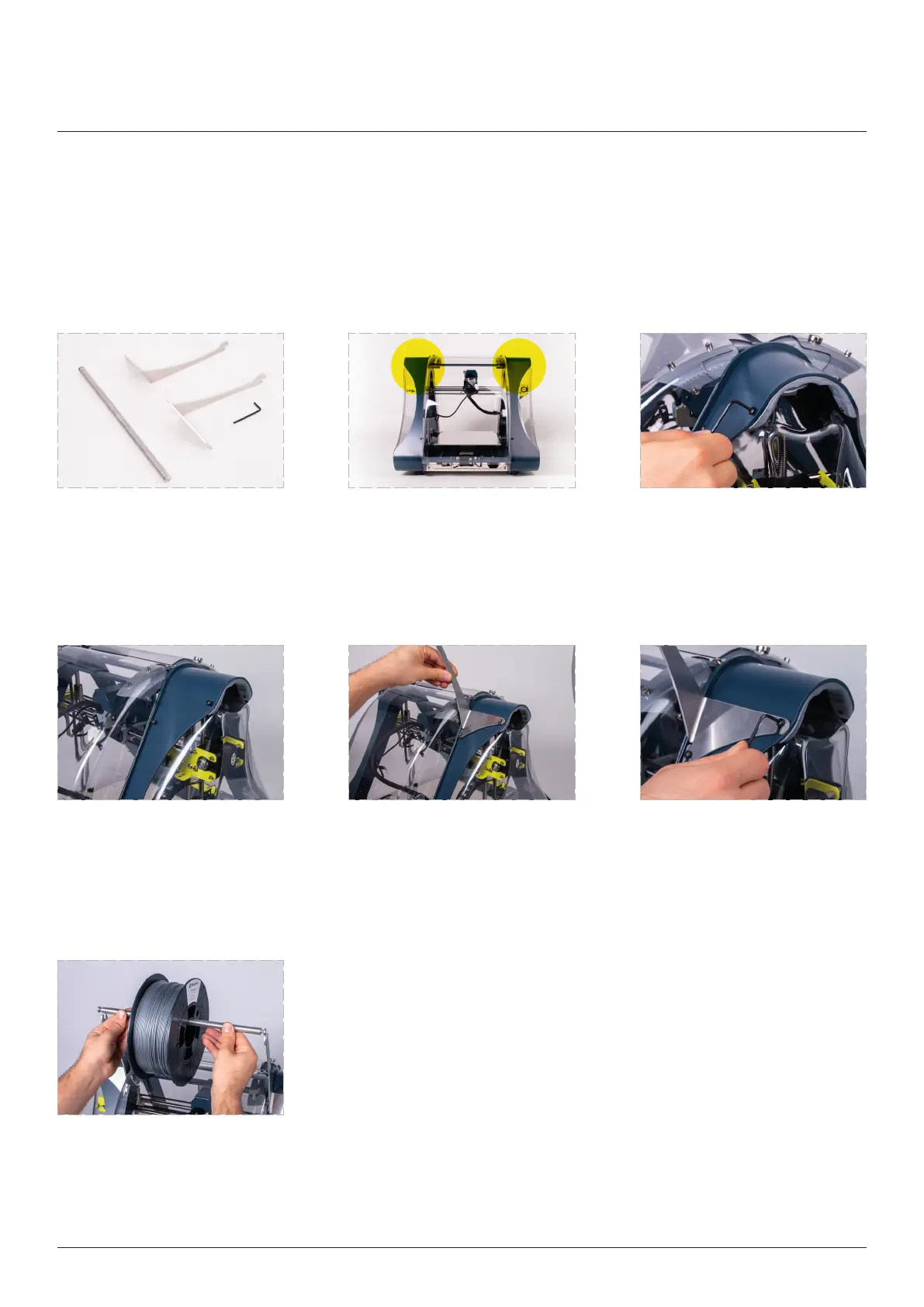

6.3 Assembling the spool holder
For a better experience with the Zmorph Fab machine, it is recommended to assemble the dedicated spool holder.

components and a 2.5 mm
Allen key.
Look at the back of Zmorph
Fab. Spool holder attachment
screws are placed at the top
of the frame and highlighted
on the picture.
Loosen the frame screws with
a 2.5 mm Allen key.
Loosen the screws to the
point where you can slide the
spool holder.
Slide the spool holder in
place.
Tighten the screws.

Zmorph FAB Specifications

General

Build Volume	250 x 235 x 165 mm
Nozzle Diameter	0.4 mm
Filament Diameter	1.75 mm
Print Speed	up to 100 mm/s
Software	Voxelizer
Dimensions	530 x 555 x 480 mm
Layer Resolution	0.05 - 0.3 mm
Connectivity	USB, Ethernet
Supported Materials	PLA, ABS, PETG, TPU, Nylon
Power Supply	24V DC
Print Technology	Fused Filament Fabrication (FFF)
Extruder Type	Single Extruder
Display	5-inch capacitive touchscreen
