Zoom F1 User Manual

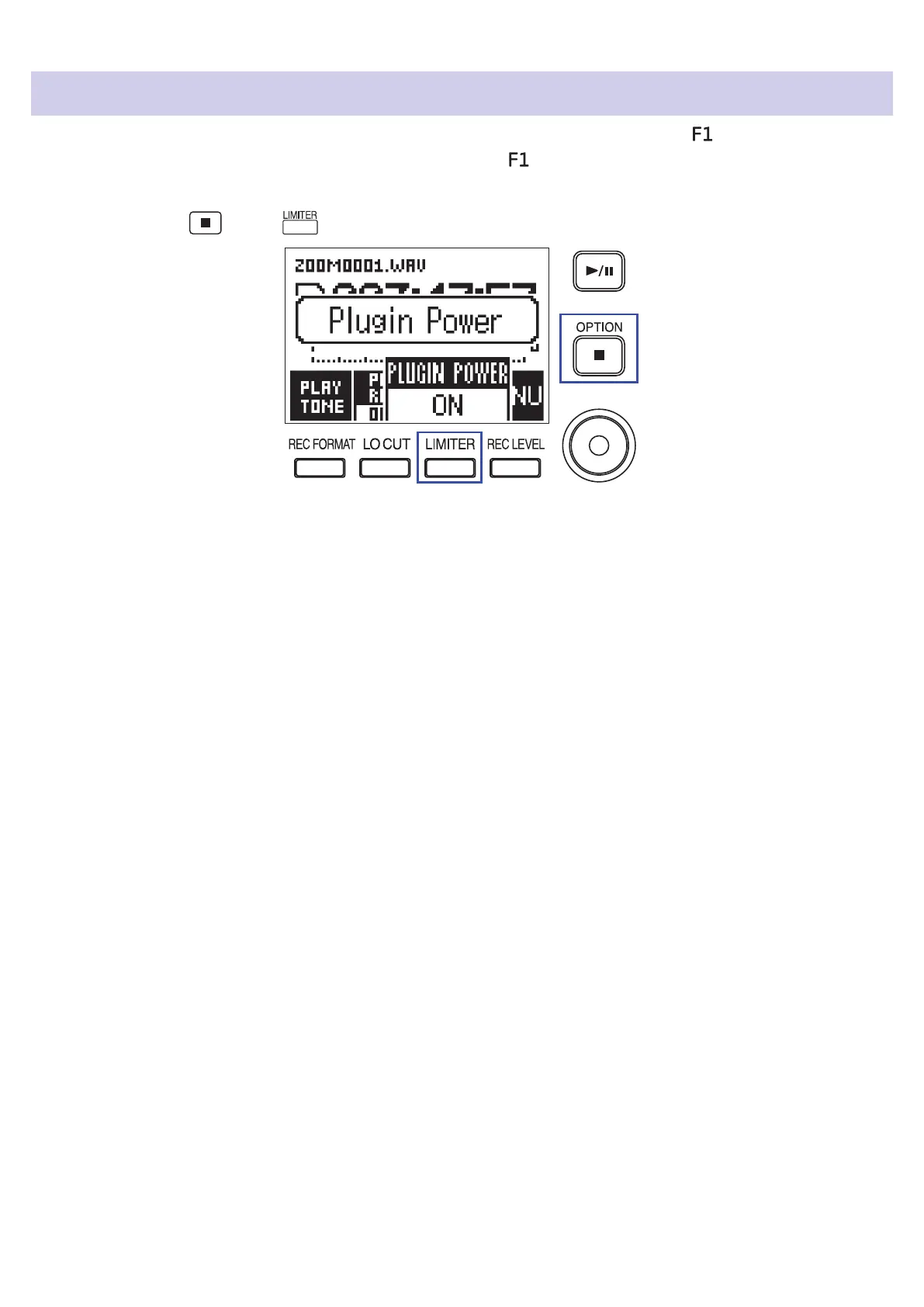

Setting plugin power
Use this setting when a mic that is compatible with plug-in power is connected to the MIC/LINE IN jack or
to the MIC/LINE input jack of a mic capsule connected to the
.
1.
While pressing , press to turn it ON.
24

Zoom F1 Specifications

General

Type	Field Recorder
Audio Formats	WAV, MP3
Max Sample Rate/Resolution	96 kHz / 24-Bit
Power	2 x AAA Batteries, USB Bus Power
Battery Life	Up to 10 hours
Simultaneous Recording Tracks	2
Built-In Microphone	No
Input Channels	2
Output Channels	1
USB	1 x Micro-USB
Recording Media	microSD/microSDHC cards (up to 32 GB)
Dimensions	64 x 79.8 x 34 mm
Display	Monochrome LCD
Line Input	1 x 1/8" (3.5 mm) TRS
Headphone Output	1 x 1/8" / 3.5 mm TRS
Microphone Input	1 x 1/8" (3.5 mm) TRS
