Zoom F1 User Manual

Names of parts
■

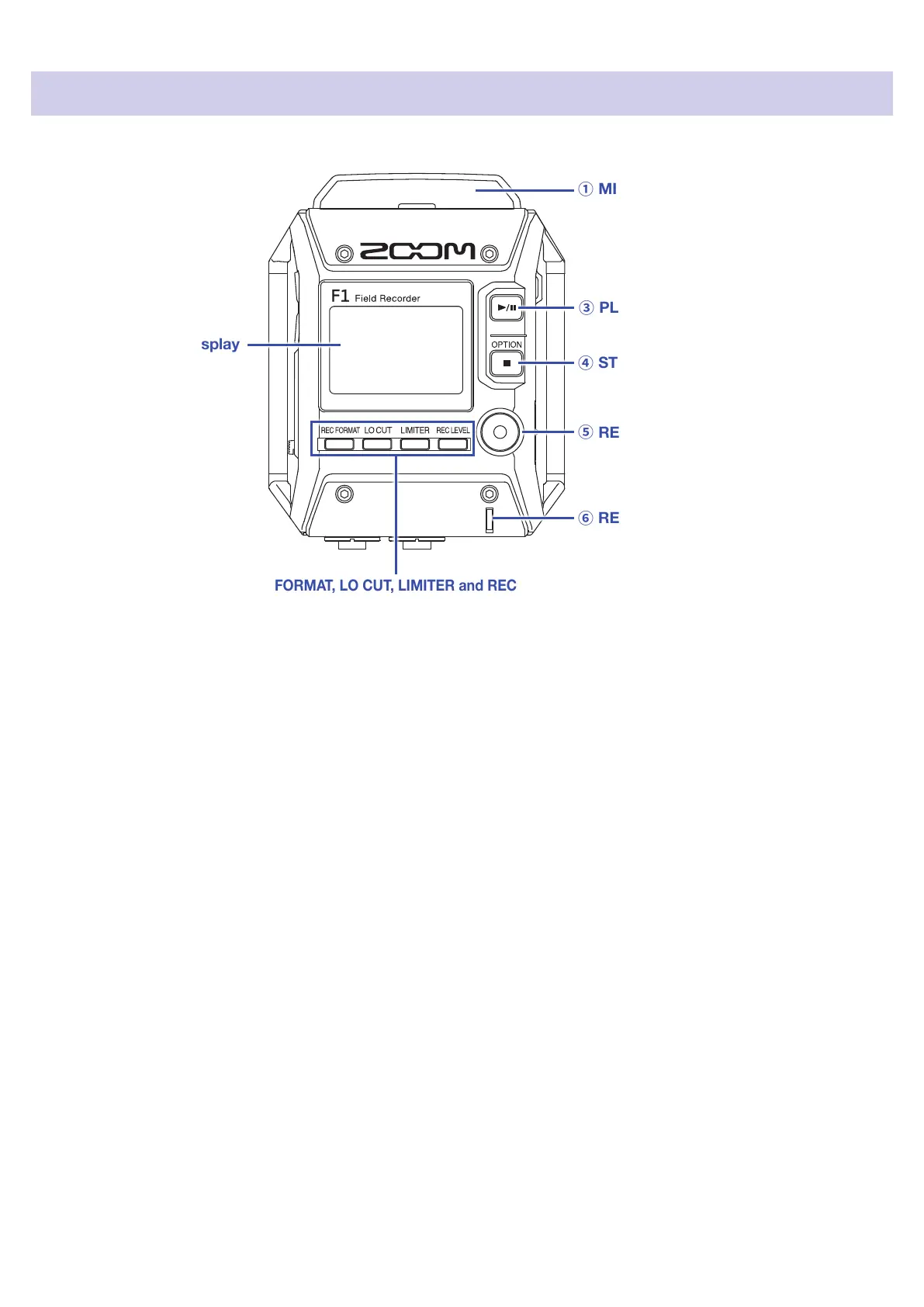

Front
②
Display
①
MIC IN connector
⑦
REC FORMAT, LO CUT, LIMITER and REC LEVEL buttons
③
PLAY/PAUSE button
④
STOP/OPTION button
⑤
REC button
⑥
REC LED
①
MIC IN connector
Connect a ZOOM mic capsule here.
②
Display
This shows various types of information.
③
PLAY/PAUSE button
Use this to start and pause playback of recorded les.
④
STOP/OPTION button
Use this to stop le recording/playback and to switch the functions of the function buttons.
⑤
REC button
Use this to start recording.
⑥
REC LED
This lights during recording. It blinks when the input sound level is high.
⑦
REC FORMAT, LO CUT, LIMITER and REC LEVEL buttons
Use these to operate the function buttons shown at the bottom of the display.
5

Zoom F1 Specifications

General

Type	Field Recorder
Audio Formats	WAV, MP3
Max Sample Rate/Resolution	96 kHz / 24-Bit
Power	2 x AAA Batteries, USB Bus Power
Battery Life	Up to 10 hours
Simultaneous Recording Tracks	2
Built-In Microphone	No
Input Channels	2
Output Channels	1
USB	1 x Micro-USB
Recording Media	microSD/microSDHC cards (up to 32 GB)
Dimensions	64 x 79.8 x 34 mm
Display	Monochrome LCD
Line Input	1 x 1/8" (3.5 mm) TRS
Headphone Output	1 x 1/8" / 3.5 mm TRS
Microphone Input	1 x 1/8" (3.5 mm) TRS
