ZOOM HD8/HD16
12

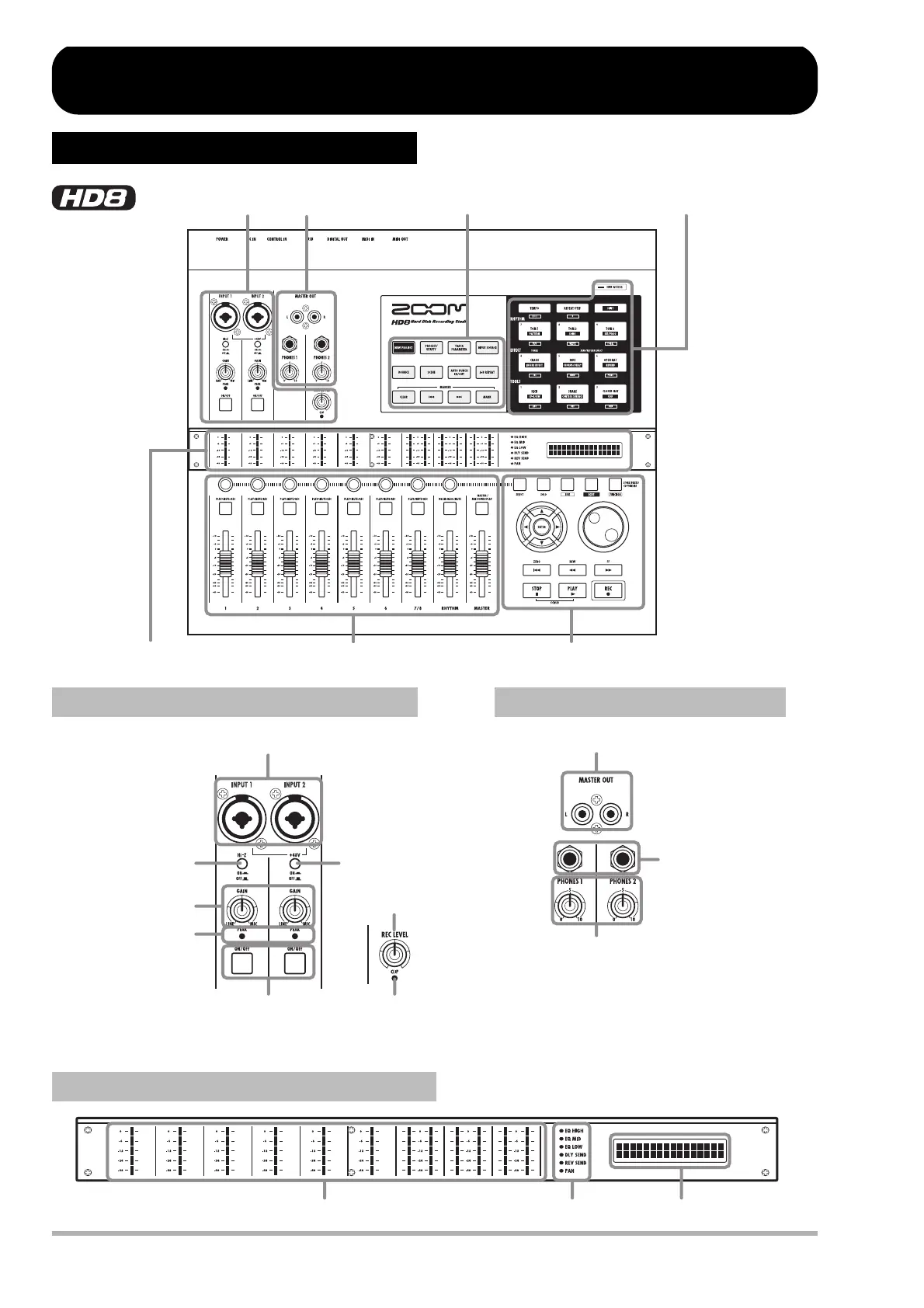

(1) Input section
(2) Output section
(5) Control section (6) Pad section
(3) Meter/display section
(4) Fader section
(7) Function/transport section
HD8 (1) Input section
HD8 (3) Meter/display section
HD8 (2) Output section
INPUT jacks 1, 2
MASTER OUT jacks
[PHONES] controls 1, 2
PHONES jacks 1, 2
[Hi-Z] switch
[PEAK] indicators 1, 2
[ON/OFF] keys
[+48V] switch
[REC LEVEL] control
[CLIP] indicator
Level meters (1 – 6, 7/8, [RHYTHM], [MASTER]) Parameter select indicators Display
[GAIN] controls 1, 2
Names of Parts
HD8 Top Panel
