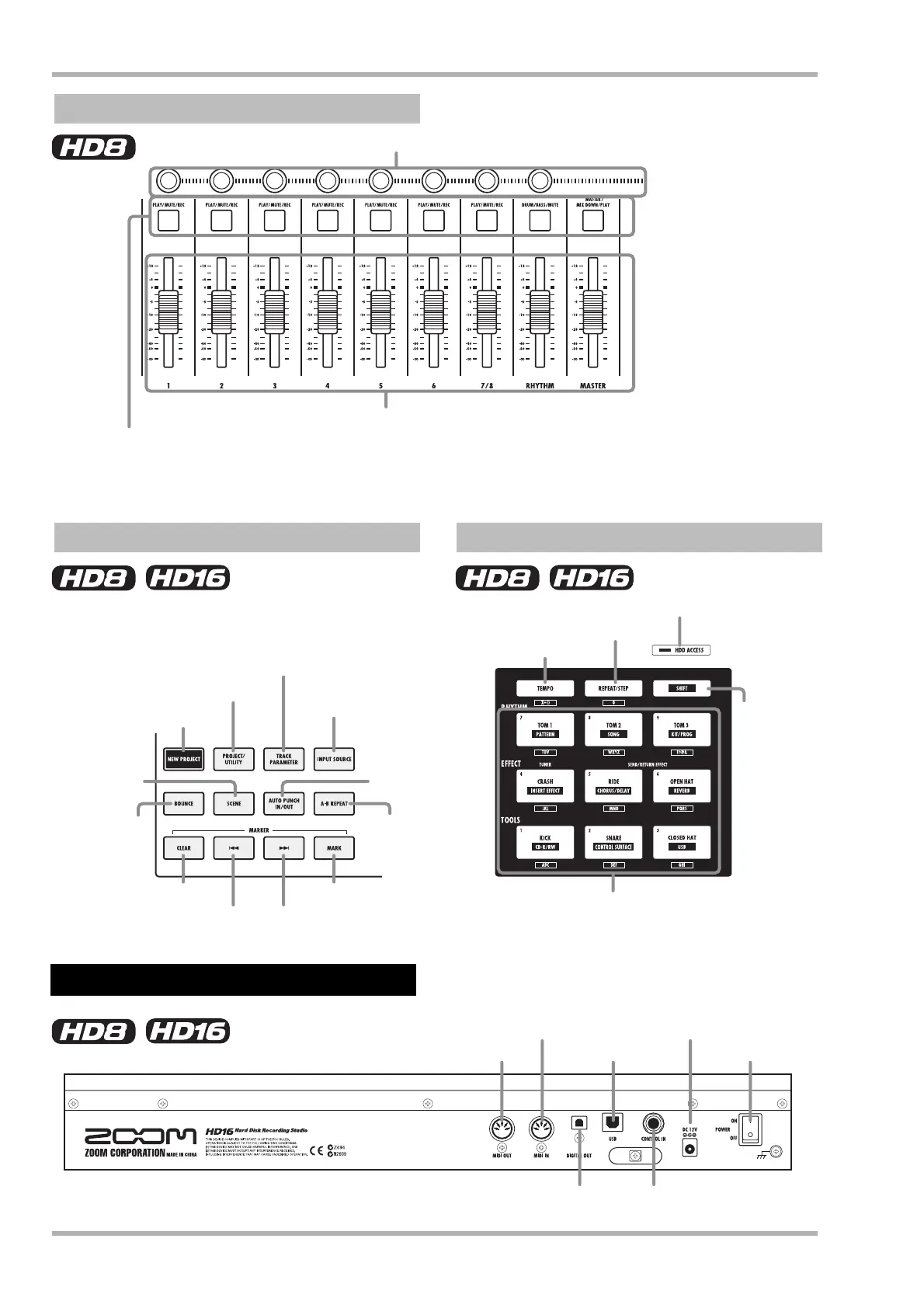

Names of Parts
ZOOM HD8/HD16
14
HD8 (4) Fader section
HD8/HD16 (5) Control section HD8/HD16 (6) Pad section
Parameter knobs
Faders (1 – 6, 7/8, [RHYTHM], [MASTER])
Status keys (1 – 6, 7/8, [RHYTHM], [MASTER])
[NEW PROJECT] key
[CLEAR] key
MARKER [U] key MARKER [I] key
[MARK] key
[INPUT SOURCE] key
[HDD ACCESS] indicator
[SHIFT] key
[TEMPO] key
[REPEAT/STEP] key
Pads 1 – 9
[A-B REPEAT] key
[AUTO PUNCH
IN/OUT] key
[BOUNCE] key
[SCENE] key
[PROJECT/UTILITY] key
[TRACK PARAMETER] key
MIDI OUT connector USB port
MIDI IN connector
DIGITAL OUT jack CONTROL IN jack
[POWER] switch
DC 12V jack
HD8/HD16 Rear Panel
