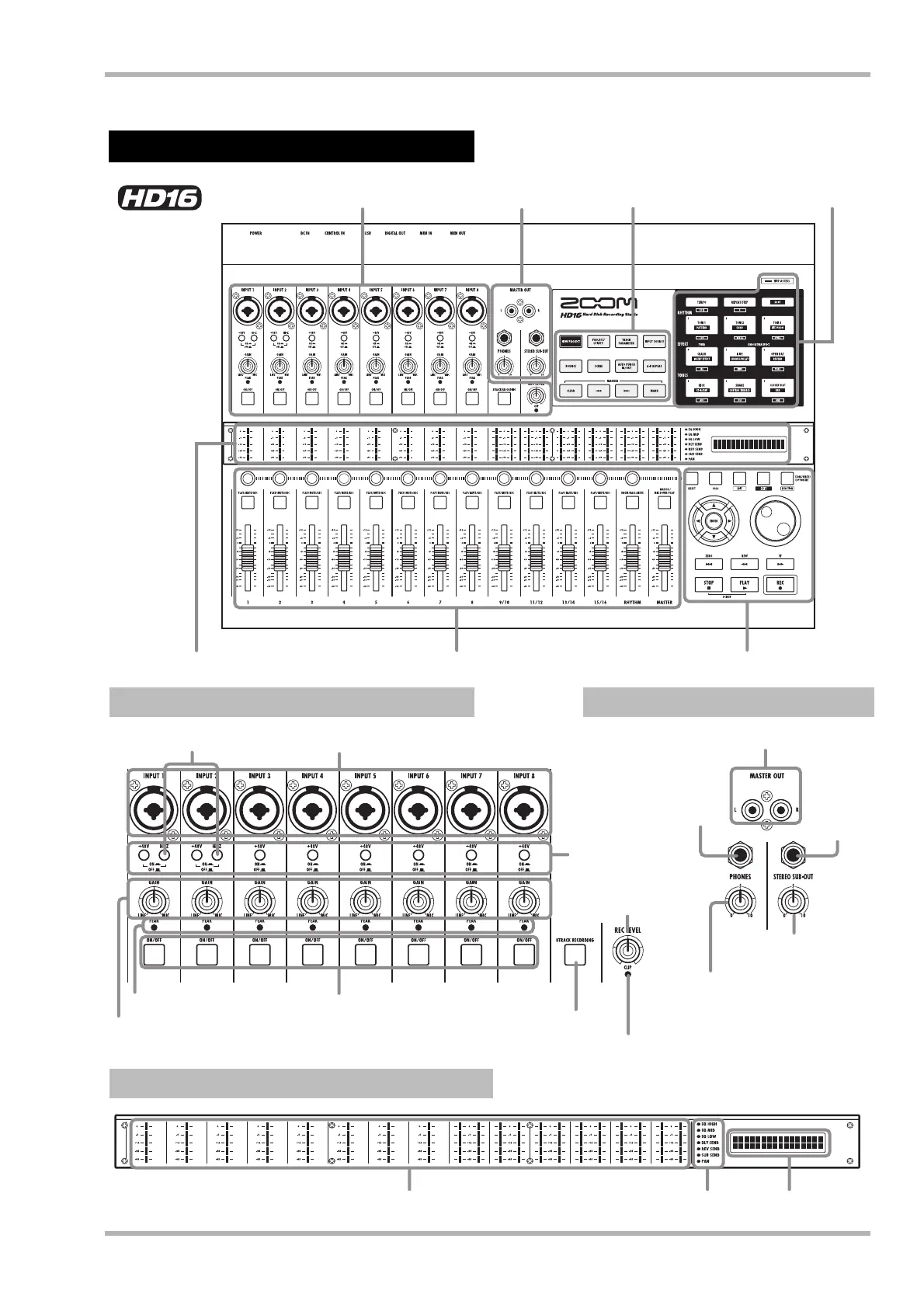

Names of Parts

ZOOM HD8/HD16

(1) Input section

(2) Output section

(5) Control section (6) Pad section

(3) Meter/display section

(4) Fader section

(7) Function/transport section

HD16 (1) Input section

HD16 (3) Meter/display section

HD16 (2) Output section

INPUT jacks 1 – 8

MASTER OUT jacks

PHONES jack

STEREO

SUB-OUT

jack

[PHONES] control

[STEREO

SUB-OUT] control

[Hi-Z] switches 1 – 2

[GAIN] controls 1 – 8

[REC LEVEL]

control

[CLIP] indicator

[8TRACK RECORDING] key

[+48V] switches

1 – 8

[ON/OFF] keys

[PEAK] indicators 1 – 8

Level meters (1 – 8, 9/10 – 15/16, [RHYTHM], [MASTER]) Parameter select indicators Display

HD16 Top Panel

Questions and Answers:

Need help?

Do you have a question about the Zoom HD16 and is the answer not in the manual?

Zoom HD16 Specifications

General

Tracks	16
Simultaneous Recording Tracks	8
Phantom Power	Yes
Built-in Effects	Yes
USB	Yes
Simultaneous Playback Tracks	16
Sampling Frequency	44.1kHz
A/D Conversion	24-bit
D/A Conversion	24-bit
Recording Format	WAV
Built-in Rhythm Patterns	Yes
USB Audio Interface	Yes
SD Card Slot	No
Input Channels	8
Output Channels	2
LCD Display	Yes
Type	Multitrack Recorder
Effects	Yes
Headphone Output	Yes
Inputs	8 XLR/TRS combo inputs
