360 Vision H7016 - Page 32

Chapter 2. Start H7016
2-15
2

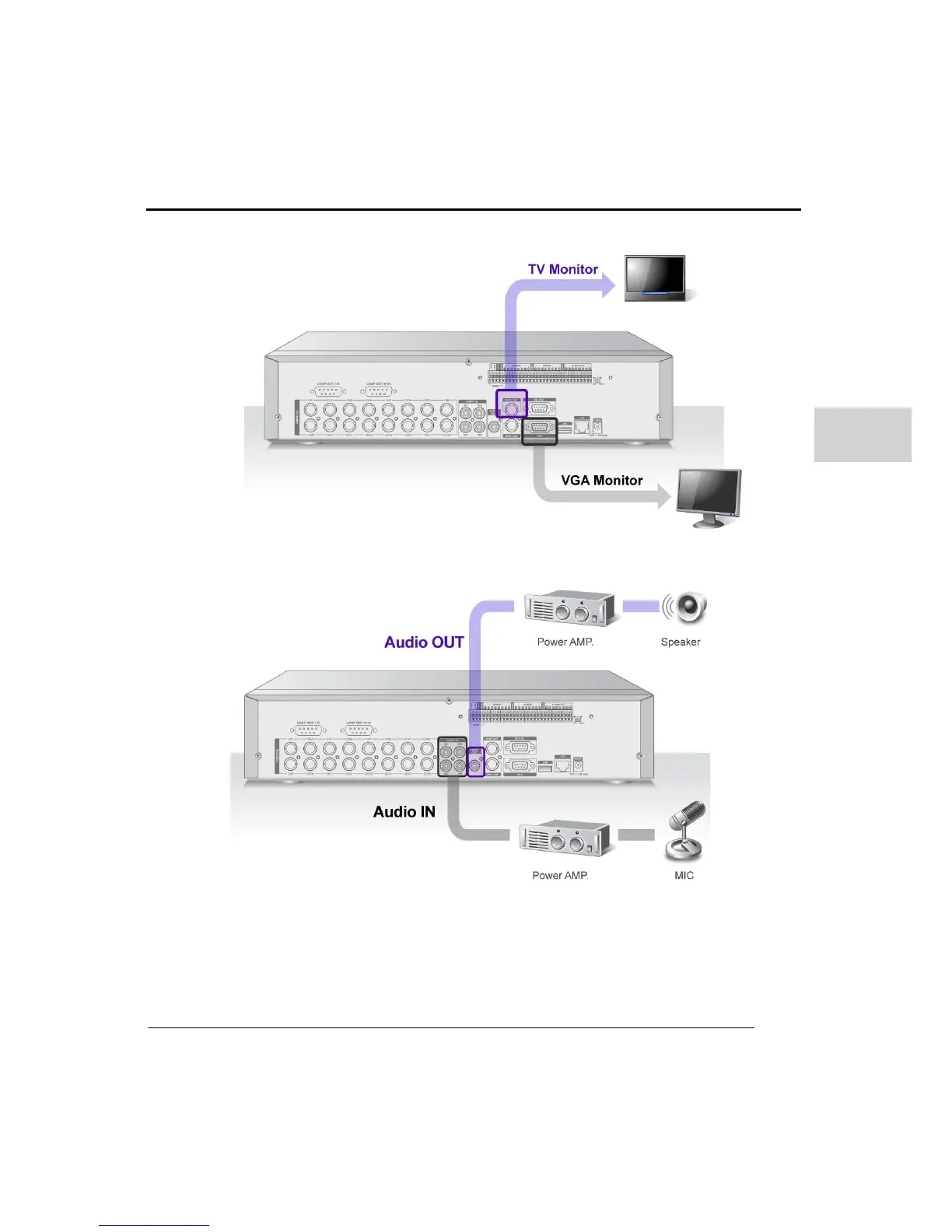

3) Connect to a monitor (VGA Monitor or CCTV Monitor)
Connect to the VGA port or/and the TV-OUT Port on rear panel of the product
4) Connection of Audio Devices
Connect to the Speaker to Audio OUT and Microphone to the Audio IN (use separate amplifiers)
